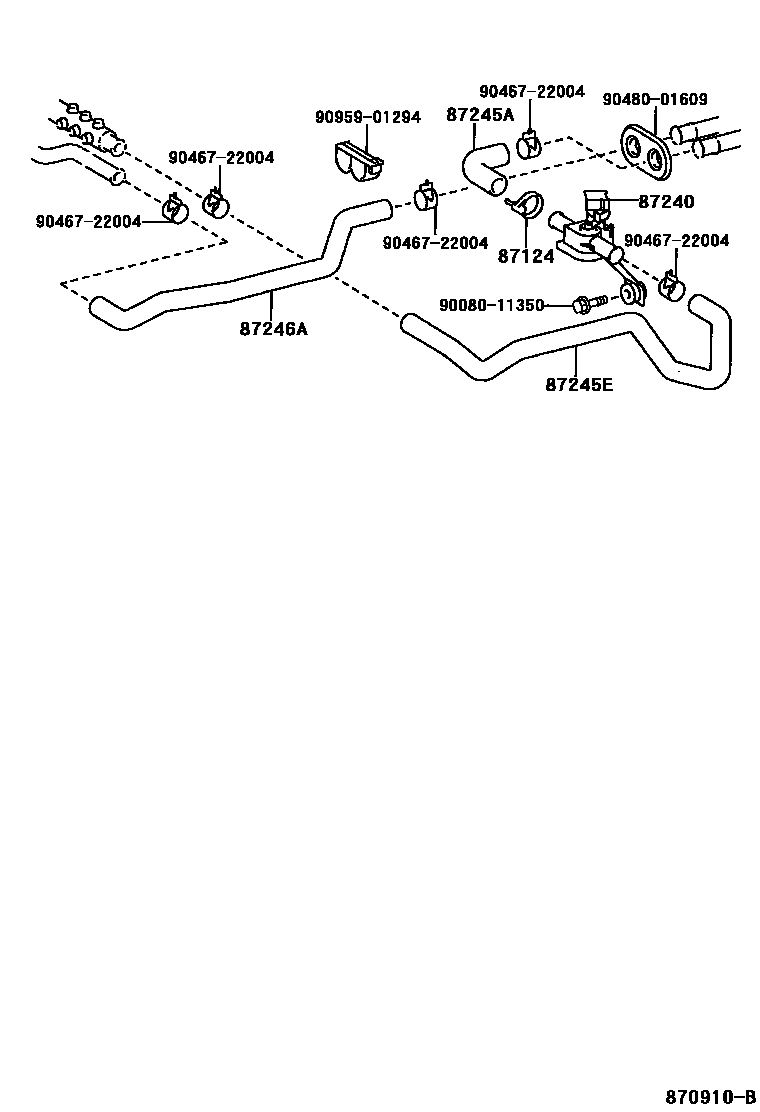

HEATING & AIR CONDITIONING - WATER PIPING

87124CLAMP, HEATER

main87124-28030iMCX10199503-199511

main90467-22004iMCX10199511

87240VALVE ASSY, HEATER WATER

main87240-07010iMCX10199503

87245AHOSE, HEATER WATER, INLET A

main87245-07050iMCX10199503

87245EHOSE, HEATER WATER, INLET E

main87245-07010iMCX10199709

main87245-07030iMCX10199503-199709

87246AHOSE, HEATER WATER, OUTLET A

main87245-07020iMCX10199709

main87245-07040iMCX10199503-199709

9008011350

main90080-11350

9046722004

main90467-22004

9048001609

main90480-01609

9095901294

main90959-01294

9 parts on this diagram · 1 diagram in section
