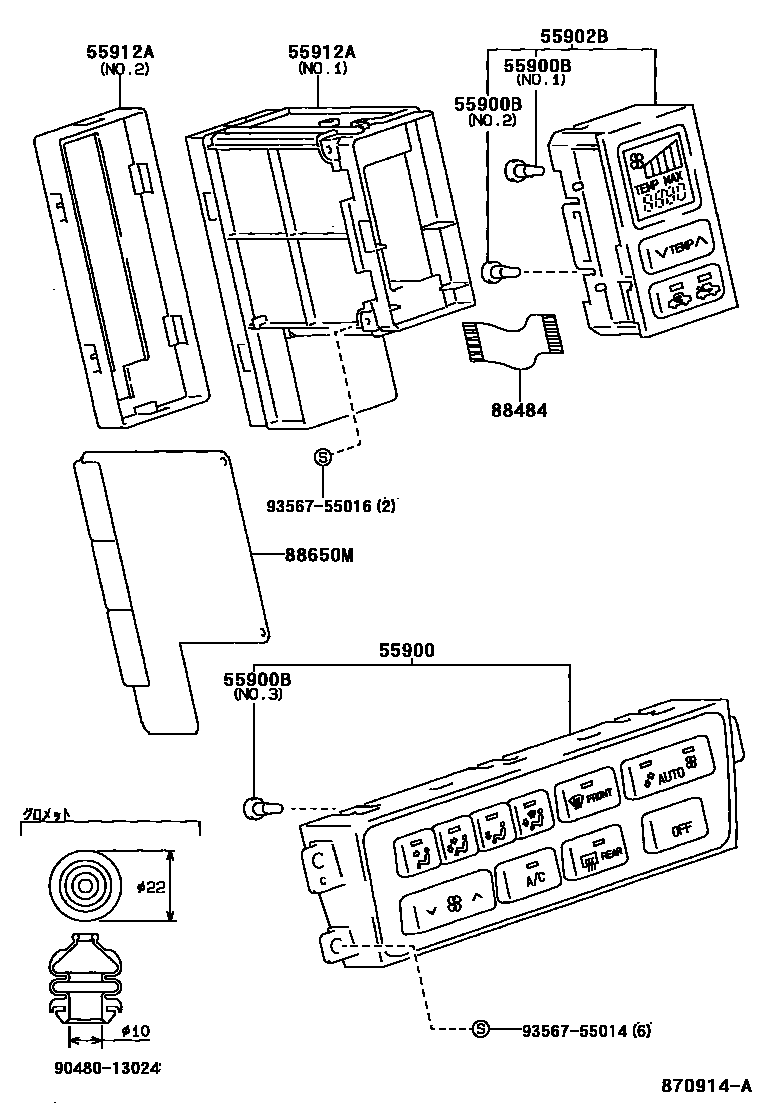

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1����-� 0002 1��� 0003 1�� ����

55900CONTROL ASSY, AIR CONDITIONER

main55900-41060iMCX10199503-199709

main55900-41100iMCX10199709

55900BBULB, AIR CONDITIONER CONTROL

main84999-60470iMCX10199503

main84999-60480iMCX10199503

main84999-60620×4iMCX10199503

55902BCONTROL SUB-ASSY, HEATER

main55902-41010iMCX10199503

55912AHOUSING, HEATER CONTROL

main55912-41010iMCX10199503

main55912-41020iMCX10199503

88484WIRE, COOLER, NO.1

main88484-41020iMCX10199503

88650MCOMPUTER ASSY, AIR CONDITIONER

main88650-41020iMCX10199503-199709

main88650-41050iMCX10199709

9048013024

main90480-13024

9356755014

main93567-55014

9356755016

main93567-55016

9 parts on this diagram · 3 diagrams in section
