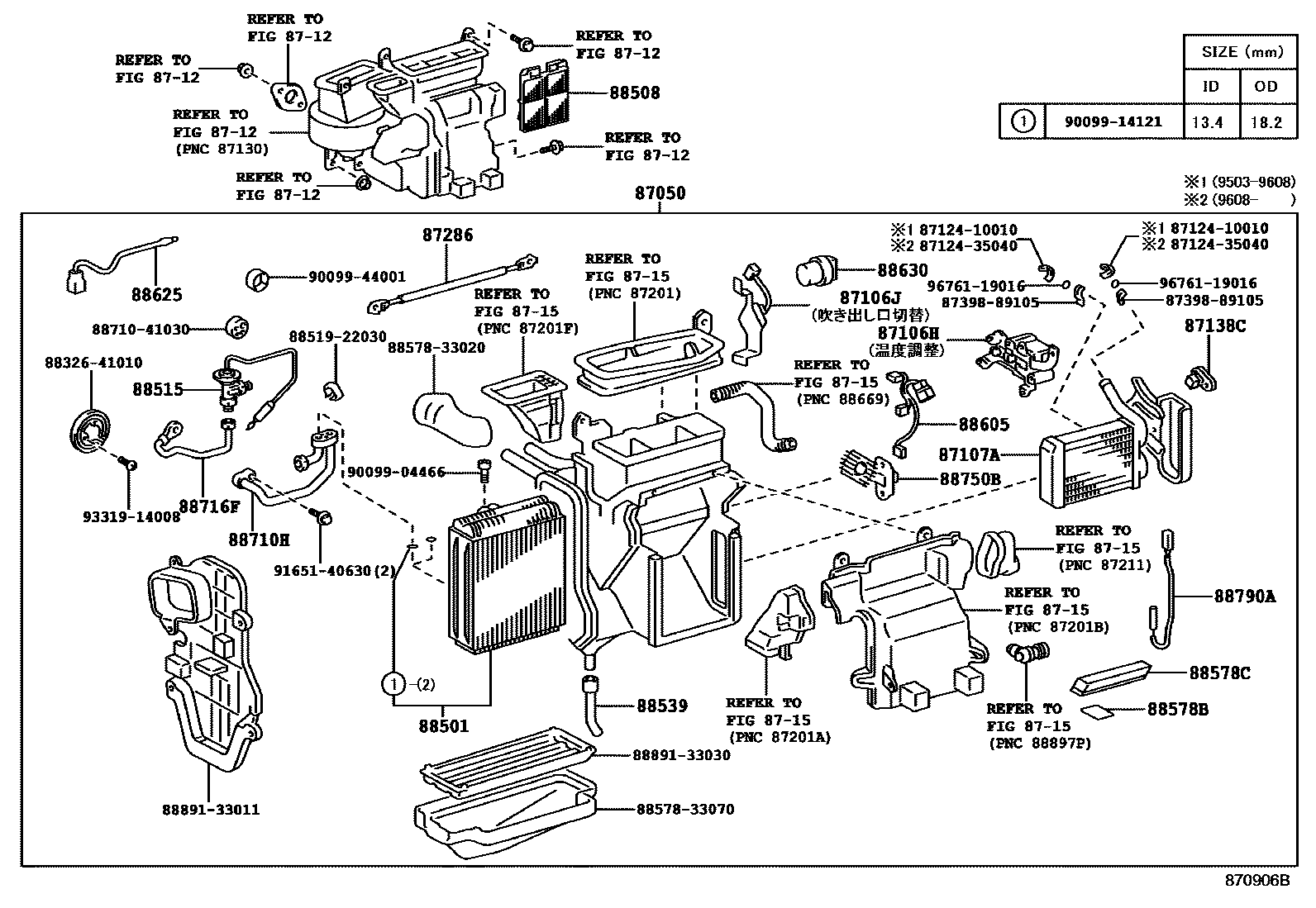

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1

87050RADIATOR ASSY, AIR CONDITIONER

main87050-41010iMCX10199503-199608

main87050-41011iMCX10199608-199709

main87050-41012iMCX10199709-200002

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-41010iMCX10199503-200002

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-33010iMCX10199503-200002

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33010iMCX10199503-199608

main87107-33050iMCX10199608-200002

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

87138CRESISTOR, BLOWER

main87138-50010iMCX10199503-200002

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87286CABLE, CONTROL

main87286-41010iMCX10199503-200002

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-41010iMCX10199503-200002

88508FILTER SUB-ASSY, CLEAN AIR

main88880-33010iMCX10199503-199709

main88880-33060iMCX10199709-200002

88515VALVE, COOLER EXPANSION

main88515-41010iMCX10199503-199709

main88515-41020iMCX10199709-200002

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-33020iMCX10199503-199602

main88539-33030iMCX10199602-200002

88578BPACKING, COOLING UNIT, NO.1

main88578-41010iMCX10199503-200002

88578CPACKING, COOLING UNIT, NO.2

main88578-41020iMCX10199503-199709

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-33080iMCX10199709-200002

main88605-41010iMCX10199503-199709

88625THERMISTOR, COOLER, NO.1

main88625-33060iMCX10199503-200002

88630RELAY ASSY, COOLER

main88630-28040iMCX10199503-199709

88710HTUBE & ACCESSORY ASSY, AIR CONDITIONER

main88710-41020iMCX10199503-199709

main88710-41040iMCX10199709-200002

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-41010iMCX10199503-199709

main88716-41020iMCX10199709-200002

88750BTRANSISTOR ASSY, BLOWER RESISTOR

main88750-33010iMCX10199503-199709

88790ASENSOR, THERMO

main88790-33010iMCX10199503-199608

main88790-41011iMCX10199608-199709

8712410010CLAMP, HEATER

main87124-10010

8712435040CLAMP, HEATER

main87124-35040

8739889105BAND ASSY (FOR COMBUSTION HEATER)

main87398-89105

8832641010PLATE, COOLER COMPRESSOR BOTTOM

main88326-41010

8851922030HOLDER, REMOTE BULB

main88519-22030

8857833020PAKING, COOLER AIR DUCT

main88578-33020

8857833070PAKING, COOLER AIR DUCT

main88578-33070

8871041030TUBE ASSY, AIR CONDITIONER

main88710-41030

8889133011PACKING (FOR COOLER)

main88891-33011

8889133030PACKING (FOR COOLER)

main88891-33030

9009904466

main90099-04466

9009914121

main90099-14121

9009944001

main90099-44001

9165140630

main91651-40630

9331914008

main93319-14008

9676119016

main96761-19016

37 parts on this diagram · 2 diagrams in section
