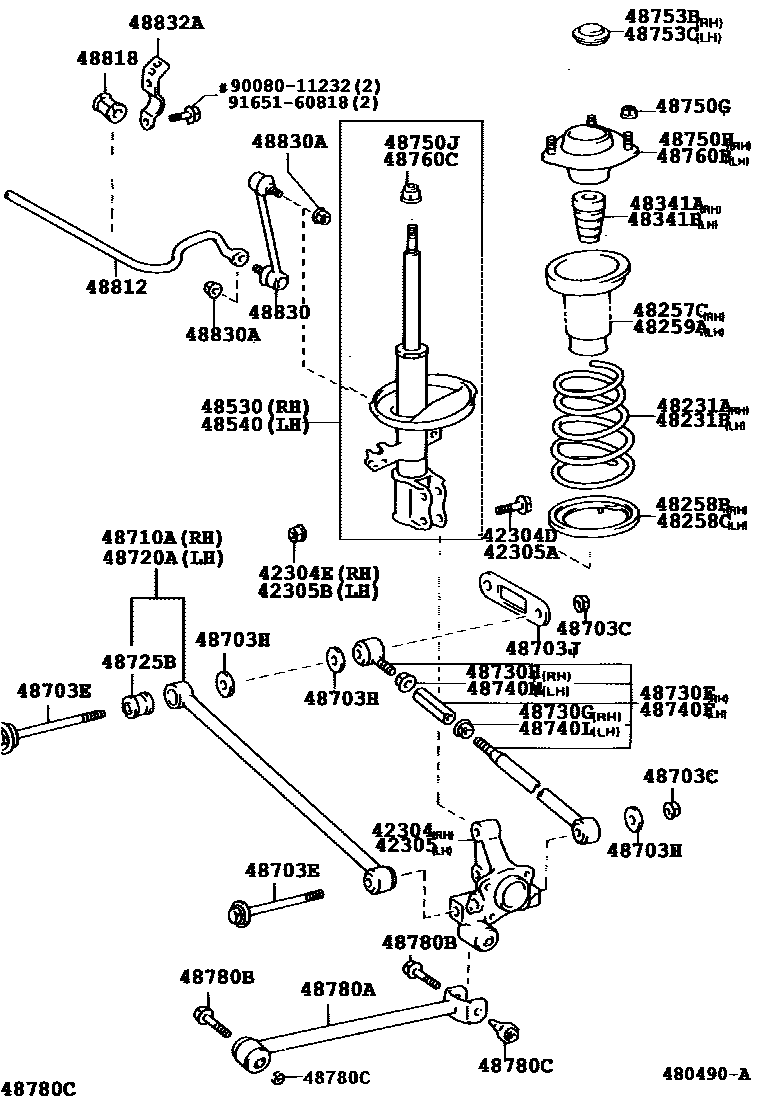

REAR SPRING & SHOCK ABSORBER

42304CARRIER SUB-ASSY, REAR AXLE, RH

main42304-06020i199503-199608

42304DBOLT (FOR REAR AXLE CARRIER RH)

main90105-15001×2i199503

42304ENUT (FOR REAR AXLE CARRIER RH)

main90179-15001×2i199503

42305CARRIER SUB-ASSY, REAR AXLE, LH

main42305-06020i199503-199608

42305ABOLT (FOR REAR AXLE CARRIER LH)

main90105-15001×2i199503

42305BNUT (FOR REAR AXLE CARRIER LH)

main90179-15001×2i199503

48231ASPRING, COIL, REAR RH

main48231-06010i199608

main48231-AC020i199503-199608

48231BSPRING, COIL, REAR LH

main48231-06010i199608

main48231-AC020i199503-199608

48257CINSULATOR, REAR COIL SPRING, UPPER RH

main48257-32060i199503

48258BINSULATOR, REAR COIL SPRING, LOWER RH

main48258-06010i199503

48258CINSULATOR, REAR COIL SPRING, LOWER LH

main48258-06010i199503

48259AINSULATOR, REAR COIL SPRING, UPPER LH

main48259-32020i199503

48341ABUMPER, REAR SPRING, NO.1 RH

main48341-06011i199503-199708

main48341-06012i199708

48341BBUMPER, REAR SPRING, NO.1 LH

main48341-06011i199503-199708

main48341-06012i199708

48530ABSORBER ASSY, SHOCK, REAR RH

main48530-09100i199503-199608

main48530-09170i199608

48540ABSORBER ASSY, SHOCK, REAR LH

main48540-09090i199503-199608

main48540-09150i199608

48703CNUT(FOR REAR SUSPENSION ARM)

main90179-14019×4i199503

48703EBOLT(FOR REAR SUSPENSION ARM)

main90901-09001×2i199503

main90901-19001×2i199503

48703HWASHER, NO.1(FOR REAR SUSPENSION ARM)

main90201-14017×6i199503

48703JWASHER, NO.2(FOR REAR SUSPENSION ARM)

main48715-06010i199608

main48715-07010i199503-199608

48710AARM ASSY, REAR SUSPENSION, NO.1 RH

main48710-41010i199503-199608

main48710-AA010i199608

48720AARM ASSY, REAR SUSPENSION, NO.1 LH

main48710-41010i199503-199608

main48710-AA010i199608

48725BBUSH, REAR SUSPENSION ARM, NO.1

main48725-32150×2i199503-199608

48730FARM ASSY, REAR SUSPENSION, NO.2 RH

main48730-41010i199503-199608

main48730-AA020i199608

48730GNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 RH)

main90179-18016i199503-199608

48730HNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 RH)

main90179-18017i199503-199608

48740FARM ASSY, REAR SUSPENSION, NO.2 LH

main48740-41010i199503-199608

main48740-AA020i199608

48740LNUT, NO.1(FOR REAR SUSPENSION ARM NO.2 LH)

main90179-18017i199503-199608

48740MNUT, NO.2(FOR ARM ASSY, REAR SUSPENSION, NO.2 LH)

main90179-16022i199503-199608

48750GNUT(FOR REAR SUSPENSION SUPPORT)

main90179-08122×6i199503

48750HSUPPORT ASSY, REAR SUSPENSION, RH

main48750-33010i199503-199508

main48750-33011i199508

48750JNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER RH)

main90177-14001i199608

main94182-11400i199503-199608

48753BCOVER, REAR SUSPENSION SUPOPORT, NO.1 RH

main48753-32041i199503

48753CCOVER, REAR SUSPENSION SUPOPORT, NO.1 LH

main48753-32041i199503

48760BSUPPORT ASSY REAR SUSPENSION, LH

main48760-33010i199503-199508

main48760-33011i199508

48760CNUT(FOR REAR SUPPORT TO REAR SHOCK ABSORBER LH)

main90177-14001i199608

main94182-11400i199503-199608

48780AROD ASSY, STRUT, REAR

main48780-33010×2i199503

48780BBOLT(FOR STRUT ROD)

main90080-11133×4i199702

main90119-12131×4i199702

48780CNUT(FOR STRUT ROD)

main90179-12062×2i199503-199608

CARRIER SIDE

main90179-12063×2i199503

BODY SIDE

main90179-12091×2i199608

CARRIER SIDE

48812BAR, STABILIZER, REAR

main48812-AA010i199608

main48812-AC010i199503-199608

48818BUSH, STABILIZER, REAR

main48818-06041×2i199503-199608

main48818-06090×2i199608

48830LINK ASSY, REAR STABILIZER

main48830-06020×2i199608

main48830-33010×2i199503-199608

48830ANUT(FOR REAR STABILIZER LINK)

main90179-10054×4i199503-199608

main90179-10183×4i199608

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-06010×2i199503-199608

main48832-AA010×2i199608

9008011232

main90080-11232

9165160818

main91651-60818

46 parts on this diagram · 1 diagram in section
