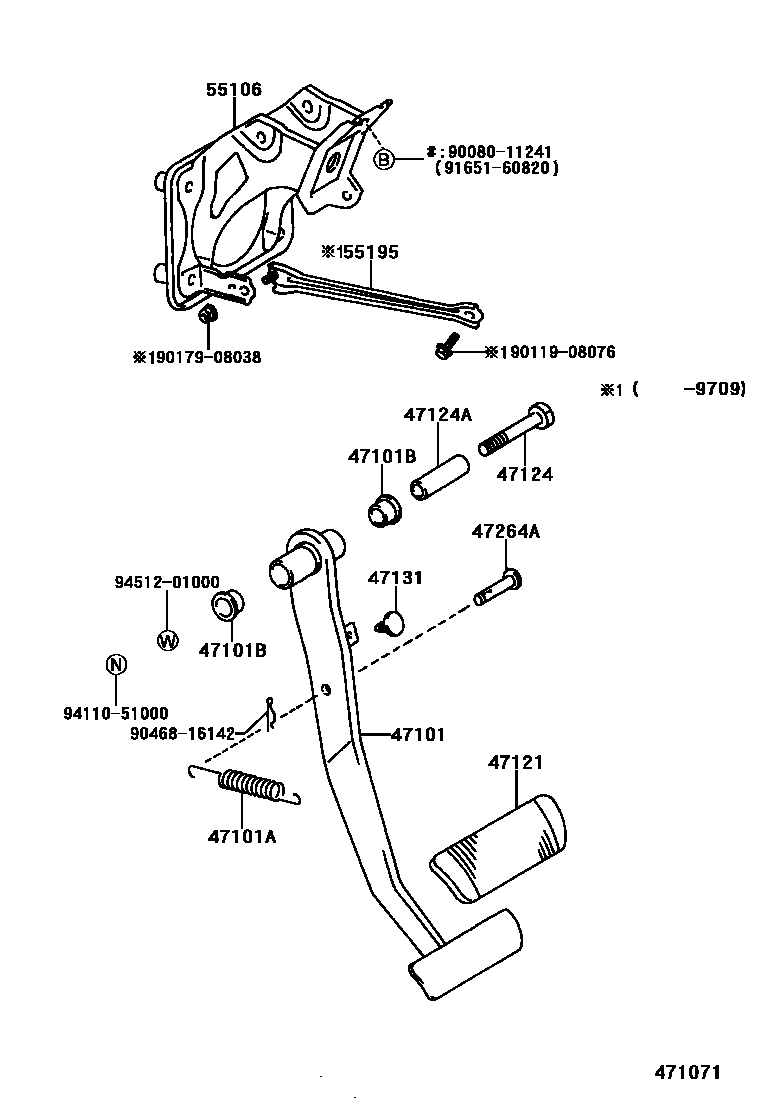

BRAKE PEDAL & BRACKET

47101PEDAL SUB-ASSY, BRAKE

main47101-07010iMCX10199709

main47101-AC010iMCX10199503-199709

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14024iMCX10199503

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iMCX10199503

47121PAD, BRAKE PEDAL

main47121-AC010iMCX10199503

47124SHAFT, BRAKE PEDAL

main90101-10039iMCX10199503

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iMCX10199503

47131CUSHION(FOR STOP LAMP SWITCH)

main90541-06036iMCX10199503

47264APIN(FOR PUSH ROD)

main47148-12050iMCX10199608-199709

main47148-33010iMCX10199709

main90249-08256iMCX10199503-199608

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-07020iMCX10199709

main55106-33050iMCX10199709

main55106-41020iMCX10199701-199709

main55106-AC020iMCX10199503-199701

main55106-AC020iMCX10199701-199709

55195STAY, PEDAL BRACKET, NO.1

main55195-AC020iMCX10199503-199709

9008011241

main90080-11241

9011908076

main90119-08076

9017908038

main90179-08038

9046816142

main90468-16142

9165160820

main91651-60820

9411051000

main94110-51000

9451201000

main94512-01000

17 parts on this diagram · 1 diagram in section
