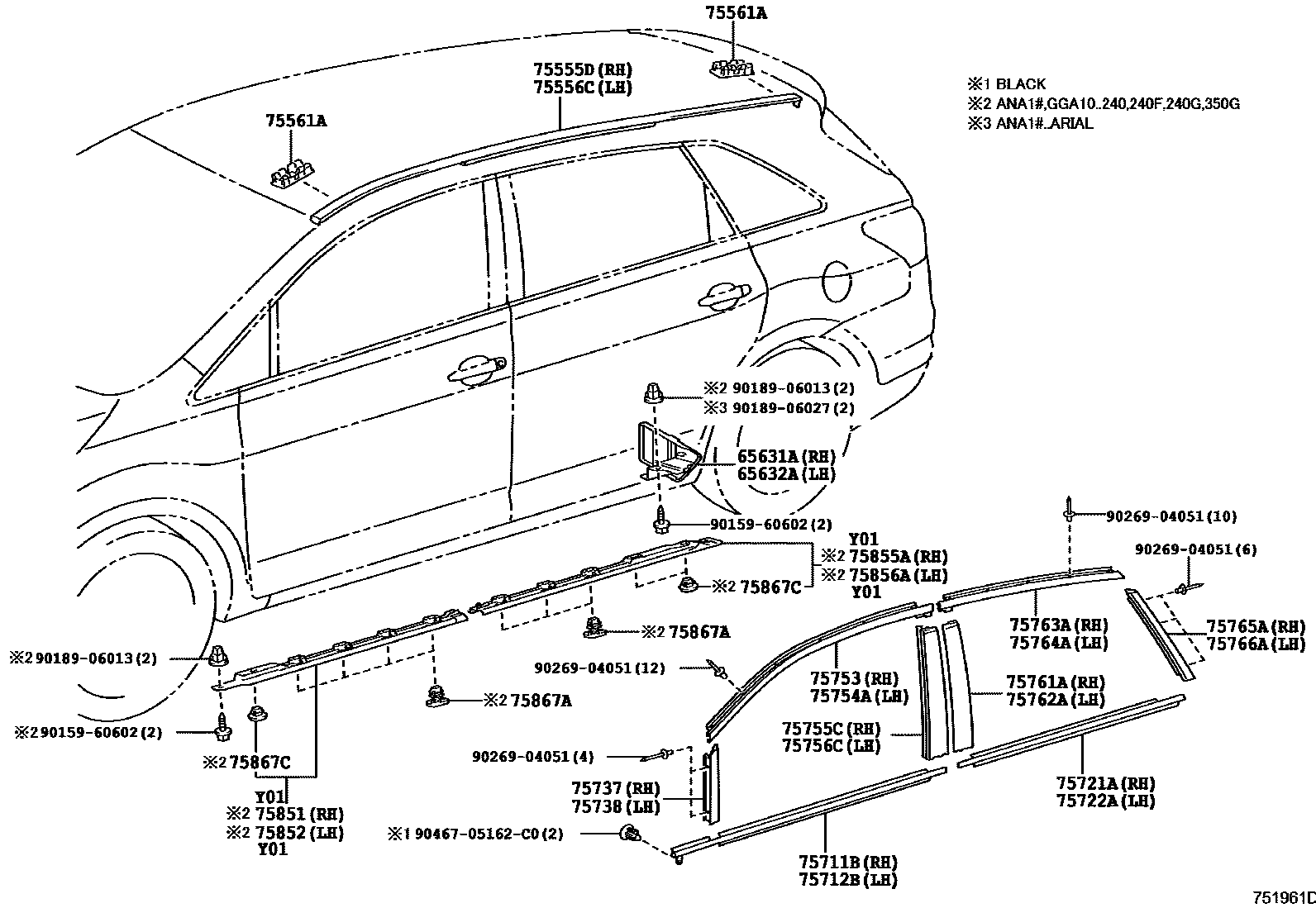

SIDE MOULDING

65631APLATE, REAR WHEEL HOUSE, FRONT RH

main65631-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

65632APLATE, REAR WHEEL HOUSE, FRONT LH

main65632-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75555DMOULDING, ROOF DRIP SIDE FINISH, CENTER RH

main75555-72010-B0iANA1#,GGA10..CBU201102-201310

GRAY,070 ,1F7 ,8S7

main75555-72010-B1iANA1#..ARIAL200902-201102

BLACK,209 ,3R0 ,3R3 ,781 ,8S6

75556CMOULDING, ROOF DRIP SIDE FINISH, CENTER LH

main75556-72010-B0iANA1#,GGA10..CBU201102-201310

GRAY,070 ,1F7 ,8S7

main75556-72010-B1iANA1#..ARIAL200902-201102

BLACK,209 ,3R0 ,3R3 ,781 ,8S6

75561ACLIP, ROOF DRIP SIDE FINISH MOULDING

main75561-33030×4iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75711BMOULDING, FRONT DOOR BELT, RH

main75711-72010iANA1#,GGA10..240,240G,350G,ARIAL201102

75712BMOULDING, FRONT DOOR BELT, LH

main75712-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75721AMOULDING, REAR DOOR BELT, RH

main75721-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75722AMOULDING, REAR DOOR BELT, LH

main75722-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75737MOULDING, FRONT DOOR WINDOW FRAME, FRONT RH

main75751-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75738MOULDING, FRONT DOOR WINDOW FRAME, FRONT LH

main75752-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH

main75753-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH

main75754-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH

main75755-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH

main75756-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH

main75707-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH

main75708-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH

main75763-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH

main75764-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH

main75765-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH

main75766-72010iANA1#,GGA10..240,240G,350G,ARIAL200709-201102

75851MOULDING, ROCKER PANEL, RH

main75851-72010iANA1#,GGA10..240,240G,350G200709-201102

75852MOULDING, ROCKER PANEL, LH

main75852-72010iANA1#,GGA10..240,240G,350G200709-201102

75855AMOULDING, ROCKER PANEL, REAR RH

main75853-72010iANA1#,GGA10..240,240G,350G200709-201102

75856AMOULDING, ROCKER PANEL, REAR LH

main75854-72010iANA1#,GGA10..240,240G,350G200709-201102

75867ACLIP, ROCKER PANEL MOULDING

main76924-47010×14iANA1#,GGA10..CBU200709-200806

main76924-72010×14iANA1#,GGA10..240,240G,350G200807-201102

75867CCLIP, ROCKER PANEL MOULDING

main76924-12030×6iANA1#,GGA10..240,240G,350G200709-201102

9015960602

main90159-60602

9018906013

main90189-06013

9018906027

main90189-06027

9026904051

main90269-04051

9046705162C0

main90467-05162C0

32 parts on this diagram · 1 diagram in section
