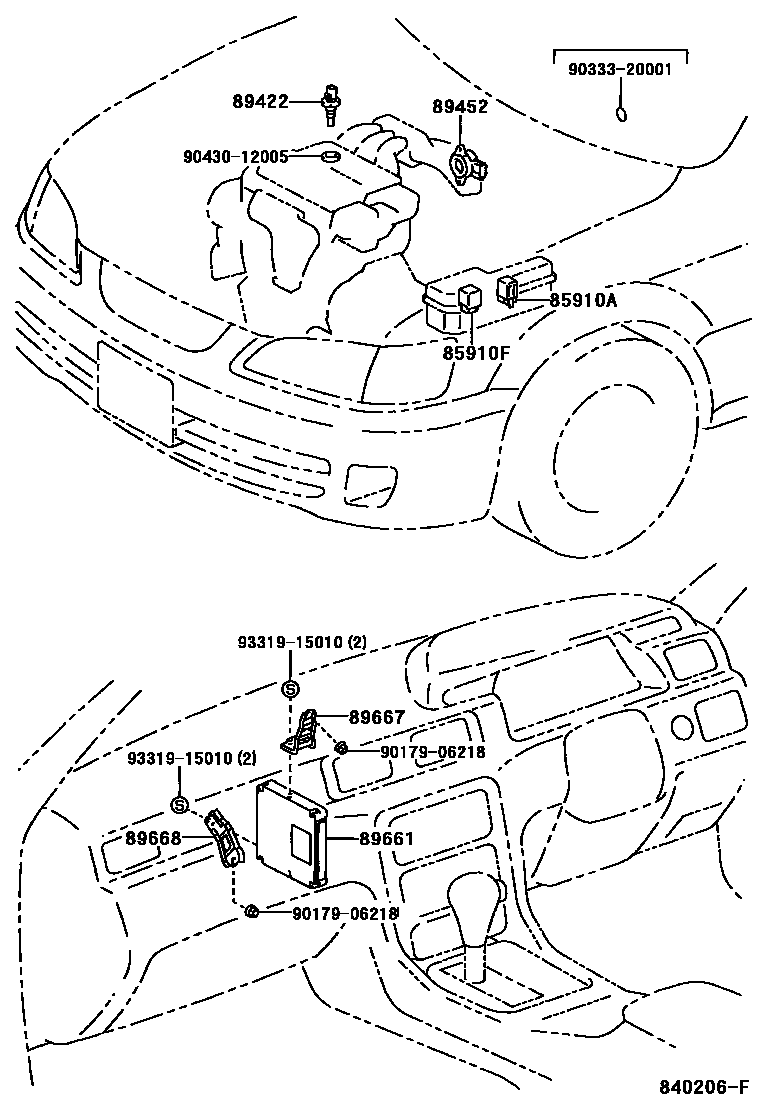

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1

85910ARELAY ASSY, CIRCUIT OPENING (FOR EFI)

main90987-02012iMCV2#,SXV2#199704

85910FRELAY, COMPUTER (FOR EFI)

main90987-02012iMCV2#,SXV2#199704

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iSXV2#199704

main89422-35010iMCV2#199704

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-33030iSXV2#199704-200005

main89452-33040iMCV2#199704-200005

89661COMPUTER, ENGINE CONTROL

main89661-3T180iMCV20199704-199908

main89661-3T190iMCV21199704-199808

main89661-3T200iMCV21199704-199808

main89661-3T250iSXV20199704

main89661-3T350iSXV25199706-199908

main89661-3T360iMCV25199706-199808

main89661-3T480iSXV25199908

main89661-3T490iMCV21199808

main89661-3T500iMCV25199808

main89666-33130iMCV20199908

89667BRACKET, ENGINE CONTROL COMPUTER

main89667-33070iMCV21,25,SXV2#199908

main89667-33100iMCV20199908

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-33070iMCV2#,SXV2#199704-199908

main89668-33120iMCV20199908

9017906218

main90179-06218

9033320001

main90333-20001

9043012005

main90430-12005

9331915010

main93319-15010

11 parts on this diagram · 2 diagrams in section
