SEAT BELT & CHILD RESTRAINT SEAT

73178ACAP, SEAT BELT ANCHOR COVER

main73178-33010-B0iMCV2#,SXV2#199704-199908

LT.GRAY,TRIM1#

main73178-33010-B0iMCV21,25,SXV2#199908-200008

LT.GRAY,TRIM2#

main73178-33010-G0iMCV2#,SXV2#199704-200008

SAGE,TRIM6#

main73178-33020-B6iMCV21,25,SXV2#200008

LT.GRAY,TRIM2#

main73178-33020-G0iMCV2#,SXV2#200008

SAGE,TRIM6#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-60020-B1iMCV2#,SXV2#199808-199908

LT.GRAY,TRIM1#

main73200-60020-B1iMCV21,25,SXV2#199908

LT.GRAY,TRIM2#

main73200-60020-G0iMCV2#,SXV2#199808

SAGE,TRIM6#

main73200-AA010-B1iMCV2#,SXV2#199704-199808

LT.GRAY,TRIM1#

main73200-AA010-G1iMCV2#,SXV2#199704-199808

SAGE,TRIM6#

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-33140-B0iMCV2#,SXV2#199704-199808

BLUISH GRAY,TRIM1#

main73210-33140-G0iMCV2#,SXV2#199704-199808

DARK AGATE,TRIM6#

main73210-33141-B0iMCV2#,SXV2#199808-199908

BLUISH GRAY,TRIM1#

main73210-33141-C0iMCV21,25,SXV2#199908-200008

BLACK,TRIM2#

main73210-33141-G0iMCV2#,SXV2#199808-200008

DARK AGATE,TRIM6#

main73210-33270-C0iMCV21,25,SXV2#200008

BLACK,TRIM2#

main73210-33270-G0iMCV2#,SXV2#200008

AGATE,TRIM6#

73219STOPPER, TONGUE PLATE

main73219-33010iMCV2#,SXV2#200009-200112

main73219-33020iMCV2#,SXV2#200009-200112

main73219-33030iMCV2#,SXV2#200009-200112

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-33140-B0iMCV2#,SXV2#199704-199808

BLUISH GRAY,TRIM1#

main73220-33140-G0iMCV2#,SXV2#199704-199808

DARK AGATE,TRIM6#

main73220-33141-B0iMCV2#,SXV2#199808-199908

BLUISH GRAY,TRIM1#

main73220-33141-C0iMCV21,25,SXV2#199908-200008

BLACK,TRIM2#

main73220-33141-G0iMCV2#,SXV2#199808-200008

DARK AGATE,TRIM6#

main73220-33250-C0iMCV21,25,SXV2#200008

BLACK,TRIM2#

main73220-33250-G0iMCV2#,SXV2#200008

AGATE,TRIM6#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-33190-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main73230-33190-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73230-33190-G0iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

73237ACOVER, SHOULDER BELT ANCHOR

main73237-AA010-B0iMCV2#,SXV2#199704-199908

LT.GRAY,TRIM1#

main73237-AA010-B0iMCV21,25,SXV2#199908

LT.GRAY,TRIM2#

main73237-AA010-G0iMCV2#,SXV2#199704

SAGE,TRIM6#

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-33010-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main73240-33010-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73240-33010-G0iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

73350CBELT ASSY, REAR SEAT, OUTER CENTER

main73350-33080-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main73350-33080-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73350-33080-G0iMCV2#,SXV2#199704

DARK AGATE,TRIM6#

73360BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH

main73360-33080-B0iMCV2#,SXV2#199704-199808

BLUISH GRAY,TRIM1#

main73360-33080-G0iMCV2#,SXV2#199704-199808

DARK AGATE,TRIM6#

main73360-33081-B0iMCV2#,SXV2#199808-199908

BLUISH GRAY,TRIM1#

main73360-33081-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73360-33081-G0iMCV2#,SXV2#199808

DARK AGATE,TRIM6#

73370BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH

main73370-33060-B0iMCV2#,SXV2#199704-199808

BLUISH GRAY,TRIM1#

main73370-33060-G0iMCV2#,SXV2#199704-199808

DARK AGATE,TRIM6#

main73370-33061-B0iMCV2#,SXV2#199808-199908

BLUISH GRAY,TRIM1#

main73370-33061-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73370-33061-G0iMCV2#,SXV2#199808

DARK AGATE,TRIM6#

73373COVER, REAR SEAT SHOULDER BELT

main73373-33010-B1iMCV2#,SXV2#199704-199908

main73373-33010-C0iMCV21,25,SXV2#199908

main73373-33010-G1iMCV2#,SXV2#199704

main73373-33020-B1iMCV2#,SXV2#199704-199908

main73373-33020-C0iMCV21,25,SXV2#199908

main73373-33020-G1iMCV2#,SXV2#199704

73380BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH

main73380-33070-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main73380-33070-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73380-33070-G0iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

73390BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH

main73480-33070-B0iMCV2#,SXV2#199704-199908

BLUISH GRAY,TRIM1#

main73480-33070-C0iMCV21,25,SXV2#199908

BLACK,TRIM2#

main73480-33070-G0iMCV2#,SXV2#199704

DK.SAGE,TRIM6#

9010506081

main90105-06081

9010511036

main90105-11036

9010511041

main90105-11041

9010911042

main90109-11042

9090119040

main90901-19040

9151161025

main91511-61025

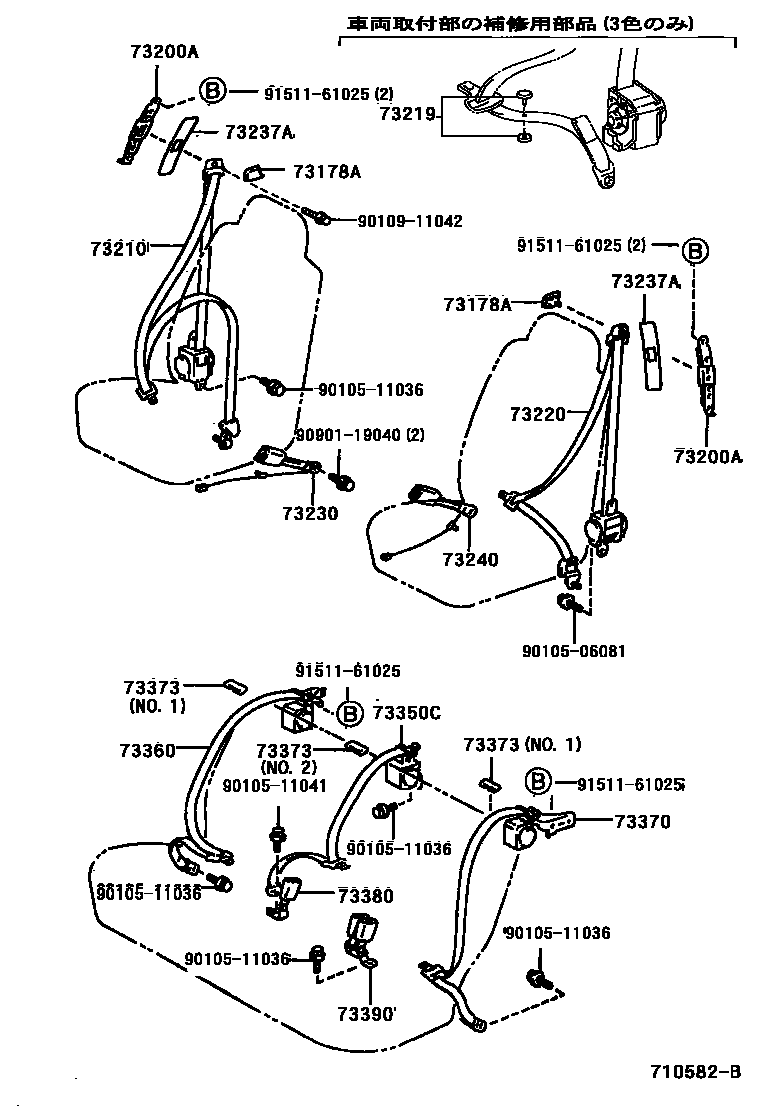

20 parts on this diagram · 1 diagram in section
