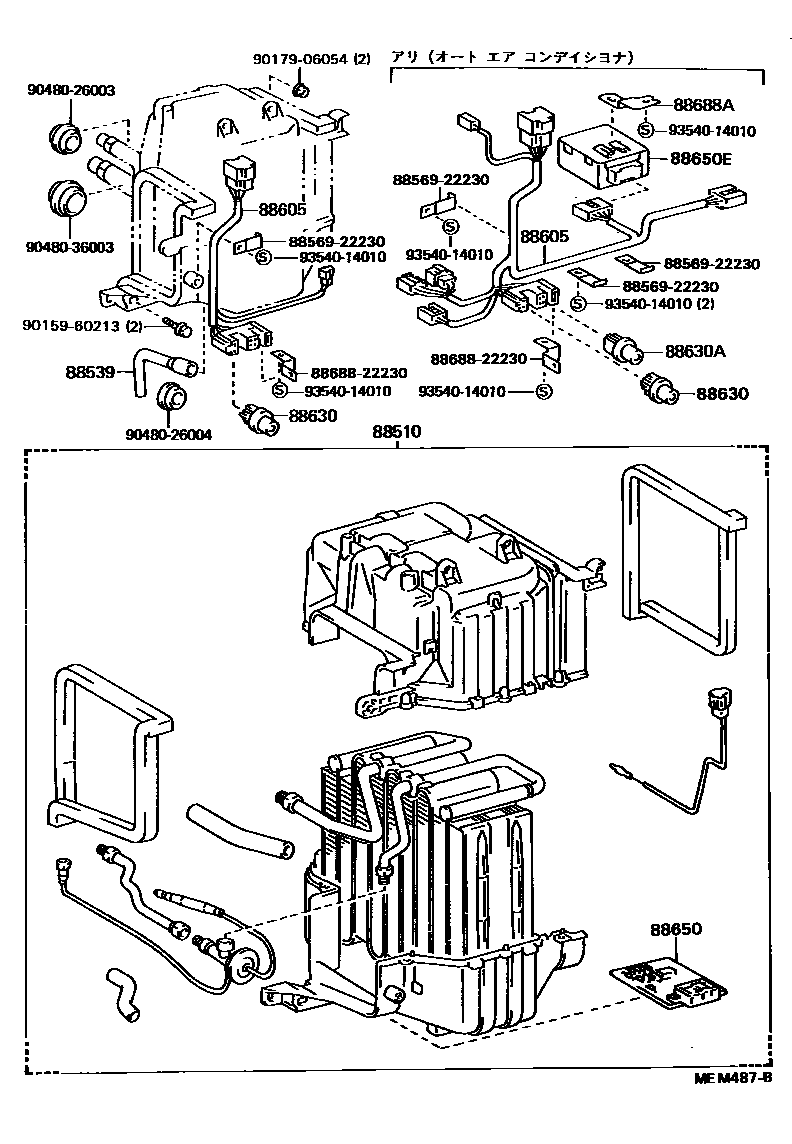

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0003 1

88510UNIT ASSY, COOLER

main88510-22241iGX70199008-199302

main88510-22311iGX70,LX76198810-199302

main88510-22331iYX76198812-199302

main88510-22800iGX70199302-199704

main88510-22810iLX76,YX78199302-199704

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-22110iYX78198810-199704

main88539-22200iLX76199302-199409

main88539-22210iGX70199302-199704

88605HARNESS SUB-ASSY, COOLER WIRING, NO.1

main88605-22310iGX70199008-199302

main88605-22320iGX70198810-199008

main88605-22320iLX76198812-199302

main88605-22390iYX76198812-199302

main88605-22400iGX70198810-199008

main88605-22790iGX70199302-199704

main88605-22800iLX76199302-199409

main88605-22810iYX78199302-199704

88630RELAY ASSY, COOLER

main90987-03001iGX70,LX76,YX76198810-199008

88630ARELAY ASSY, COOLER

main90987-02004iGX70198810-199008

88650AMPLIFIER ASSY, COOLER STABILIZER

main88650-1A450iYX78199302-199704

main88650-22140iYX76198812-199302

88650EAMPLIFIER ASSY, AIR CONDITIONER, NO.1

main88650-22130iGX70199008-199704

main88650-22190iGX70198810-199008

88688ABRACKET, COOLER STABILIZER AMPLIFIER

main88688-22250iGX70198810-199008

main88688-2A060iYX78199302-199704

8856922230CLAMP (FOR COOLER RELAY)

main88569-22230

8868822230BRACKET, COOLER DIAPHRAGM

main88688-22230

9015960213

main90159-60213

9017906054

main90179-06054

9048026003

main90480-26003

9048026004

main90480-26004

9048036003

main90480-36003

9354014010

main93540-14010

16 parts on this diagram · 2 diagrams in section
