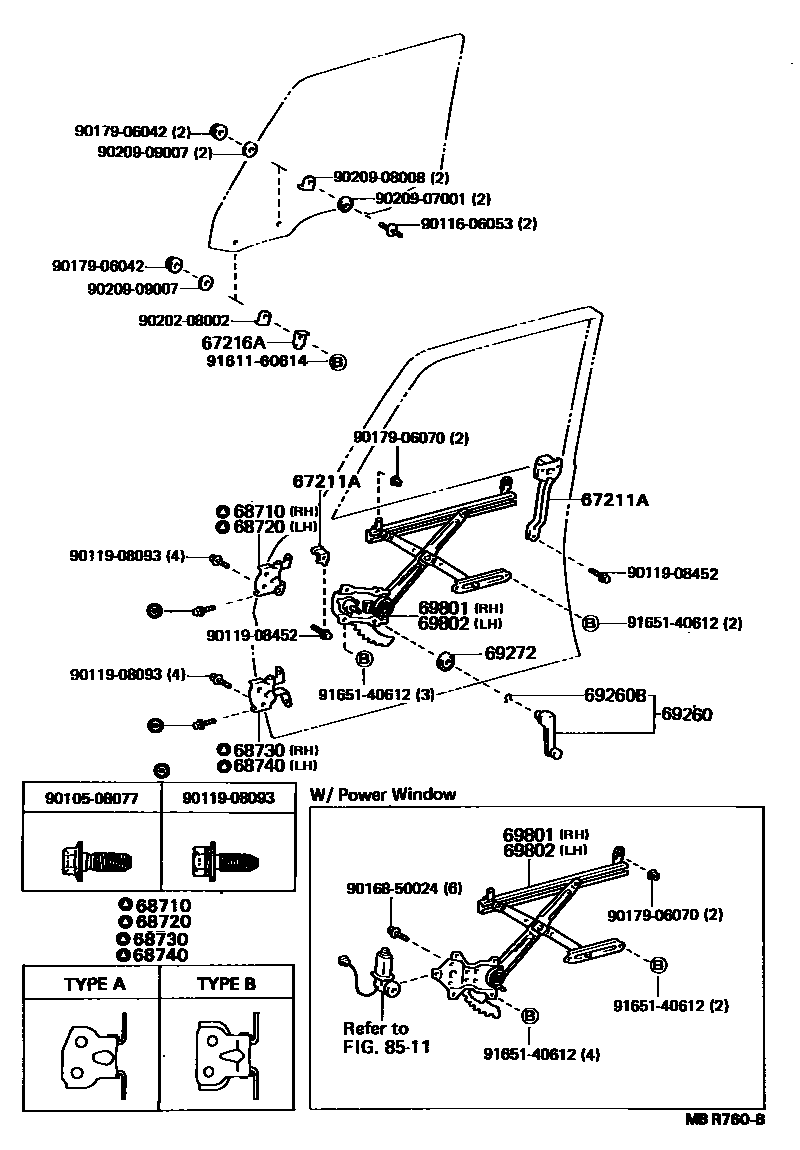

FRONT DOOR WINDOW REGULATOR & HINGE

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67205-22020iGX70,LX76,YX7#199008-199704

REAR-RH

main67206-22010iGX70,LX76,YX76198810-199008

LH-REAR

main67211-22010iGX70,LX76,YX76198810-199008

RH-FRONT

main67212-22010×2iGX70,LX76,YX7#199008-199704

FRONT-LH

67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-22010×2iGX70,LX76,YX7#198810-199704

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-20060iGX70,LX76,YX76199008-199302

main68710-22050iGX70,LX76,YX76199008-199302

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-20050iGX70,LX76,YX76198810-199008

main68720-22040iGX70,LX76,YX76199008-199302

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-24010iGX70,LX76,YX76198810-199008

main68730-32010iGX70,LX76,YX76199008-199302

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-24010iGX70,LX76,YX76199008-199302

main68740-32010iGX70,LX76,YX76199008-199302

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-16×2iLX76,YX76198812-199302

SABLE,TRIM4#

main69260-22030-23×2iLX76,YX7#199008-199704

MEDIUM GRAY,TRIM1#

main69260-22030-24×2iLX76,YX76198812-199008

DARK BLUE,TRIM8#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002×2iLX76,YX76198812-199008

main90520-01274×2iLX76,YX7#199008-199704

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08×2iLX76,YX76198812-199008

NATURAL WHITE,TRIM4#,8#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22080iGX70198810-199704

main69810-22130iLX76,YX7#198812-199704

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22080iGX70198810-199704

main69820-22120iLX76,YX7#198812-199704

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508077

main90105-08077

9011606053

main90116-06053

9011908093

main90119-08093

9011908452

main90119-08452

9016850024

main90168-50024

9017906042

main90179-06042

9017906070

main90179-06070

9020208002

main90202-08002

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9161160614

main91611-60614

9165140612

main91651-40612

25 parts on this diagram · 1 diagram in section
