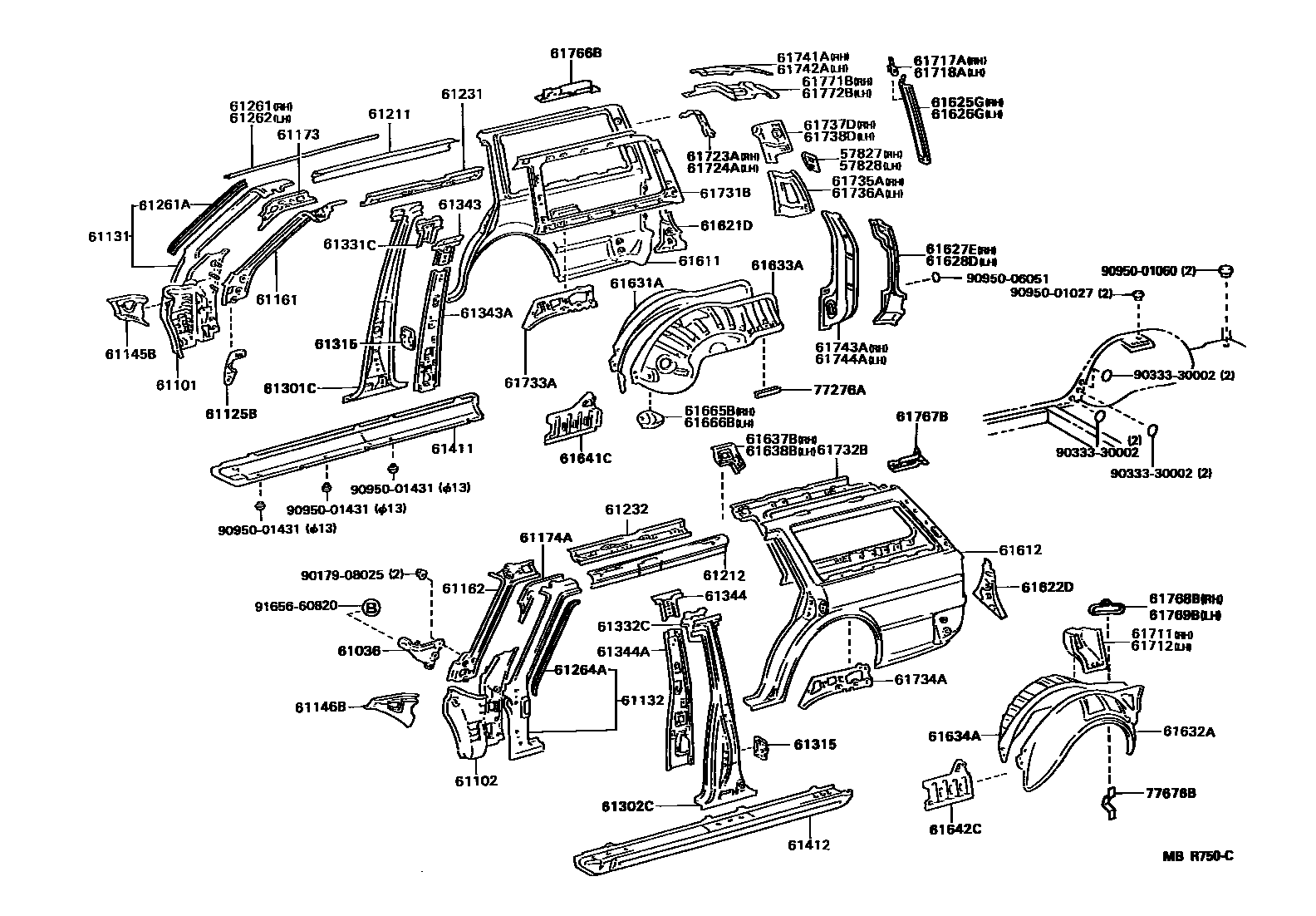

SIDE MEMBER
57827REINFORCEMENT, BACK DOOR SIDE STOPPER, RH
57828REINFORCEMENT, BACK DOOR SIDE STOPPER, LH
61036BRACKET SUB-ASSY, INSTRUMENT PANEL TO COWL SIDE, LH
61101PANEL SUB-ASSY, COWL SIDE, RH
61102PANEL SUB-ASSY, COWL SIDE, LH
61125BPANEL, COWL SIDE, FRONT RH
61131PILLAR, FRONT BODY, UPPER OUTER RH
61132PILLAR, FRONT BODY, UPPER OUTER LH
61145BGUSSET, FRONT BODY PILLAR, LOWER RH
61146BGUSSET, FRONT BODY PILLAR, LOWER LH
61161PILLAR, FRONT BODY, UPPER INNER RH
61162PILLAR, FRONT BODY, UPPER INNER LH
61173REINFORCEMENT, FRONT BODY PILLAR, UPPER INNER
61174AREINFORCEMENT, FRONT BODY PILLAR, UPPER INNER LH
61211RAIL, ROOF SIDE, OUTER RH
61212RAIL, ROOF SIDE, OUTER LH
61231RAIL, ROOF SIDE, INNER RH
61232RAIL, ROOF SIDE, INNER LH
61261CHANNEL, ROOF DRIP, RH
61261ACHANNEL, ROOF DRIP SIDE, FRONT RH
61262CHANNEL, ROOF DRIP, LH
61264ACHANNEL, ROOF DRIP SIDE, FRONT LH
61301CPILLAR SUB-ASSY, CENTER BODY, OUTER RH
61302CPILLAR SUB-ASSY, CENTER BODY, OUTER LH
61315RETAINER, DOOR LOCK STRIKER PLATE
61331CREINFORCEMENT, CENTER PILLAR, UPPER OUTER RH
61332CREINFORCEMENT, CENTER PILLAR, UPPER OUTER LH
61343PILLAR, CENTER BODY, INNER UPPER RH
61343APILLAR, CENTER BODY, INNER RH
61344PILLAR, CENTER BODY, INNER UPPER LH
61344APILLAR, CENTER BODY, INNER LH
61411PANEL, ROCKER, OUTER RH
61412PANEL, ROCKER, OUTER LH
61621DTROUGH, BACK DOOR OPENING, RH
61622DTROUGH, BACK DOOR OPENING, LH
61625GEXTENSION, QUARTER PANEL, REAR RH
61626GEXTENSION, QUARTER PANEL, REAR LH
61627EEXTENSION, QUARTER PANEL, REAR LOWER RH
61628DEXTENSION, QUARTER PANEL, REAR LOWER LH
61631APANEL, QUARTER WHEEL HOUSE, OUTER RH
61632APANEL, QUARTER WHEEL HOUSE, OUTER LH
61633APANEL, QUARTER WHEEL HOUSE, INNER RH
61634APANEL, QUARTER WHEEL HOUSE, INNER LH
61637BREINFORCEMENT, REAR PILLAR, INNER UPPER RH
61638BREINFORCEMENT, REAR PILLAR, INNER UPPER LH
61641CGUSSET, QUARTER WHEEL HOUSE, FRONT RH
61642CGUSSET, QUARTER WHEEL HOUSE, FRONT LH
61665BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, RH
61666BREINFORCE, SEAT BELT ANCHORAGE TO QUARTER WHEEL HOUSE, LH
61711PANEL, ROOF SIDE, OUTER RH
61712PANEL, ROOF SIDE, OUTER LH
61717AREINFORCEMENT, QUARTER PANEL EXTENSION, RH
61718AREINFORCEMENT, QUARTER PANEL EXTENSION, LH
61723AREINFORCEMENT, QUARTER WINDOW OPENING, RH NO.1
61724AREINFORCEMENT, QUARTER WINDOW OPENING, LH NO.1
61731BPANEL, ROOF SIDE, INNER RH
61732BPANEL, ROOF SIDE, INNER LH
61733APANEL, ROOF SIDE, INNER FRONT RH
61734APANEL, ROOF SIDE, INNER FRONT LH
61735APANEL, ROOF SIDE, INNER REAR RH
61736APANEL, ROOF SIDE, INNER REAR LH
61737DREINFORCEMENT, ROOF SIDE, INNER RH
61738DREINFORCEMENT, ROOF SIDE, INNER LH
61741AREINFORCEMENT, BACK DOOR OPENING, UPPER RH
61742AREINFORCEMENT, BACK DOOR OPENING, UPPER LH
61743AREINFORCEMENT, BACK DOOR OPENING SIDE, RH
61744AREINFORCEMENT, BACK DOOR OPENING SIDE, LH
61766BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER RH
61767BREINFORCEMENT, BELT ANCHOR TO ROOF SIDE, INNER LH
61768BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH
61769BREINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH
61771BFRAME, BACK DOOR OPENING UPPER CORNER, RH
61772BFRAME, BACK DOOR OPENING UPPER CORNER, LH
77276APROTECTOR, FUEL HOSE
77676BBRACKET, FUEL TANK FILLER PIPE PROTECTOR, NO.2
9017908025
main90179-08025
9033330002
main90333-30002
9095001027
main90950-01027
9095001060
main90950-01060
9095001431
main90950-01431
9095006051
main90950-06051
9165660820
main91656-60820
84 parts on this diagram · 2 diagrams in section
