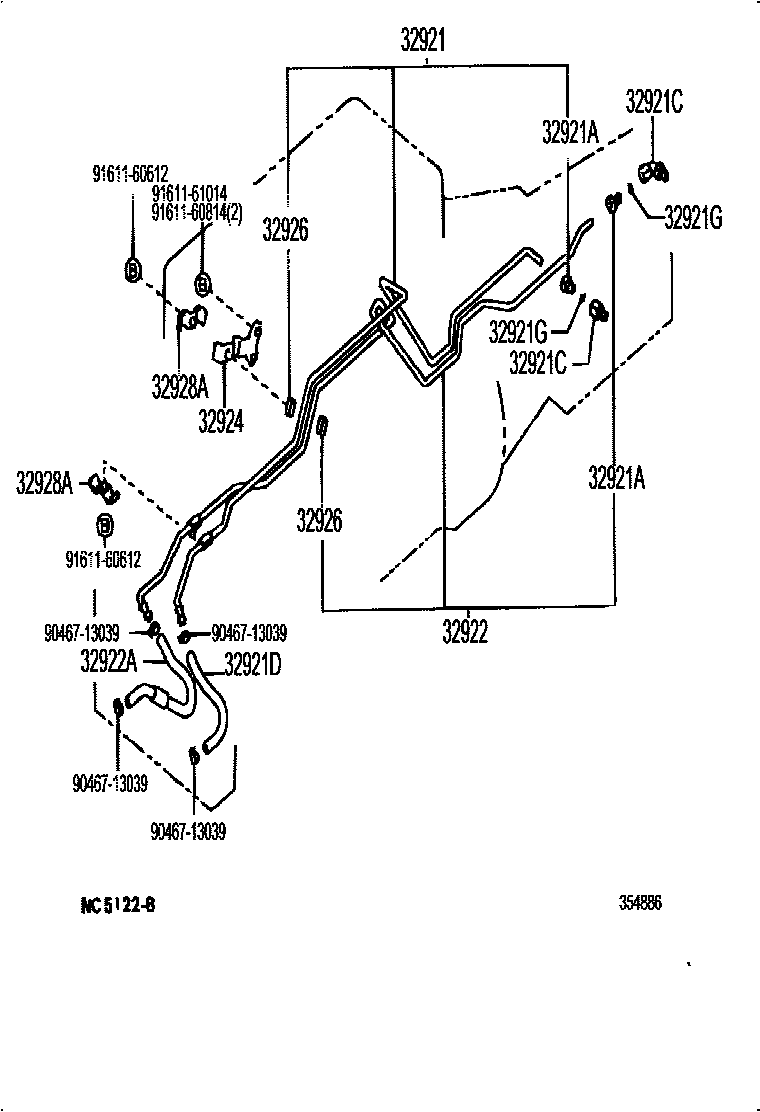

OIL COOLER & TUBE (ATM)

0001 1 0002 1

32921TUBE, OIL COOLER INLET, NO.1

main32921-22420iGX70..4FC198810-199704

main32921-22430iYX7#..3FC198812-199704

32921ANUT, UNION(FOR OIL COOLER TUBE)

main90402-14004iGX70..4FC198810-199704

32921CUNION(FOR OIL COOLER TUBE)

main90404-14007iGX70,YX7#..ATM198810-199704

main90407-14003iGX70,YX7#..ATM198810-199704

32921DHOSE(FOR OIL COOLER INLET)

main32941-22070iYX76..3FC198812-198907

main32941-22071iYX76..3FC198907-199302

main32941-22480iYX78..3FC199302-199704

main90445-15020iGX70..4FC199512-199608

main90445-15042iGX70..4FC198907-199704

main90445-16026iGX70..4FC198810-198907

32921GRING, O(FOR OIL COOLER TUBE UNION)

main90301-10189iGX70,YX7#..ATM198810-199704

32922TUBE, OIL COOLER OUTLET, NO.1

main32922-22440iGX70..4FC198810-199704

main32922-22450iYX7#..3FC198812-199704

32922AHOSE(FOR OIL COOLER OUTLET)

main32941-22110iGX70..4FC198810-198907

main32941-22111iGX70..4FC198907-199704

main32942-22300iYX78..3FC198907-199704

main90445-15014iYX76..3FC198812-198907

main90445-15045iYX76..3FC198907-199302

32924CLAMP, OIL COOLER TUBE, NO.2

main32924-22061iGX70..4FC198810-199704

main90461-08070iYX7#..3FC198812-199704

32926CUSHION, OIL COOLER TUBE(ATM)

main32926-22010iGX70..4FC198810-199704

32928ACLAMP(FOR FLEXIBLE HOSE CLAMP)

main90462-12085iGX70..4FC198810-199704

9046713039

main90467-13039

9161160612

main91611-60612

9161160814

main91611-60814

9161161014

main91611-61014

14 parts on this diagram · 2 diagrams in section
