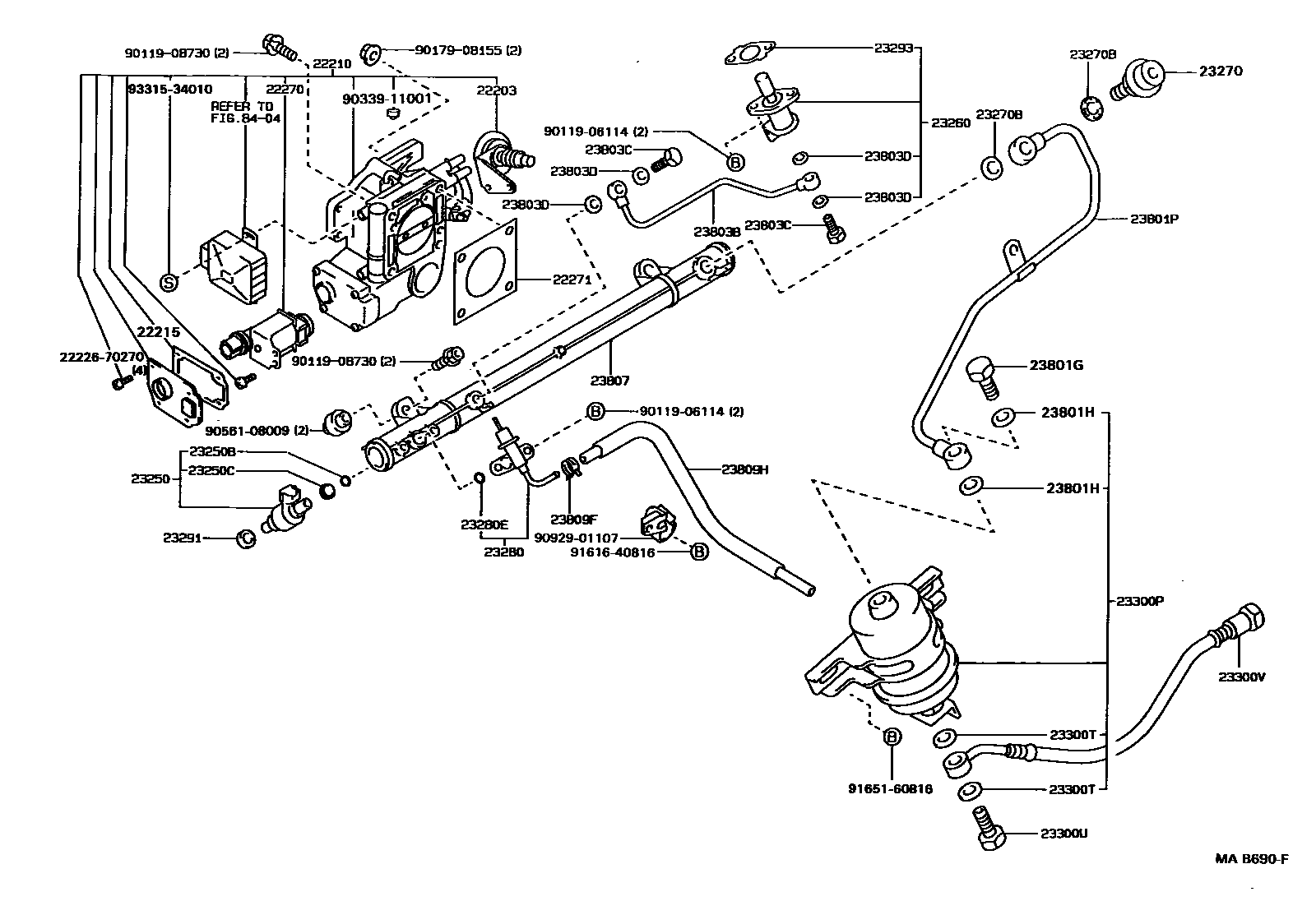

FUEL INJECTION SYSTEM
22203DASH POT SUB-ASSY(FOR THROTTLE BODY)
22210BODY ASSY, THROTTLE
22215GASKET, THROTTLE BODY COVER
22270VALVE ASSY, IDLE SPEED CONTROL(FOR THLOTTLE BODY)
22271GASKET, THROTTLE BODY
23250INJECTOR ASSY, FUEL
23250BRING, O(FOR FUEL INJECTOR)
23250CGROMMET(FOR FUEL INJECTOR)
23260INJECTOR ASSY, COLD START FUEL
23270DAMPER ASSY, FUEL PRESSURE PULSATION
23270BGASKET(FOR PULSATION DAMPER HOSE)
DAMPER SIDE
DAMPER SIDE
DELIVERY PIPE SIDE
DELIVERY PIPE SIDE
23280REGULATOR ASSY, FUEL PRESSURE
23280ERING, O(FOR FUEL PRESSURE REGULATOR)
23291INSULATOR, INJECTOR VIBRATION
23293GASKET, COLD START INJECTOR
23300PFILTER, FUEL(FOR EFI)
23300TGASKET(FOR FUEL FILTER)
23300UBOLT, UNION(FOR FUEL FILTER)
LOWER
LOWER
23300VHOSE, FUEL(FOR FUEL INLET)
23801GBOLT, UNION(FOR FUEL PIPE)
23801HGASKET(FOR FUEL PIPE)
23801PPIPE SUB-ASSY, FUEL, NO.1
23803BPIPE SUB-ASSY, FUEL, NO.3
23803CGASKET(NOZZLE LEKAGE PIPE NO.3)
23803DBOLT, UNION(FOR NOZZLE LEKAGE PIPE NO.3)
23807PIPE SUB-ASSY, FUEL DELIVERY
23809FCLIP(FOR FUEL PIPE SUPPORT)
23809HHOSE, FUEL PIPE SUPPORT TO REGULATOR
8404ELECTRONIC FUEL INJECTION SYSTEM
2222670270
main22226-70270
9011906114
main90119-06114
9011908730
main90119-08730
9017908155
main90179-08155
9033911001
main90339-11001
9056108009
main90561-08009
9092901107
main90929-01107
9161640816
main91616-40816
9165160816
main91651-60816
9331534010
main93315-34010
39 parts on this diagram · 6 diagrams in section
