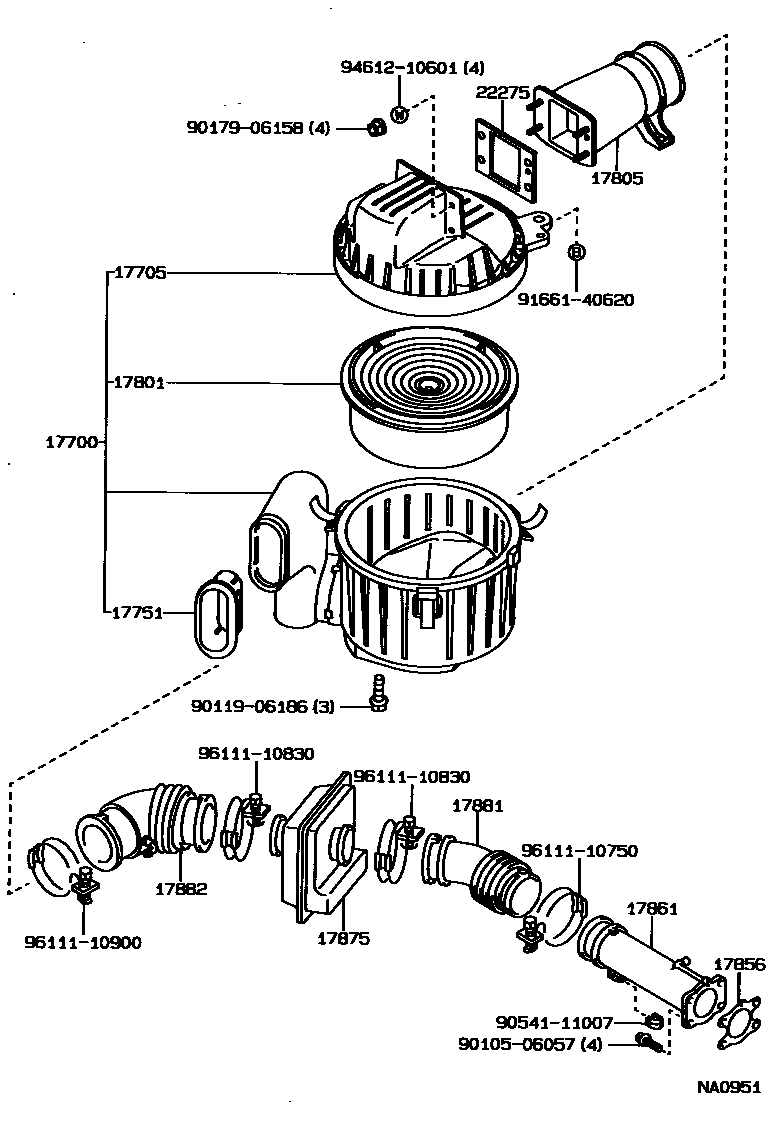

AIR CLEANER

0001 1 0002 1 0003 1 0004 1

17700CLEANER ASSY, AIR

main17700-54310i2L..LX76198812-199409

main17700-70031i1GFE..GX70198810-199704

main17700-72070i2YJ..YX76198812-199302

main17700-73270i3YE..YX78199302-199704

17705CAP SUB-ASSY, AIR CLEANER

main17705-54110i2L..LX76198812-199409

main17705-70030i1GFE..GX70198810-199210

main17705-71020i2YJ..YX76198812-199211

main17705-73080i2YJ..YX76199211-199302

main17705-73120i1GFE..GX70; 3YE..YX78199210-199704

17751INLET, AIR CLEANER, NO.1

main17751-70011i1GFE..GX70; 3YE..YX78198810-199704

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-34060i2YJ..YX76198812-199302

main17801-54060i2L..LX76198812-199409

main17801-70020i1GFE..GX70; 3YE..YX78198810-199704

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-54040i2L..LX76198812-199409

main17805-70090i1GFE..GX70198810-199704

17856GASKET, AIR INTAKE FLANGE

main17856-70020i1GFE..GX70198810-199704

17861CONNECTOR, INTAKE AIR

main17861-70020i1GFE..GX70198810-199008

main17861-70050i1GFE..GX70199008-199704

17875PIPE, INTAKE AIR CONNECTOR

main17875-70140i1GFE..GX70198810-199704

main17875-73011i3YE..YX78199302-199704

17881HOSE, AIR CLEANER, NO.1

main17881-16210i2YJ..YX76199007-199302

main17881-54380i2L..LX76198812-199409

NO.2

main17881-70200i1GFE..GX70198810-199704

main17881-73130i3YE..YX78199302-199704

main17881-74040i2YJ..YX76198812-199007

17882HOSE, AIR CLEANER, NO.2

main17881-54250i2YJ..YX76198812-199302

main17882-54280i2L..LX76198812-199409

main17882-70140i1GFE..GX70198810-199704

22275GASKET, AIR FLOW METER

main22275-43010i1GFE..GX70; 3YE..YX78198810-199704

9010506057

main90105-06057

9011906186

main90119-06186

9017906158

main90179-06158

9054111007

main90541-11007

9166140620

main91661-40620

9461210601

main94612-10601

9611110750

main96111-10750

9611110830

main96111-10830

9611110900

main96111-10900

20 parts on this diagram · 4 diagrams in section
