V-BELT

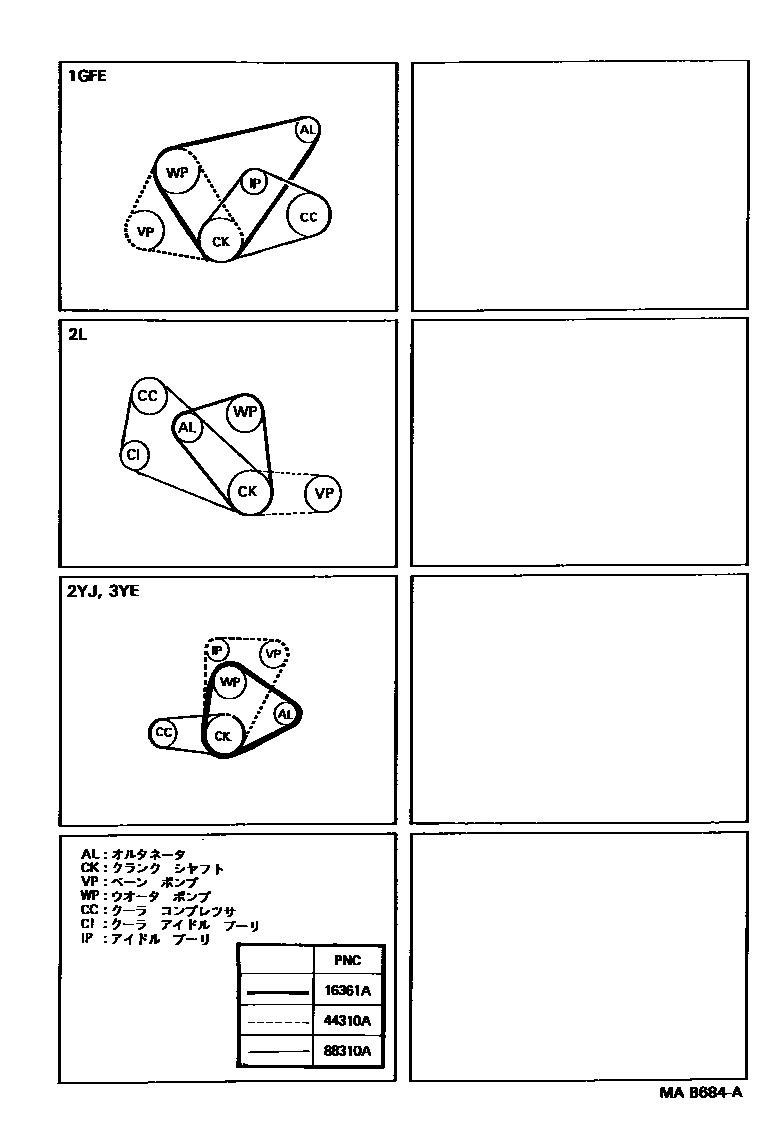

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02209i198812-199409

main99364-01080i198810-199101

main99364-21080i199101-199210

main99364-50830i198812-199011

main99364-70830i199011-199302

main99364-81080i199210-199302

main99364-91080i199511-199704

main99365-70820i199302-199402

main99365-80820i199402-199704

44310ABELT, V(FOR VANE PUMP)

main99332-00830i198812-199302

main99332-01055i198812-199302

main99332-10830i199302-199409

main99332-11055i199302-199704

main99363-00890i199008-199704

main99363-00900i198810-199008

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main90916-02354i199212-199704

main99322-00880i198812-199704

main99322-01240i198812-199302

main99332-11205i199302-199409

main99364-00860i198810-199008

main99364-70860i199104-199212

3 parts on this diagram · 1 diagram in section
