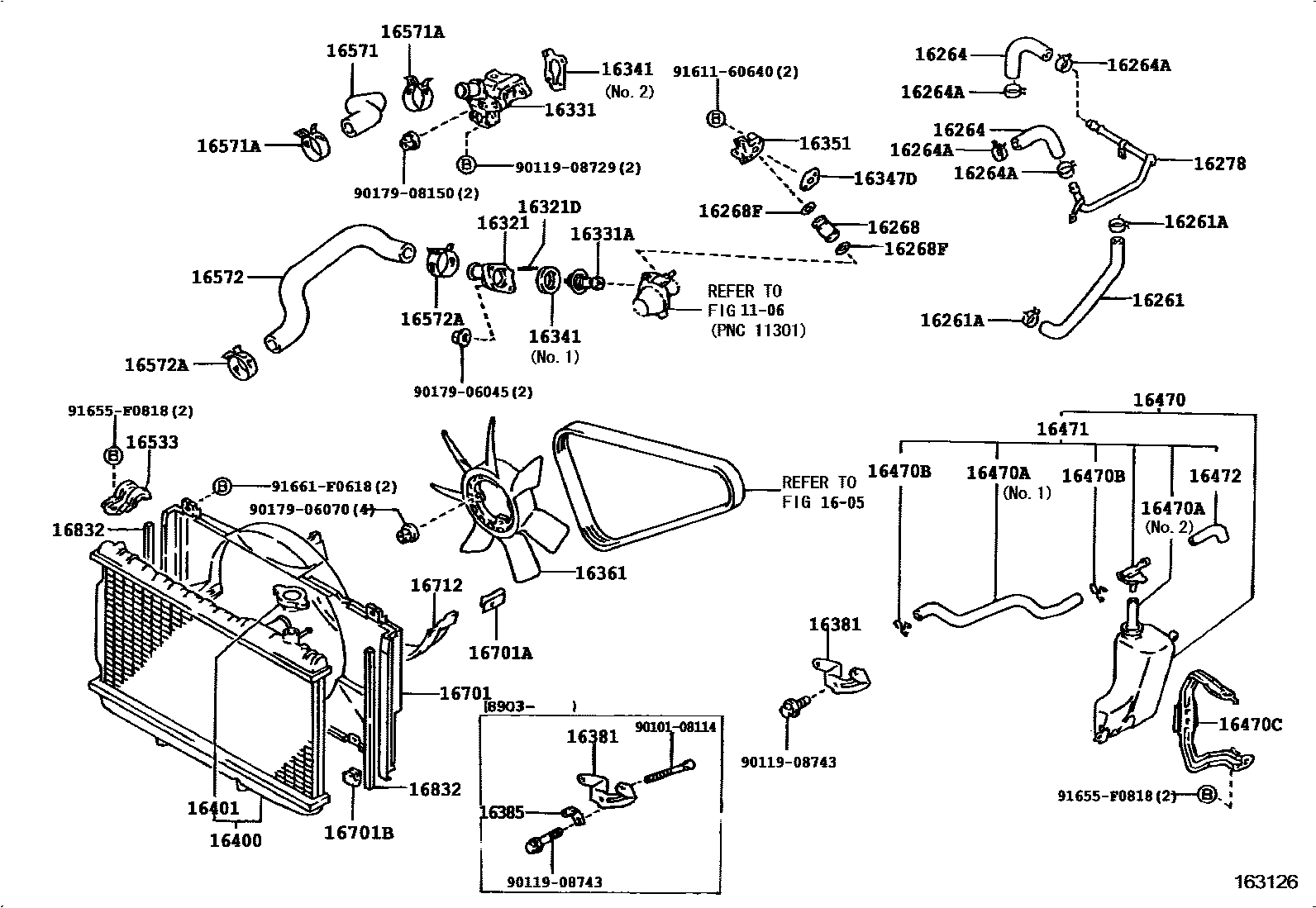

RADIATOR & WATER OUTLET
1106TIMING GEAR COVER & REAR END PLATE
1605V-BELT
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16264HOSE, WATER BY-PASS, NO.2
16264ACLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.2)
16268PIPE, WATER BY-PASS, NO.1
16278PIPE, WATER BY-PASS, NO.2
16321DBOLT, STUD(FOR WATER INLET)
16331OUTLET, WATER
16331ATHERMOSTAT
16341GASKET, WATER OUTLET
16351OUTLET, WATER BY-PASS
16381BAR, FAN BELT ADJUSTING
16400RADIATOR ASSY
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
16701ACLIP(FOR FAN SHROUD)
16712SHROUD, FAN, NO.2
16832SEAL, FAN SHROUD
9010108114
main90101-08114
9011908729
main90119-08729
9011908743
main90119-08743
9017906045
main90179-06045
9017906070
main90179-06070
9017908150
main90179-08150
9161160640
main91611-60640
91655F0818
main91655-F0818
91661F0618
main91661-F0618
46 parts on this diagram · 7 diagrams in section
