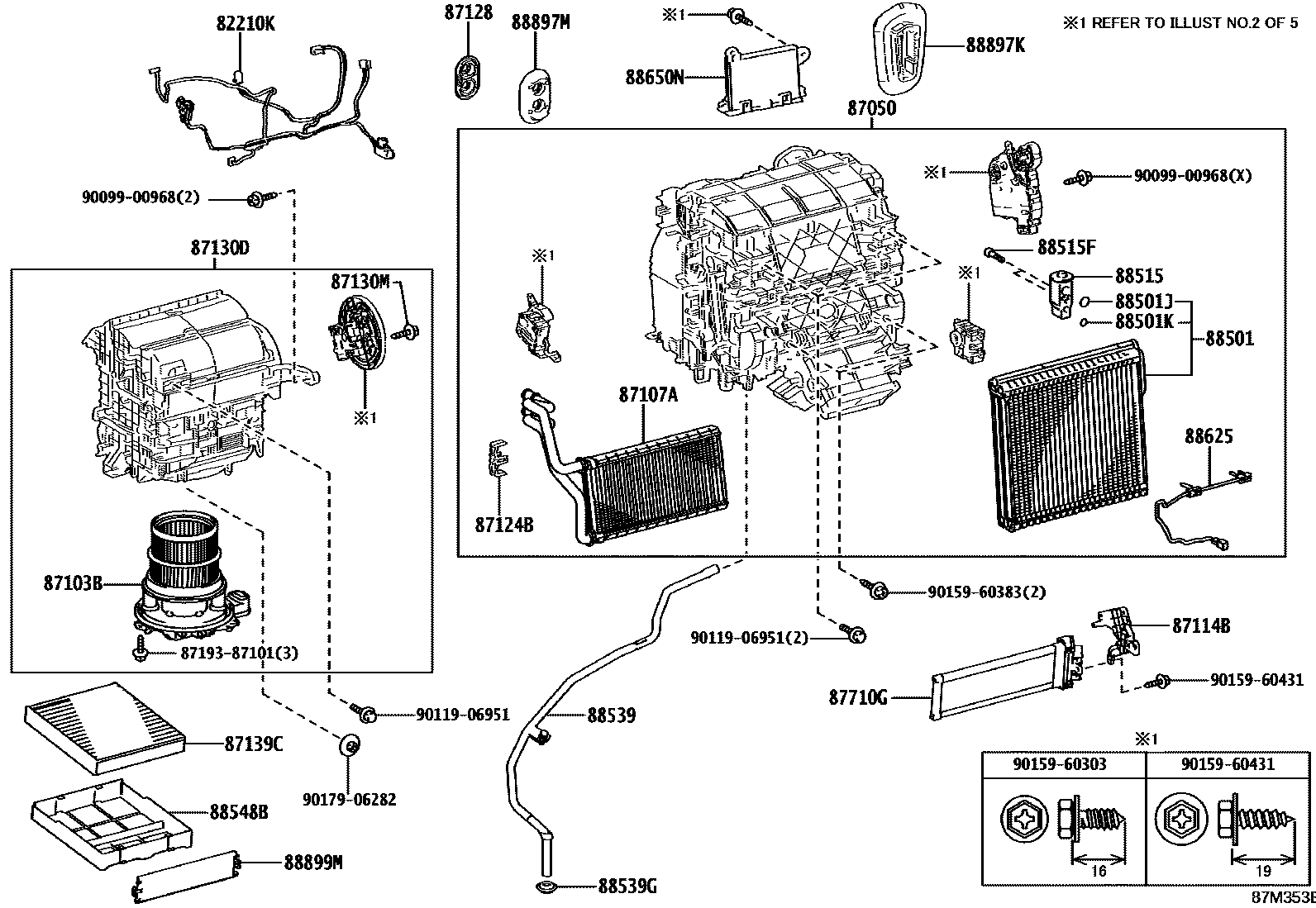

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1���� 0002 1��������� 0003 1�� 1/2 0004 1�� 2/2 0005 1��������

82210KHARNESS ASSY, AIR CONDITIONER

main82212-33210iGRG75202310

87050RADIATOR ASSY, AIR CONDITIONER

main87050-48B00iGRG75202310

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-58070iGRG75202310

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-33140iGRG75202310

87114BCOVER, HEATER

main87114-48120iGRG75202310

87124BCLAMP, HEATER

main87124-33070iGRG75202310

87128GROMMET, HEATER

main87128-28010iGRG75202310

87130DBLOWER ASSY

main87130-47300iGRG75202310

87130MSCREW(FOR BLOWER)

main90099-00968×8iGRG75202310

87139CFILTER, CLEAN AIR

main87139-76020iGRG75202310

87710GQUICK HEATER ASSY

main87710-58010iGRG75202310

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-33350iGRG75202310

88501JO-RING, COOLER EVAPORATOR NO.2(SUCTION)

main90099-14121×2iGRG75202310

88501KO-RING, COOLER EVAPORATOR NO.1(LIQUID)

main90099-14120iGRG75202310

88515VALVE, COOLER EXPANSION

main88515-58050iGRG75202310

88515FBOLT(FOR COOLER EXPANSION VALVE)

main90099-04542×2iGRG75202310

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-40090iGRG75202310

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iGRG75202310

88548BCASE, AIR FILTER

main88899-76020iGRG75202310

88625THERMISTOR, COOLER, NO.1

main88620-28050iGRG75202310

88650NAMPLIFIER ASSY, AIR CONDITIONER

main886H0-40011iGRG75202310

88897KGROMMET, (FOR COOLER PIPE)

main88899-33080iGRG75202310

88897MGROMMET (FOR HEATER PIPE)

main87128-33020iGRG75202310

88899MPLATE, COVER(FOR AIR FILTER)

main88899-47120iGRG75202310

8719387101

main87193-87101

9009900968

main90099-00968

9011906951

main90119-06951

9015960303

main90159-60303

9015960383

main90159-60383

9015960431

main90159-60431

9017906282

main90179-06282

31 parts on this diagram · 5 diagrams in section
