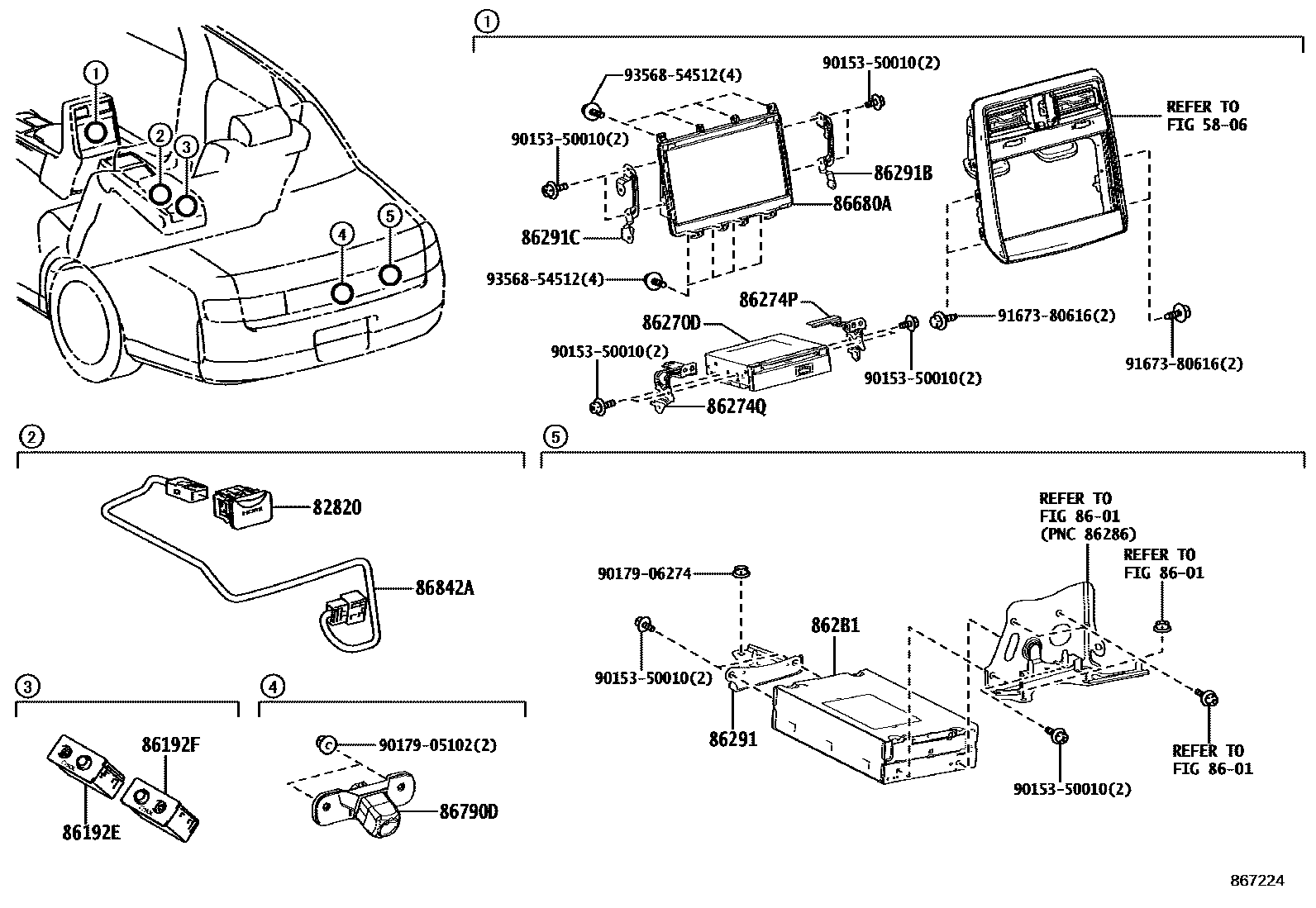

CAMERA & REAR MONITOR DISPLAY

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

82820COVER, CONNECTOR

main82821-48320iUWG60201806

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86192ETERMINAL, HEADPHONE, NO.1

main86192-50030iUWG60201806

86192FTERMINAL, HEADPHONE, NO.2

main86192-50040iUWG60201806

86270DDISC PLAYER ASSY

main86270-40050iUWG60201806

86274PBRACKET, DISC PLAYER, NO.1

main86274-40060iUWG60201806

86274QBRACKET, DISC PLAYER, NO.2

main86274-40070iUWG60201806

86291BRACKET, TELEVISION

main86291-40050iUWG60201806

86291BBRACKET, TELEVISION, NO.1

main86291-40010iUWG60201806

86291CBRACKET, TELEVISION, NO.2

main86291-40020iUWG60201806

862B1CONTROLLER, MULTI-DISPLAY

main862B1-40010iUWG60201806

86680ADISPLAY ASSY, TELEVISION

main86680-40090iUWG60201806-201910

main86680-40100iUWG60201910-202104

main86680-40101iUWG60202105

86790DCAMERA ASSY, TELEVISION, RR

main867B0-40010iUWG60201806

86842AWIRE, NAVIGATION, NO.1

main86842-40020iUWG60201806

9015350010

main90153-50010

9017905102

main90179-05102

9017906274

main90179-06274

9167380616

main91673-80616

9356854512

main93568-54512

20 parts on this diagram · 1 diagram in section
