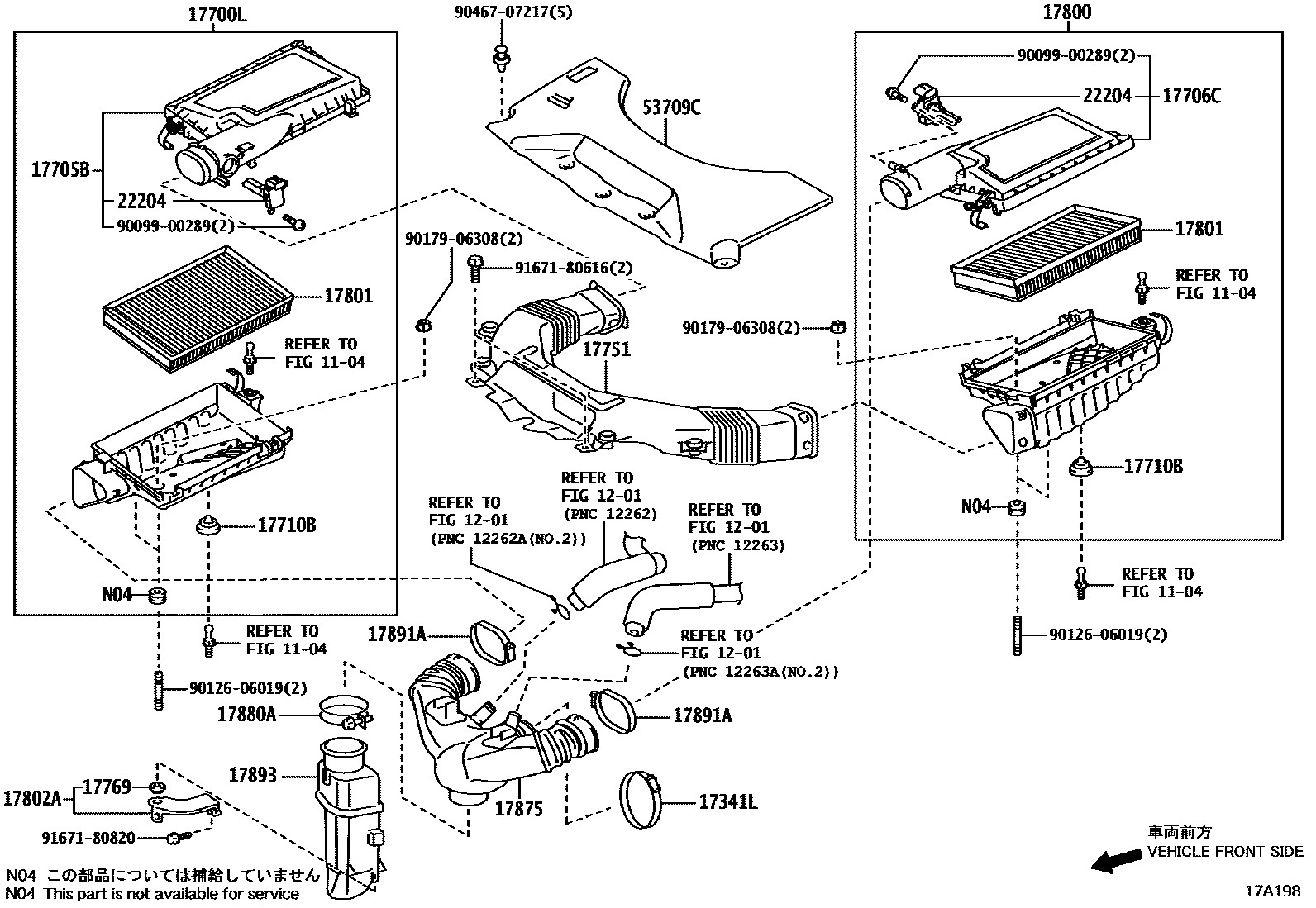

AIR CLEANER

1104CYLINDER HEAD

→ Go to FIG 11-04

1201VENTILATION HOSE

→ Go to FIG 12-01

17341LCLAMP, HOSE

main90460-99005201806

17700LCLEANER ASSY, AIR W/ELEMENT, RH

main17700-38132201806

17705BCAP SUB-ASSY, AIR CLEANER RH

main17705-38071201806

17706CCAP SUB-ASSY, AIR CLEANER, LH

main17706-38011201806

17710BGROMMET

main90480-22024201806

17751INLET, AIR CLEANER, NO.1

main17751-38020201806

17769SUPPORT, AIR CLEANER

main17769-38010201806

17800CLEANER ASSY, AIR W/ELEMENT, LH

main17800-38012201806

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38011201806

17802ABRACKET SUB-ASSY, RESONATOR

main17802-38010201806

17875PIPE, INTAKE AIR CONNECTOR

main17875-38011201806

17880ACLAMP, HOSE

main96111-10750201806

17891ACLAMP, AIR CLEANER HOSE

main17891-38010201806

17893RESONATOR, INTAKE AIR

main17893-38020201806

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-38020201806

53709CCOVER SUB-ASSY, AIR CLEANER INLET

main53767-50020201806

9009900289

main90099-00289

9012606019

main90126-06019

9017906308

main90179-06308

9046707217

main90467-07217

9167180616

main91671-80616

9167180820

main91671-80820

24 parts on this diagram · 1 diagram in section
