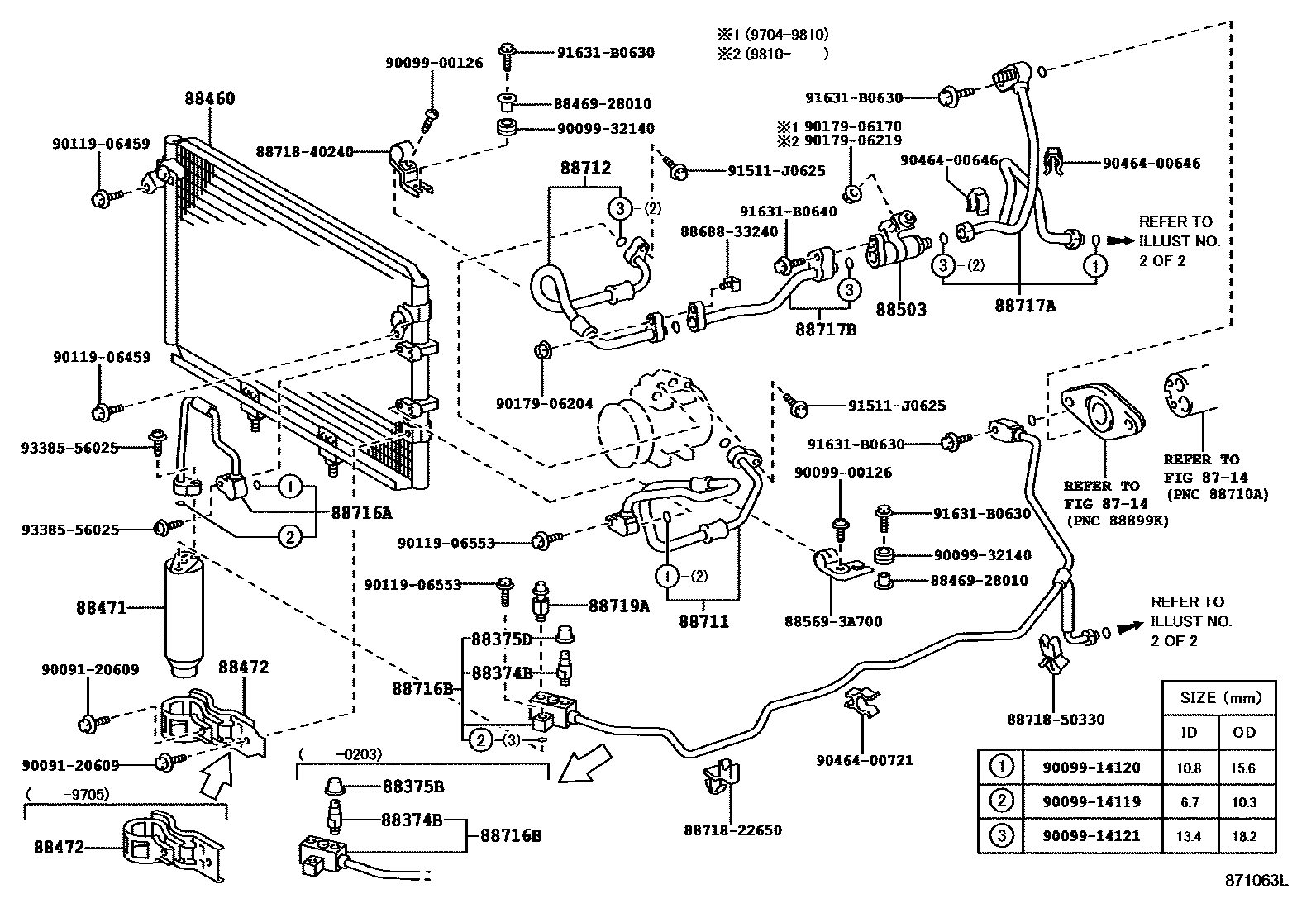

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1REAR COOLER PIPE

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

88374BVALVE, SERVICE, NO.1

main88374-30010iGZG50200203-200501

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iGZG50..4FC,4HC199704

88375DCAP, SERVICE VALVE, NO.2

main88375-30280iGZG50200203-200501

88460CONDENSER ASSY, COOLER

main88460-40090iGZG50199704-200501

main88460-40100iGZG50200501

88471TANK, RECEIVER AIR CONDITIONER

main88471-30370iGZG50199704-200501

88472BRACKET, RECEIVER TANK, NO.1

main88472-14200iGZG50199704-199705

main88472-40080iGZG50199705-200501

88503REGULATOR ASSY, PRESSURE

main88503-40040iGZG50199704-200501

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-40160iGZG50199704-200501

88712HOSE, COOLER REFRIGERANT SUCTION, NO.1

main88712-40120iGZG50199704-200501

main88712-40130iGZG50200501

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-40700iGZG50199704-200501

main88716-40790iGZG50200501

88716BPIPE, COOLER REFRIGERANT LIQUID, B

main88716-40710iGZG50199704-200203

main88716-40711iGZG50200203-200501

88717APIPE, COOLER REFRIGERANT SUCTION, A

main88717-40370iGZG50199704-200501

88717BPIPE, COOLER REFRIGERANT SUCTION, B

main88717-40350iGZG50199704-200501

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-40010iGZG50199704-199706

main88719-40020iGZG50199706-200501

8846928010SWITCH, PRESSURE CONTROL

main88469-28010

885693A700CLAMP (FOR COOLER RELAY)

main88569-3A700

8868833240BRACKET, COOLER DIAPHRAGM

main88688-33240

8871822650PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-22650

8871840240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-40240

8871850330PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-50330

9009120609

main90091-20609

9009900126

main90099-00126

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009932140

main90099-32140

9011906459

main90119-06459

9011906553

main90119-06553

9017906170

main90179-06170

9017906204

main90179-06204

9017906219

main90179-06219

9046400646

main90464-00646

9046400721

main90464-00721

91511J0625

main91511-J0625

91631B0630

main91631-B0630

91631B0640

main91631-B0640

9338556025

main93385-56025

38 parts on this diagram · 3 diagrams in section
