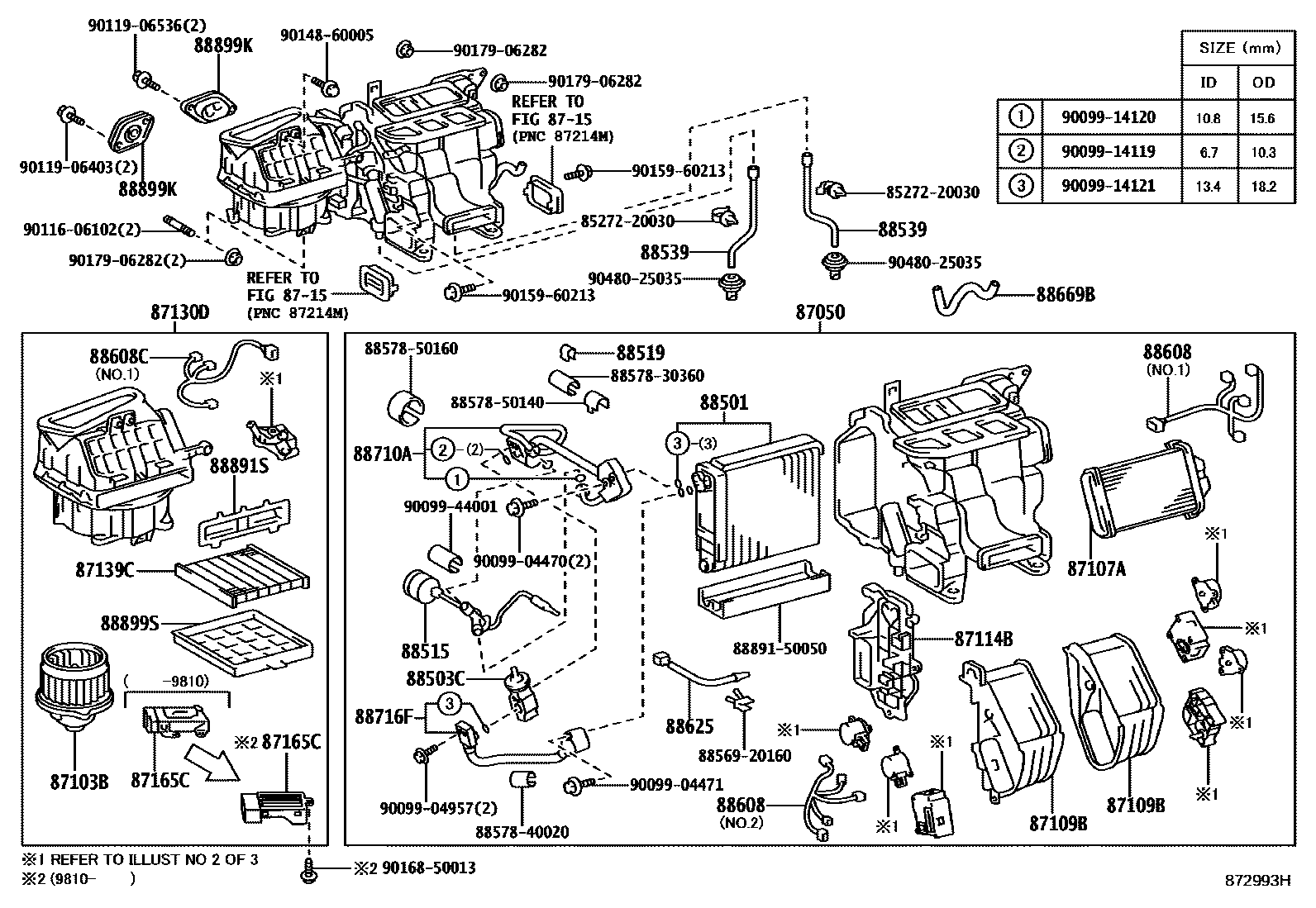

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1��������� 0003 1�����

87050RADIATOR ASSY, AIR CONDITIONER

main87050-40010iGZG50199704-200501

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-40010iGZG50199704-200501

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-40080iGZG50199704-200501

87109BFILM SUB-ASSY, AIR CONDITIONER

main87109-40010iGZG50199704-200501

main87109-40020iGZG50200501

87114BCOVER, HEATER

main87114-50020iGZG50199704-200501

87130DBLOWER ASSY

main87130-40030iGZG50199704-199810

main87130-40031iGZG50199810-200501

87139CFILTER, CLEAN AIR

main87139-50010iGZG50200501

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87165CCONTROL, BLOWER MOTOR

main87165-22040iGZG50199810-200003

main87165-22050iGZG50200003-200501

main87165-50010iGZG50199704-199810

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-50140iGZG50200501

88503CREGULATOR SUB-ASSY, PRESSURE

main88503-50170iGZG50199704-200501

88515VALVE, COOLER EXPANSION

main88515-40090iGZG50199704-200501

88519HOLDER, REMOTE BULB

main88519-22030iGZG50199704-200501

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-40010×2iGZG50199704-200501

88608HARNESS SUB-ASSY, WIRING AIR CONDITIONER

main88608-50140iGZG50199704-200501

main88608-50170iGZG50199704-200501

88608CHARNESS SUB-ASSY, WIRING AIR INDICATOR, NO.2

main88608-40110iGZG50199704-200501

main88608-50180iGZG50199704-199810

main88608-50230iGZG50199810-200501

88625THERMISTOR, COOLER, NO.1

main88625-50140iGZG50199704-200501

88669BHOSE, COOLER AIR

main88669-40010iGZG50199704-200501

88710ATUBE ASSY, AIR CONDITIONER

main88710-40220iGZG50199704-200501

88716FPIPE, COOLER REFRIGERANT LIQUID, F

main88716-40730iGZG50199704-200501

88891SCOVER, COOLER, NO.1

main88891-50030iGZG50199704-200501

88899KPLATE, COVER

main88899-50020iGZG50199704-200501

main88899-50041iGZG50199704-200501

88899SFRAME, FRONT COOLER

main88899-50050iGZG50199704-200501

8527220030CABLE SUB-ASSY, HEADLAMP CLEANER, RH

main85272-20030

8856920160CLAMP (FOR COOLER RELAY)

main88569-20160

8857830360PAKING, COOLER AIR DUCT

main88578-30360

8857840020PAKING, COOLER AIR DUCT

main88578-40020

8857850140PAKING, COOLER AIR DUCT

main88578-50140

8857850160PAKING, COOLER AIR DUCT

main88578-50160

8889150050PACKING (FOR COOLER)

main88891-50050

9009904470

main90099-04470

9009904471

main90099-04471

9009904957

main90099-04957

9009914119

main90099-14119

9009914120

main90099-14120

9009914121

main90099-14121

9009944001

main90099-44001

9011606102

main90116-06102

9011906403

main90119-06403

9011906536

main90119-06536

9014860005

main90148-60005

9015960213

main90159-60213

9016850013

main90168-50013

9017906282

main90179-06282

9048025035

main90480-25035

45 parts on this diagram · 3 diagrams in section
