TELEPHONE & MAYDAY

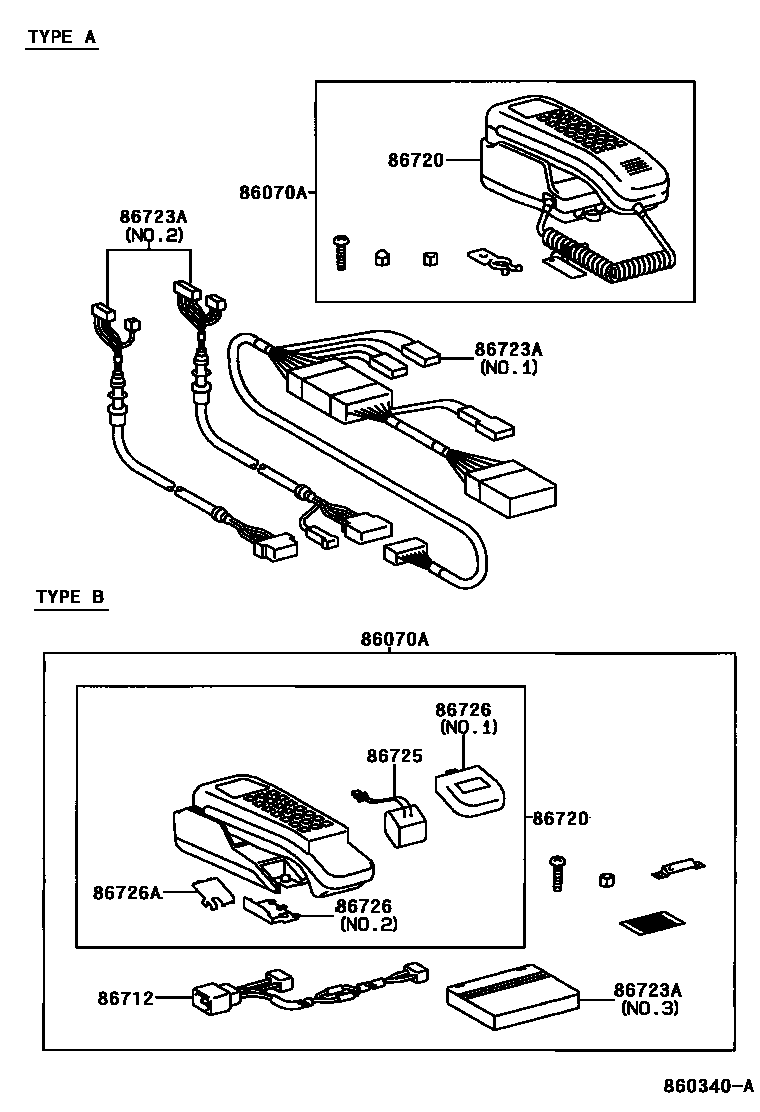

Parts diagram

86070MOBILEPHONE & ACCESSORY ASSY

main86070-40010i199704-200004

main86070-40020i199704-200004

86070AMOBILEPHONE & ACCESSORY ASSY (HANDSET)

main86070-30150i199704-200004

main86070-30170i199704-200004

86712WIRE, TELEPHONE

main86712-50040i199704-200004

86720MOBILEPHONE ASSY

main86720-30060i199704-200004

main86720-30090i199704-200004

86723WIRE, MOBILEPHONE

main86723-30100i199704-200004

main86723-30110i199704-200004

main86723-30170i200004-200501

main86723-40040i199704-200004

main86723-40070i199904-200004

86723AWIRE, MOBILEPHONE

main86723-30090i199704-200004

main86723-40050i199704-200004

main86723-40080i199904-200004

main86723-50030i199704-200004

86725BATTERY, MOBILEPHONE

main86725-50010i199704-200004

86726COVER, MOBILEPHONE

main86726-30010i199704-200004

main86726-30020i199704-200004

86726ACOVER, MOBILEPHONE, NO.2

main86726-30030i199704-200004

9 parts on this diagram · 5 diagrams in section
