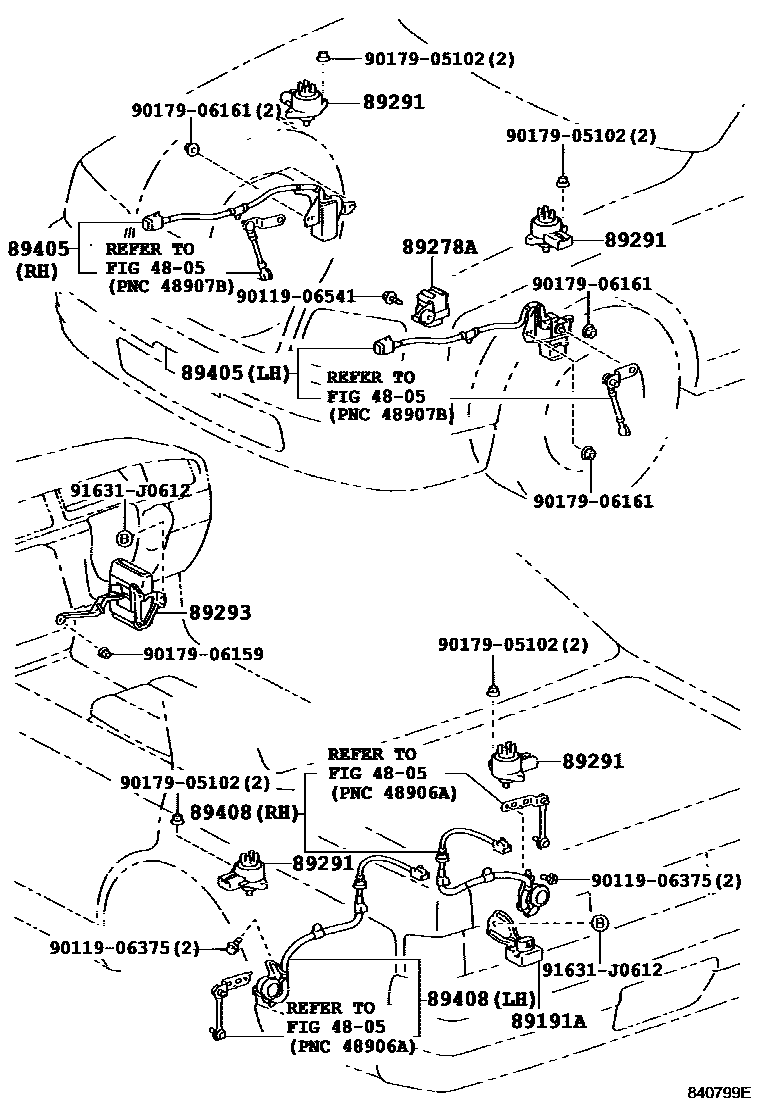

ELECTRONIC MODULATED SUSPENSION

0001 1 0002 1

4805HEIGHT CONTROL (AUTO-LEVELER)

→ Go to FIG 48-05

89191ASENSOR, ACCELERATION

main89191-50010iGZG50199704-200501

89278ARELAY, HEIGHT CONTROL

main89278-40020iGZG50199704-200501

89291ACTUATOR, SUSPENSION CONTROL, FRONT

main89291-50050×4iGZG50199704-200501

89293COMPUTER, SUSPENSION CONTROL

main89293-40010iGZG50199704-200501

main89293-40030iGZG50200501-200801

main89293-40031iGZG50200802

89405SENSOR SUB-ASSY, HEIGHT CONTROL, FRONT

main89405-40010iGZG50200501

main89405-50040iGZG50199704-199804

main89406-40010iGZG50200501

main89406-50040iGZG50199704-199804

89408SENSOR SUB-ASSY, HEIGHT CONTROL, REAR

main89407-40011iGZG50199704-199804

main89407-40012iGZG50200501

main89408-40011iGZG50199704-199804

main89408-40012iGZG50199804-200501

9011906375

main90119-06375

9011906541

main90119-06541

9017905102

main90179-05102

9017906159

main90179-06159

9017906161

main90179-06161

91631J0612

main91631-J0612

13 parts on this diagram · 2 diagrams in section
