EPC Data

INTERIOR LAMP

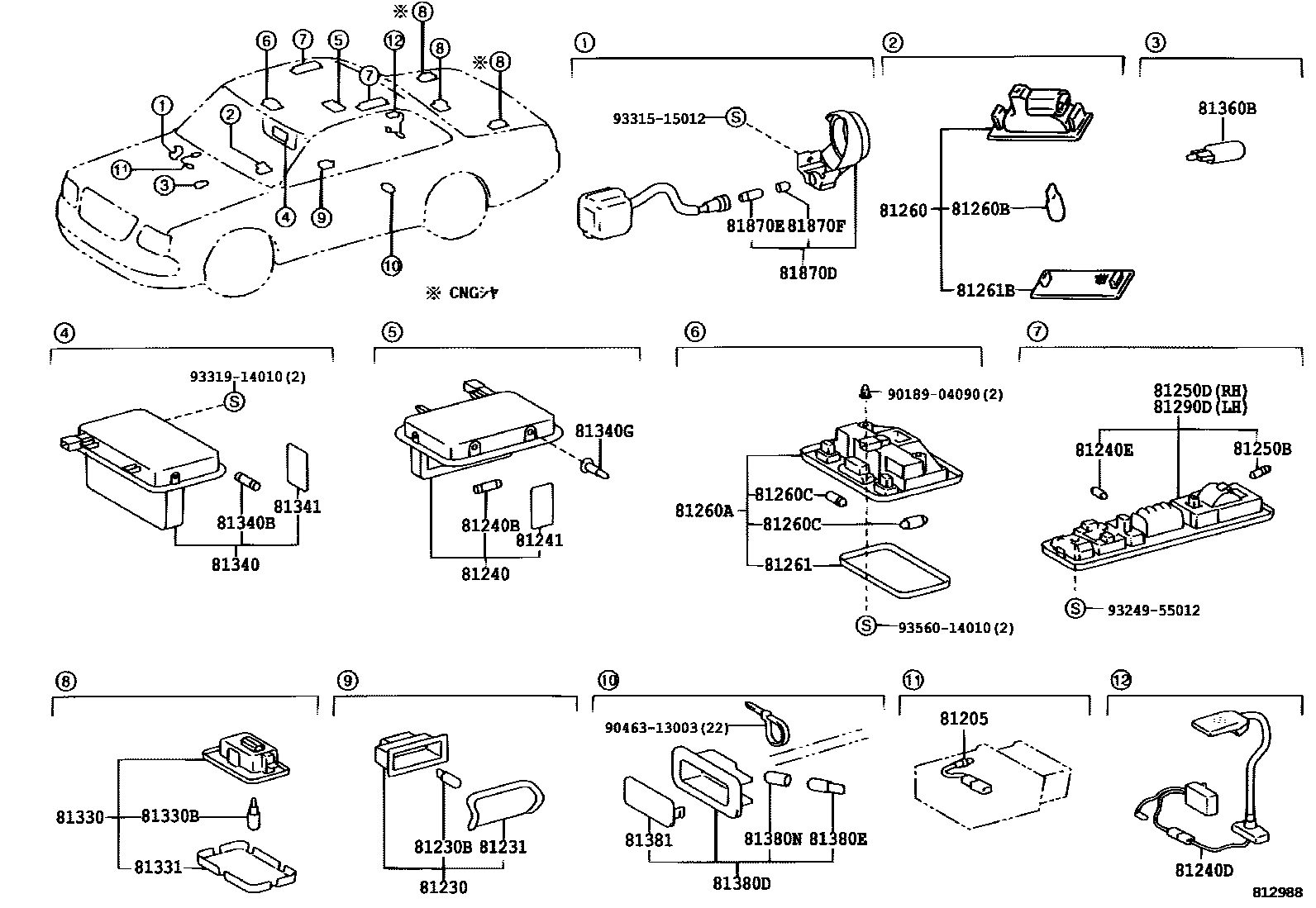

Parts diagram
81205LAMP SUB-ASSY, ASH RECEPTACLE
main81205-40030i199704-200501
81230LAMP ASSY, COURTESY
main81230-40030×4i200501
81230BBULB(FOR COURTESY LAMP)
main90981-12010×4i199704-200501
81231LENS, COURTESY LAMP
main81231-40030×4i199704-200501
81240LAMP ASSY, ROOM, NO.1
main81340-40010-B0i199704-200501
main81340-40010-B1i200501-201008
main81340-40010-E0i199704-200501
main81340-40011-B0i201009-201701
main81340-40011-B1i201009-201701
main81340-40011-E0i201009-201701
main81350-40010-B0i199704-200501
main81350-40010-B1i199704-200501
main81350-40010-E0i200501-201008
main81350-40011-B0i201009-201701
main81350-40011-B1i201009-201701
main81350-40011-E0i201009-201701
81240BBULB, ROOM LAMP, NO.1
main90981-14007×2i199704-200501
81240DLAMP ASSY, ROOM, NO.2
main81024-40010i200205-200501
81240EBULB, ROOM LAMP, NO.2
main99132-12100×2i200501
81241LENS, ROOM LAMP, NO.1
main81341-50060×2i200501
81250BBULB, ROOM LAMP, NO.2
main90981-12028×2i199704-200501
81250DLAMP ASSY, REAR ROOM, RH
main81250-40080-B0i200501-201701
LT.GRAY,TRIM1#
main81250-40080-B1i199704-200501
BLUE GRAY,TRIM8#
main81250-40080-E0i199704-200501
ORCHID,TRIM4#
81260LAMP ASSY, GLOVE BOX
main81260-43010×2i199704-200501
81260ALAMP ASSY, MAP
main81260-40050-B0i199704-200501
LT.GRAY,TRIM1#
main81260-40050-B1i199704-200501
BLUE GRAY,TRIM8#
main81260-40050-E0i199704-200501
ORCHID,TRIM4#
main81260-40080-B0i200501-201701
LT.GRAY,TRIM1#
main81260-40080-B1i200501-201701
BLUE GRAY,TRIM8#
main81260-40080-E0i200501-201701
ORCHID,TRIM4#
81260BBULB(FOR GLOVE BOX)
main90981-11018×2i199704-200501
81260CBULB(FOR MAP LAMP)
main90981-12028×2i200501
main90981-14006i199704-200501
81261LENS AND COVER, MAP LAMP
main81265-50060i199704-200501
81261BLENS,GLOVE BOX LAMP
main81261-50010×2i199704-200501
81290DLAMP ASSY, REAR ROOM, LH
main81290-40070-B0i199704-200501
LT.GRAY,TRIM1#
main81290-40070-B1i200501-201701
BLUE GRAY,TRIM8#
main81290-40070-E0i200501-201701
ORCHID,TRIM4#
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
main81330-50021i199704-200501
81330BBULB, LUGGAGE COMPARTMENT LAMP
main90981-11020i199704-200501
81331LENS, LUGGAGE COMPARTMENT LAMP
main81331-50010i199704-200501
81340LAMP ASSY, VANITY
main81340-40020-B0i200501-200801
main81340-40020-B1i199704-200501
main81340-40020-E0i199704-200501
main81340-40021-B0i200801-201305
main81340-40021-B1i200801-201305
main81340-40021-E0i200801-201305
main81340-40022-B0i201305-201701
main81340-40022-B1i201305-201701
main81340-40022-E0i201305-201701
main81350-40020-B0i200801-201701
main81350-40020-B1i200801-201701
main81350-40020-E0i199704-200501
81340BBULB (FOR VANITY LAMP)
main90981-14007×2i199704-200501
81340GCLIP (FOR VANITY LAMP)
main90467-07066-B3×4i199704-200501
BLUE GRAY,TRIM8#
main90467-07066-B9×4i199704-200501
LT.GRAY,TRIM1#
main90467-07066-E6×4i199704-200501
ORCHID,TRIM4#
81341LENS, VANITY LAMP
main81341-50060×2i200801-201701
81360BBULB, STEP OR SPOT LAMP
main90981-11041×2i199704-200501
81380DLAMP ASSY, STEP
main81380-40050-B2×2i199704-200501
MD.GRAY,TRIM1#
main81380-40050-B3×2i199704-200501
DK.BLUE GRAY,TRIM8#
main81380-40050-E0×2i199704-200501
ORCHID,TRIM4#
main81380-40070-B0×2i200501-201701
MD.GRAY,TRIM1#
main81380-40070-B1×2i200501-201701
DK.BLUE GRAY,TRIM8#
main81380-40070-E0×2i200501-201701
ORCHID,TRIM4#
81380EBULB (FOR STEP LAMP)
main90981-11018×2i199704-200501
81380NCAP, STEP LAMP
main81384-40020×2i199704-200501
81381LENS, STEP LAMP
main81383-40020×2i199704-200501
81870DLAMP ASSY, KEY CYLINDER
main81870-40020i199704-200501
81870EBULB, KEY CYLINDER LAMP
main90981-11014i199704-200501
81870FCAP, KEY CYLINDER LAMP BULB
main90339-04023i199704-200501
9018904090
main90189-04090
9046313003
main90463-13003
9324955012
main93249-55012
9331515012
main93315-15012
9331914010
main93319-14010
9356014010
main93560-14010

39 parts on this diagram · 2 diagrams in section
