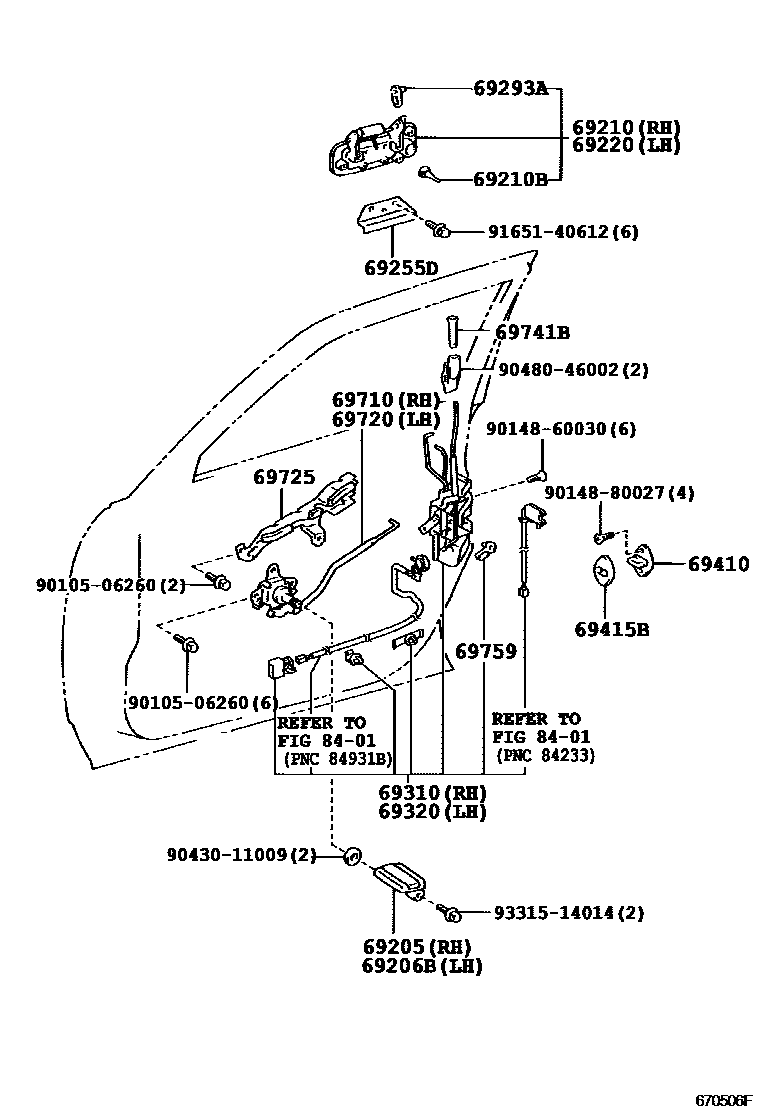

FRONT DOOR LOCK & HANDLE

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-40020iGZG50200501

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-40020iGZG50199704-200501

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-40040iGZG50199704-200501

main69210-40041iGZG50200801

69210BCUSHION(FOR FRONT DOOR OUTSIDE HANDLE)

main90541-04018×4iGZG50200801

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-40040iGZG50199704-200501

main69220-40041iGZG50200801

69255DPROTECTOR, DOOR OUTSIDE HANDLE

main69255-30030×2iGZG50199704-200501

69293ASNAP, FRONT DOOR OUTSIDE HANDLE

main69293-12050iGZG50199704-200501

main69293-12060iGZG50200801

69310LOCK ASSY, FRONT DOOR, RH

main69030-40070iGZG50199704-200501

69320LOCK ASSY, FRONT DOOR, LH

main69040-40070iGZG50199704-200501

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-50010×2iGZG50199704-200501

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-50010×2iGZG50199704-200501

69710LINK ASSY, FRONT DOOR OPEN CONTROL, RH

main69710-40050iGZG50199704-200501

69720LINK ASSY, FRONT DOOR OPEN CONTROL, LH

main69720-40050iGZG50199704-200501

69725PROTECTOR, FRONT DOOR INSIDE LOCKING LINK, RH

main69725-40010iGZG50199704-200501

69741BKNOB, FRONT DOOR LOCK CONTROL

main69077-40010×2iGZG50199704-200501

69759SNAP, DOOR LOCK CONTROL LINK, NO.1

main69759-14050iGZG50199704-200501

main69759-24070iGZG50200501

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010506260

main90105-06260

9014860030

main90148-60030

9014880027

main90148-80027

9043011009

main90430-11009

9048046002

main90480-46002

9165140612

main91651-40612

9331514014

main93315-14014

24 parts on this diagram · 1 diagram in section
