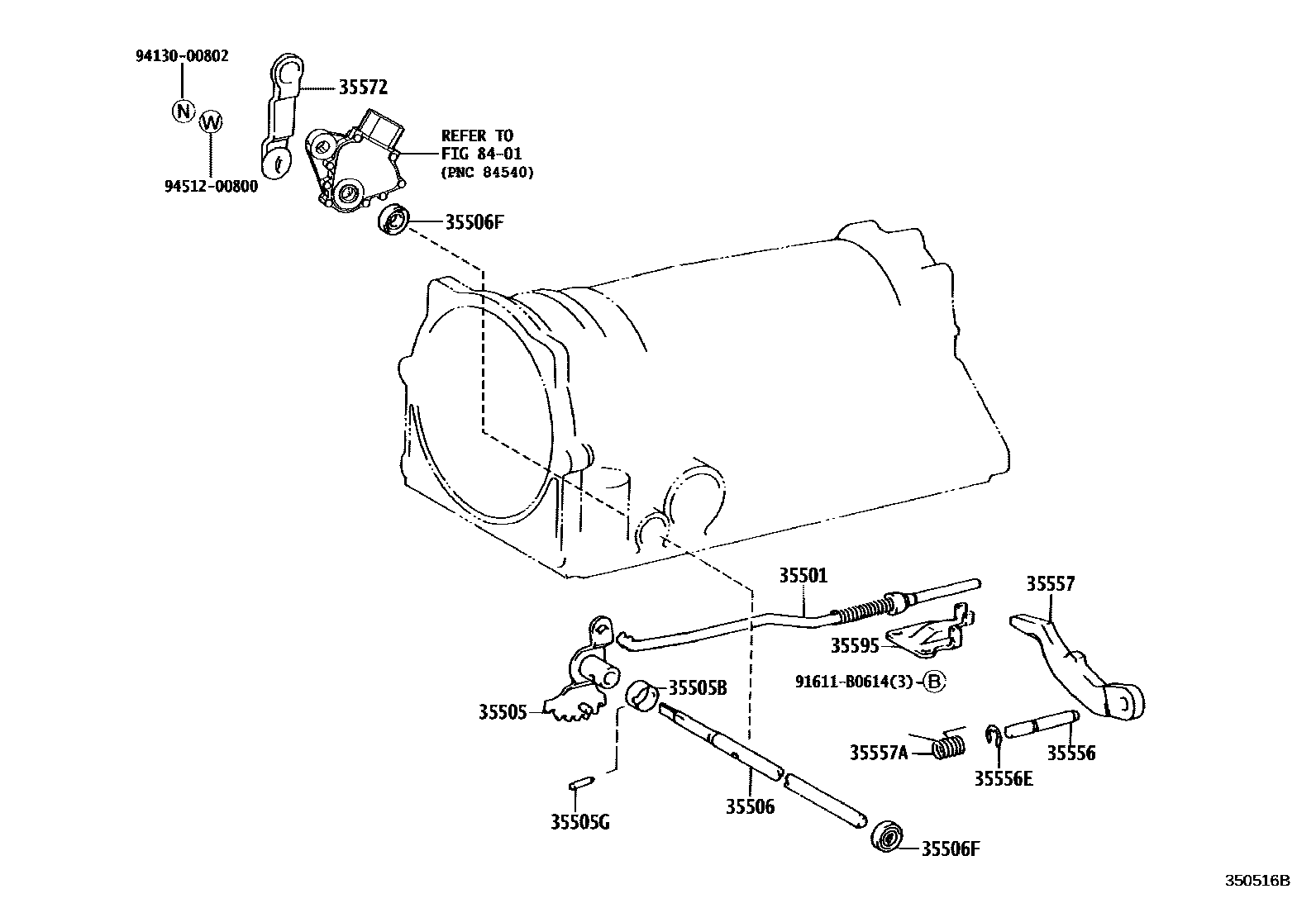

THROTTLE LINK & VALVE LEVER (ATM)

0001 1A342E 0002 1A761E

35501ROD SUB-ASSY, PARKING LOCK

main35501-50010iGZG50200501

main35501-60010iGZG50199704-200501

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-40020iGZG50..4HC199704-200501

main35505-50020iGZG50..4FC199704-200501

main35505-50030iGZG50..6FC200501-200507

main35505-53030iGZG50..6FC200508

main35505-60050iGZG50..6HC200501

35505BSPACER (FOR MANUAL VALVE LEVER)

main90560-20006iGZG50199704-200302

main90560-20025iGZG50200302-200501

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iGZG50199704-200501

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35561-30070iGZG50199704-200501

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002×2iGZG50199704-200501

35556SHAFT, PARKING LOCK PAWL

main35556-30020iGZG50199704-200501

main35556-60020iGZG50200501

35556ERING, E (FOR PARKING LOCK PAWL SHAFT)

main90523-08021iGZG50199704-200501

35557PAWL, PARKING LOCK

main35557-60020iGZG50199704-200501

main35590-50010iGZG50200501-201409

main35590-50030iGZG50201409

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90508-21002iGZG50199704-200501

main90949-03130iGZG50200501

35572LEVER, TRANSMISSION CONTROL SHAFT, RH

main35572-30070iGZG50..6FC200501

main35572-50020iGZG50..4FC199704-200501

35595BRACKET, PARKING LOCK PAWL

main35595-50010iGZG50200501

main35595-60010iGZG50199704-200501

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

91611B0614

main91611-B0614

9413000802

main94130-00802

9451200800

main94512-00800

16 parts on this diagram · 2 diagrams in section
