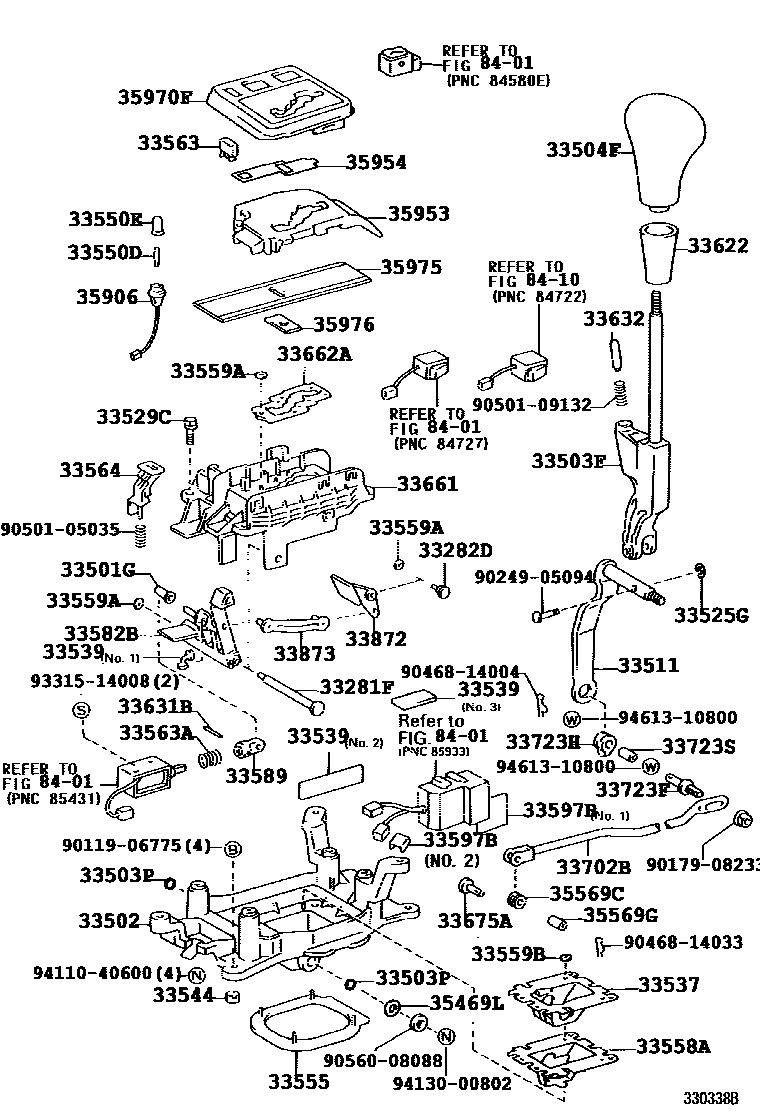

SHIFT LEVER & RETAINER
33281FPIN, LEVER LOCK (FOR FLOOR SHIFT)
33282DPIN, LEVER LOCK, NO.2
33501GBUSH (FOR FLOOR SHIFT CONTROL SHAFT)
33502PLATE SUB-ASSY, SHIFT LEVER
33503FLEVER SUB-ASSY, SHIFT(FOR FLOOR SHIFT)
33503PRING, O(FOR SHIFT LEVER)
33504FKNOB SUB-ASSY, SHIFT LEVER
BLACK,TRIM1#,8#
ORCHID BROWN,TRIM4#
4-SPOKE,WOOD,BLACK,TRIM1#,8#
4-SPOKE,WOOD,ORCHID BROWN,TRIM4#
BLACK,TRIM1#,8#
ORCHID BROWN,TRIM4#
33511SHAFT, CONTROL (FOR FLOOR SHIFT)
33525GRING, SHIFT LEVER
33529CBOLT, SHIFT LEVER
33537PLATE, CONTROL LEVER
33539CUSHION, SHIFT LEVER ANTI-RATTLE
33544INSERT, SHIFT LEVER, NO.1
33550DBULB, POSITION INDICATOR LAMP
33550ECAP, POSITION INDICATOR LAMP
33555BOOT, SHIFT LEVER
33558ASEAL, SHIFT LEVER BOOT DUST, NO.1
33559ANUT, SHIFT LEVER, NO.1
33559BNUT, SHIFT LEVER, NO.2
33563BUTTON, SHIFT LOCK RELEASE
33563ASPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33564LINK, SHIFT LOCK RELEASE, NO.1
33582BSTOPPER, SHIFT LOCK PLATE (FOR FLOOR SHIFT)
33589LINK, SHIFT LOCK SOLENOID
33597BSEAT, SHIFT LEVER, NO.1 (FOR FLOOR SHIFT)
33622COVER, SHIFT LEVER KNOB, NO.1
33631BPIN, SLOTTED SPRING (FOR DETENT ROD)
33632ROD, DETENT, NO.2
33661HOUSING, SHIFT LEVER GUIDE
33662ACUSHION, SHIFT LEVER GUIDE
33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)
33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)
33723FSWIVEL, CONNECTING ROD (FOR FLOOR SHIFT)
33723HGROMMET (FOR FLOOR SHIFT CONTROL SHAFT)
33723SBUSH (FOR CONNECTING ROD SWIVEL)
33872LINK, SHIFT LOCK RELEASE, NO.2
33873LINK, SHIFT LOCK RELEASE, NO.3
35469LSPACER, SHIFT LEVER
35569CGROMMET (FOR TRANSMISSION CONTROL ROD)
35569GBUSH (FOR TRANSMISSION CONTROL ROD)
35906WIRE SUB-ASSY, INDICATOR LAMP
35953GUIDE, POSITION INDICATOR LIGHT
35954SHEET, POSITION INDICATOR
35970FHOUSING ASSY, POSITION INDICATOR
35975COVER, SLIDE (FOR POSITION INDICATOR)
35976COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
8401SWITCH & RELAY & COMPUTER
8410OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION
9011906775
main90119-06775
9017908233
main90179-08233
9024905094
main90249-05094
9046814004
main90468-14004
9046814033
main90468-14033
9050105035
main90501-05035
9050109132
main90501-09132
9056008088
main90560-08088
9331514008
main93315-14008
9411040600
main94110-40600
9413000802
main94130-00802
9461310800
main94613-10800
60 parts on this diagram · 2 diagrams in section
