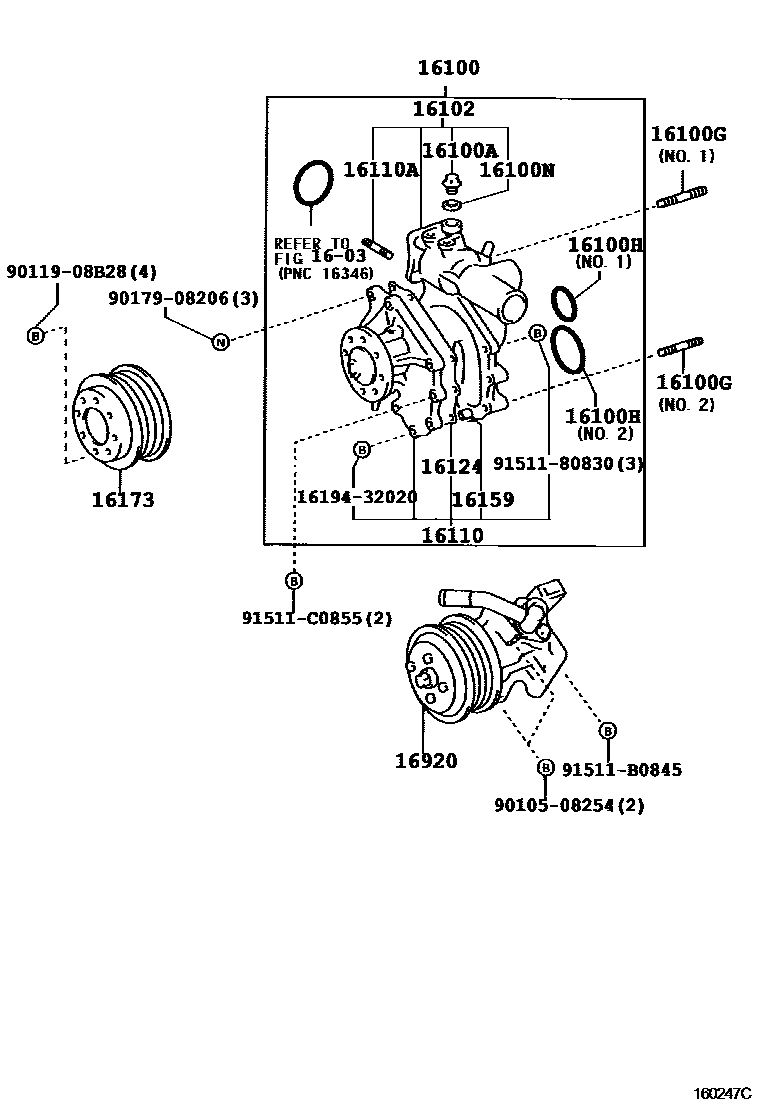

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-39385i1GZFE..GZG50199704-200008

main16100-39386i1GZFE..GZG50200008-200501

16100APLUG, WATER PUMP

main90341-20011i1GZFE..GZG50199704-200501

16100GBOLT, STUD(FOR WATER PUMP SET)

main90116-08390i1GZFE..GZG50199704-200501

main92122-B0845i1GZFE..GZG50199704-200501

16100HRING, O(FOR WATER PUMP)

main90301-24019i1GZFE..GZG50199704-200501

main90301-46006i1GZFE..GZG50199704-200501

16100NGASKET(FOR WATER PUMP PLUG)

main90430-20004i1GZFE..GZG50199704-200501

16102COVER SUB-ASSY, WATER PUMP

main16102-32020i1GZFE..GZG50199704-200501

16110PUMP ASSY, WATER, W/O COUPLING

main16110-39045i1GZFE..GZG50199704-200008

main16110-39046i1GZFE..GZG50200008-200501

16110ABOLT, STUD(FOR WATER OUTLET SETTING)

main16193-32020i1GZFE..GZG50199704-200008

main92122-B0825i1GZFE..GZG50200008-200501

16124GASKET, WATER PUMP COVER

main16124-32020i1GZFE..GZG50199704-200008

main16124-32021i1GZFE..GZG50200008-200501

16159PIN(FOR WATER PUMP)

main16159-71010i1GZFE..GZG50199704-200501

16173PULLEY, WATER PUMP

main16173-32010i1GZFE..GZG50199704-200501

16920PUMP ASSY, HYDRAULIC MOTOR VANE

main16920-32010i1GZFE..GZG50199704-200501

1619432020BOLT, STUD(FOR WATER OUTLET SETTING)

main16194-32020

9010508254

main90105-08254

9011908B28

main90119-08B28

9017908206

main90179-08206

9151180830

main91511-80830

91511B0845

main91511-B0845

91511C0855

main91511-C0855

20 parts on this diagram · 1 diagram in section
