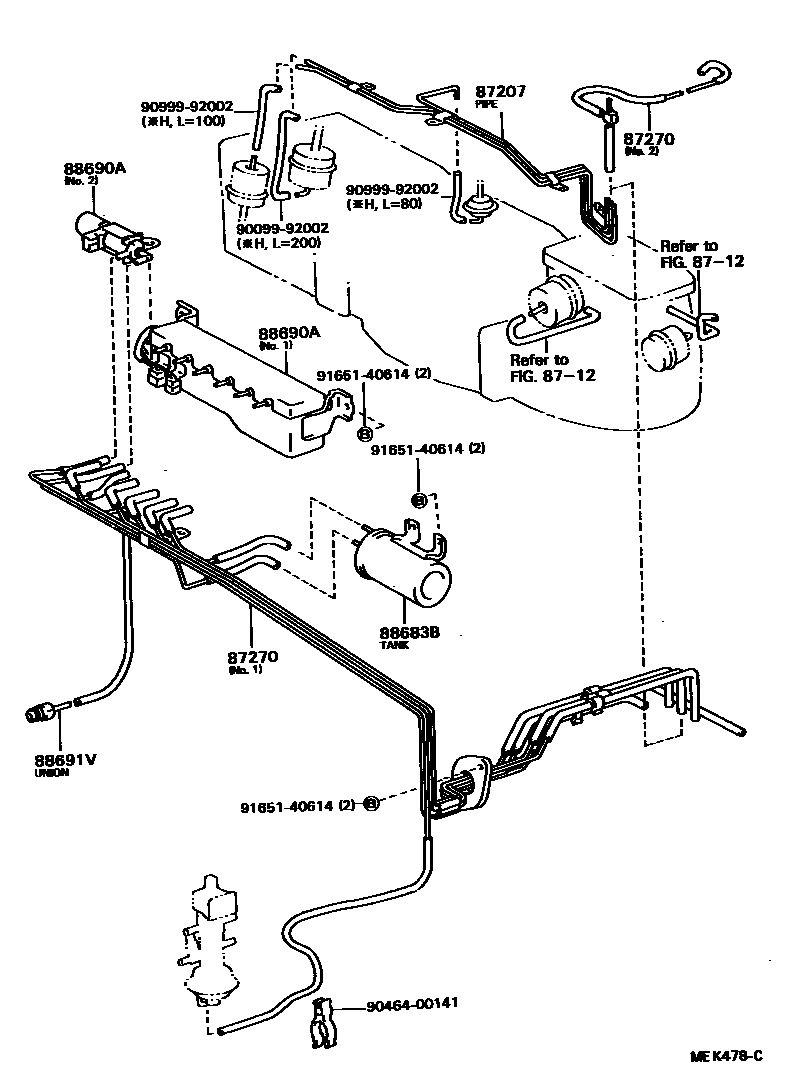

HEATING & AIR CONDITIONING - VACUUM PIPING

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

87207PIPE SUB-ASSY, VACUUM

main87207-40010iVG4#198709-199701

87270PIPE ASSY, VACUUM

main87270-40020iVG40198709-199009

main87270-91401iVG45..4HC198910-199701

88683BTANK, VACUUM

main88683-40050iVG4#198709-199701

88690AVALVE ASSY, COMBINATION

main88691-40050iVG4#198709-199701

main88691-90K01iVG4#198709-199701

88691VUNION (FOR VACUUM PIPE)

main90404-51010iVG4#198709-199701

9009992002

main90099-92002

9046400141

main90464-00141

9099992002

main90999-92002

9165140614

main91651-40614

10 parts on this diagram · 1 diagram in section
