CAMERA & REAR MONITOR DISPLAY

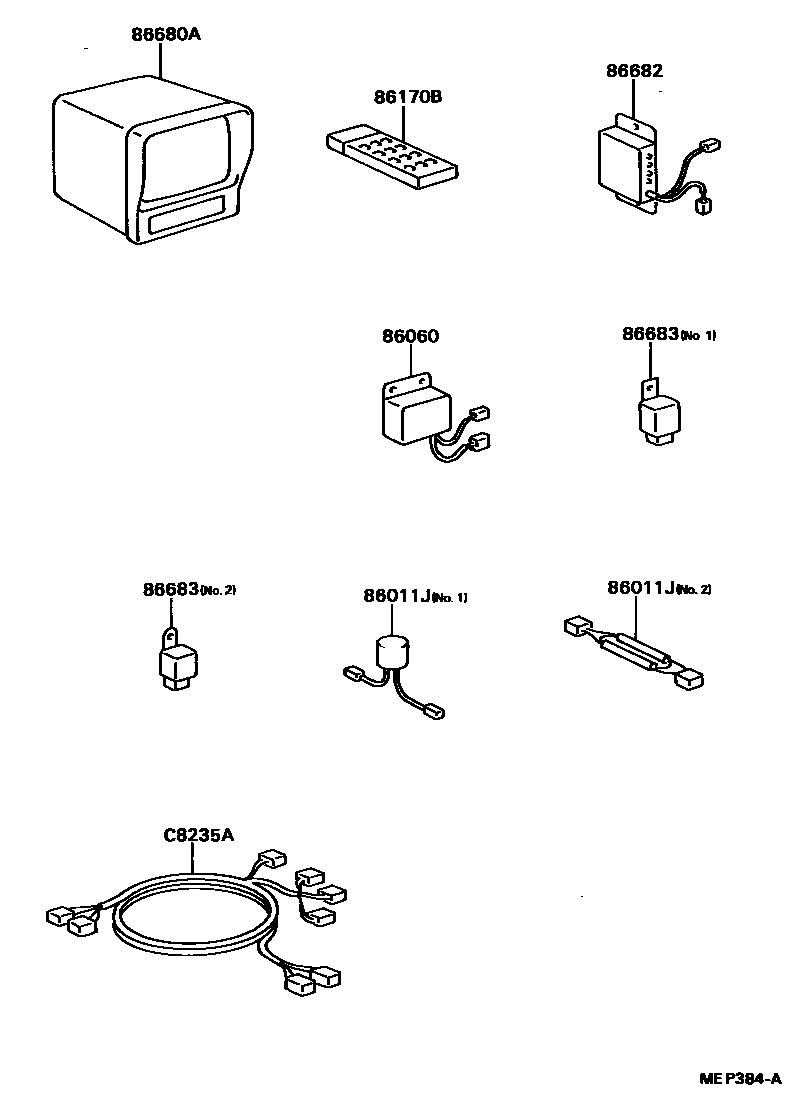

Parts diagram

86011JFILTER, NOISE

main90980-05172i198910-199009

main90980-05173i198910-199009

86060AMPLIFIER ASSY, TELEVISION

main86060-40010i198910-199009

86170BSWITCH & VOLUME ASSY, TELEVISION

main86170-40050i198910-199009

86680ADISPLAY ASSY, TELEVISION

main86680-40010i199009-199212

86682CONTROLLER, TELEVISION ANTENNA

main86682-40010i199009-199212

86683RELAY, TELEVISION

main86683-40010i199009-199212

main86683-40020i199009-199212

C8235AWIRE, TELEVISION

mainC823582120i199009-199701

7 parts on this diagram · 1 diagram in section
