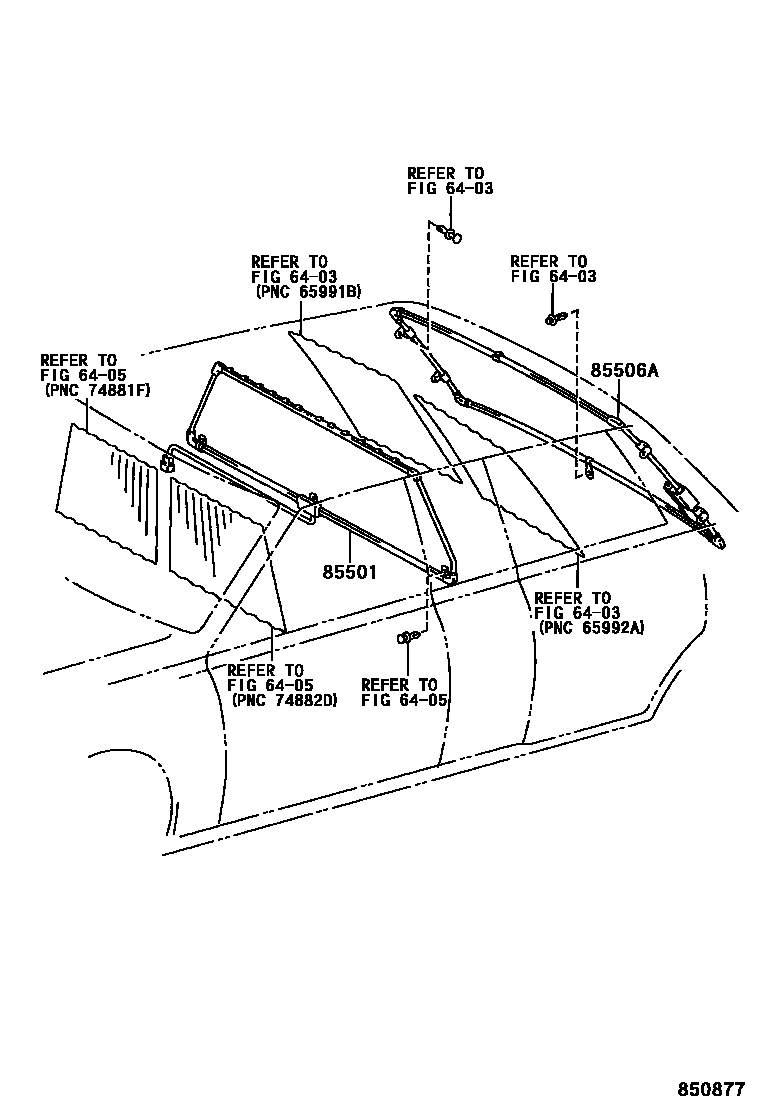

POWER CURTAIN

6403PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

→ Go to FIG 64-03

6405ROOM SEPARATION TRIM

→ Go to FIG 64-05

85501RAIL SUB-ASSY, POWER CURTAIN

main85501-91401-02iVG40..4HC..E198910-199009

MAROON,TRIM3#

main85501-91401-03iVG45..4HC199009-199212

SHADOW GRAY,TRIM1#,2#

main85501-91401-04iVG40..4HC..E198910-199009

DARK BLUE,TRIM8#

main85501-91401-B0iVG45..4HC199212-199701

SHADOW GRAY,TRIM1#

main85501-91401-E0iVG45..4HC199212-199701

SABLE,TRIM4#

main85501-91401-J0iVG45..4HC199212-199701

DARK BLUE,TRIM8#

85506ARAIL SUB-ASSY, POWER CURTAIN BACK

main85506-40010-B1iVG4#199212-199701

SHADOW GRAY,TRIM1#

main85506-40010-E1iVG4#..E,L199212-199701

SABLE,TRIM4#

main85506-40010-J0iVG4#199212-199701

DARK BLUE,TRIM8#

main85506-91401-02iVG4#..E,L198910-199212

MAROON,TRIM3#

main85506-91401-03iVG4#..E,L; VG40..D199009-199212

SHADOW GRAY,TRIM1#; SHADOW GRAY,TRIM1#,2#

main85506-91401-04iVG40..E198910-199009

DARK BLUE,TRIM8#

4 parts on this diagram · 1 diagram in section
