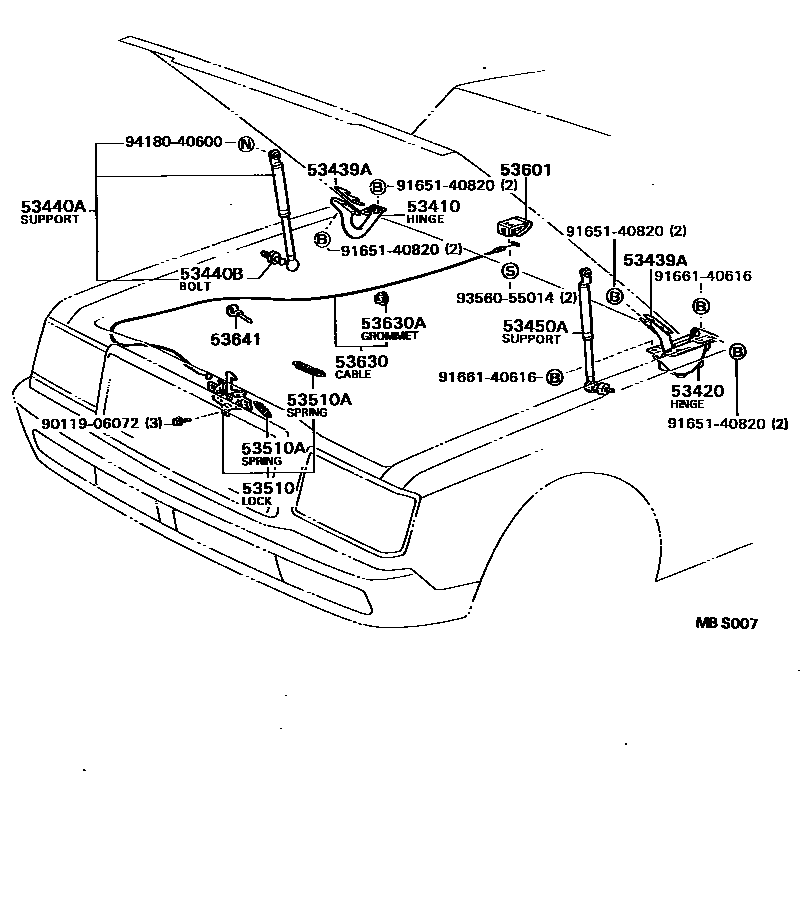

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-91405iVG4#198709-199701

53420HINGE ASSY, HOOD, LH

main53420-91405iVG4#198709-199701

53439ASHIM, HOOD HINGE

main53439-91401iVG4#198709-199701

53440ASUPPORT ASSY, HOOD, RH

main53440-49025iVG4#198709-199212

main53440-49035iVG4#199212-199701

53440BBOLT, HOOD SUPPORT, NO.1

main68961-23010×2iVG4#198709-199212

main68961-40010×2iVG4#199212-199701

53450ASUPPORT ASSY, HOOD, LH

main53440-49025iVG4#198709-199212

main53440-49035iVG4#199212-199701

53510LOCK ASSY, HOOD

main53510-40010iVG4#199212-199701

main53510-91402iVG4#198709-199212

53510ASPRING, TENSION(FOR HOOD LOCK)

main90506-09008iVG4#199009-199212

main90506-09052iVG4#199212-199701

main90506-18024iVG4#199009-199701

WD=1.8,CW=18,OD=15.3

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-14010-11iVG40..E198709-199009

NEW BLACK,TRIM2#

main53601-14010-23iVG40198709-199005

SHADOW GRAY,TRIM1#

main53601-14010-25iVG40198709-199005

DARK BEIGE,TRIM8#

main53601-14010-32iVG4#..E,L198709-199212

MAROON,TRIM3#

main53601-14010-E0iVG4#..E,L199212-199701

SABLE,TRIM4#

main53601-14010-P0iVG4#199212-199701

SHADOW GRAY,TRIM1#

main53601-14010-R8iVG4#199212-199701

DARK BLUE,TRIM8#

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-40020iVG4#199212-199701

main53630-91402iVG40198709-199005

53630AGROMMET(FOR HOOD LOCK CONTROL CABLE)

main90480-15001iVG4#..E,L;VG40..4FC..D199005-199701

53641CLAMP, HOOD LOCK CONTROL WIRE

main90463-12014×2iVG40198709-199005

main90464-00355×2iVG4#199210-199701

9011906072

main90119-06072

9165140820

main91651-40820

9166140616

main91661-40616

9356055014

main93560-55014

9418040600

main94180-40600

17 parts on this diagram · 1 diagram in section
