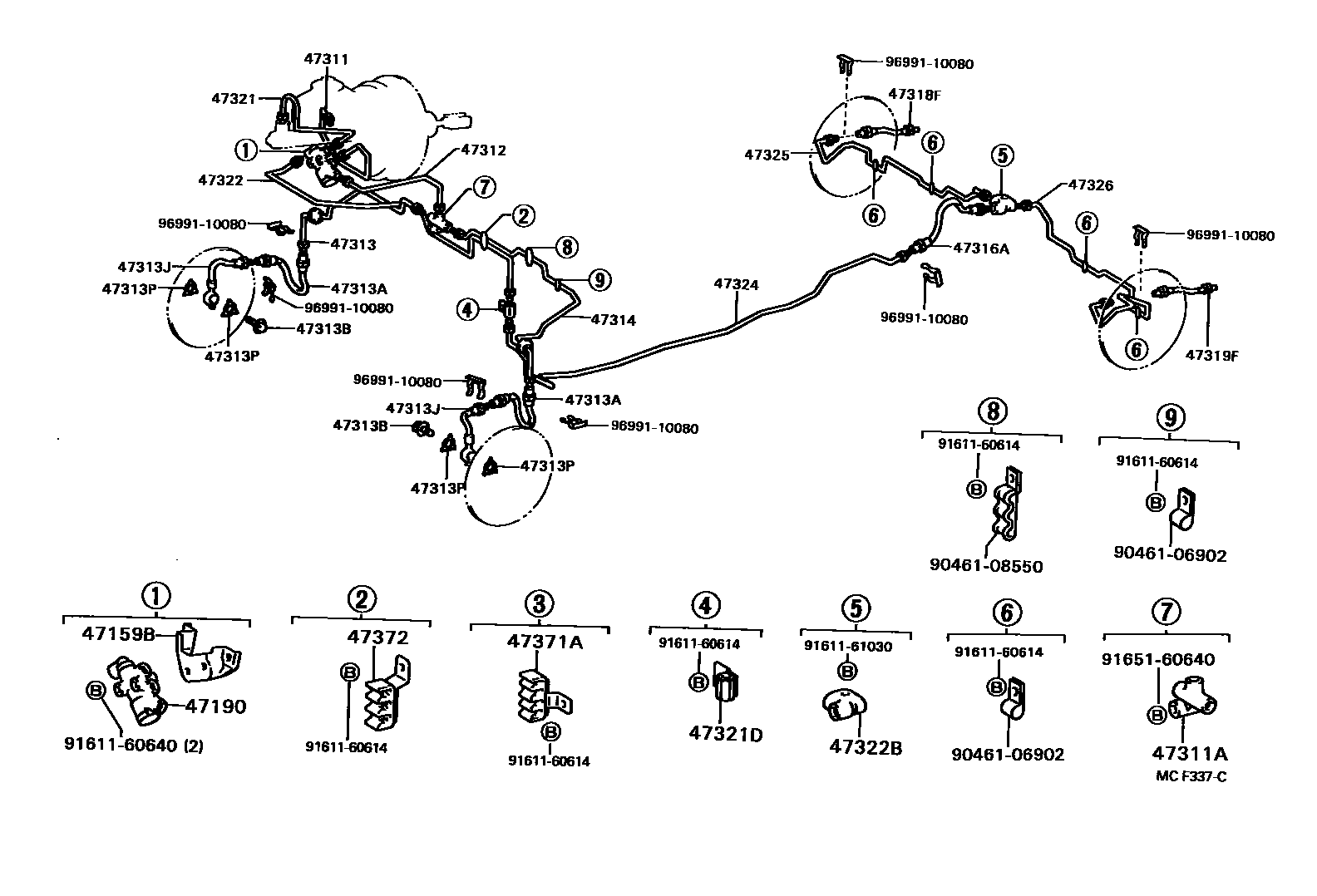

BRAKE TUBE & CLAMP
47159BBRACKET, PROPORTIONING & BY-PASS VALVE
47190VALVE ASSY, PROPORTIONING & BY-PASS
47311AWAY(FOR FRONT BRAKE TUBE)
47312TUBE, FRONT BRAKE, NO.2
47313TUBE, FRONT BRAKE, NO.3
47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)
47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)
47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)
47313PGASKET(FOR FRONT FLEXIBLE HOSE)
47314TUBE, FRONT BRAKE, NO.4
47316AHOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
47318FHOSE, FLEXIBLE(FOR REAR RH)
47319FHOSE, FLEXIBLE(FOR REAR LH)
47321DWAY, NO.1(FOR REAR BRAKE TUBE)
47322TUBE, REAR BRAKE, NO.2
47322BWAY, NO.2(FOR REAR BRAKE TUBE)
47324TUBE, REAR BRAKE, NO.4
47371ACLAMP, BRAKE TUBE, NO.1
47372CLAMP, BRAKE TUBE, NO.2
9046106902
main90461-06902
9046108550
main90461-08550
9161160614
main91611-60614
9161160640
main91611-60640
9161161030
main91611-61030
9165160640
main91651-60640
9699110080
main96991-10080
30 parts on this diagram · 3 diagrams in section
