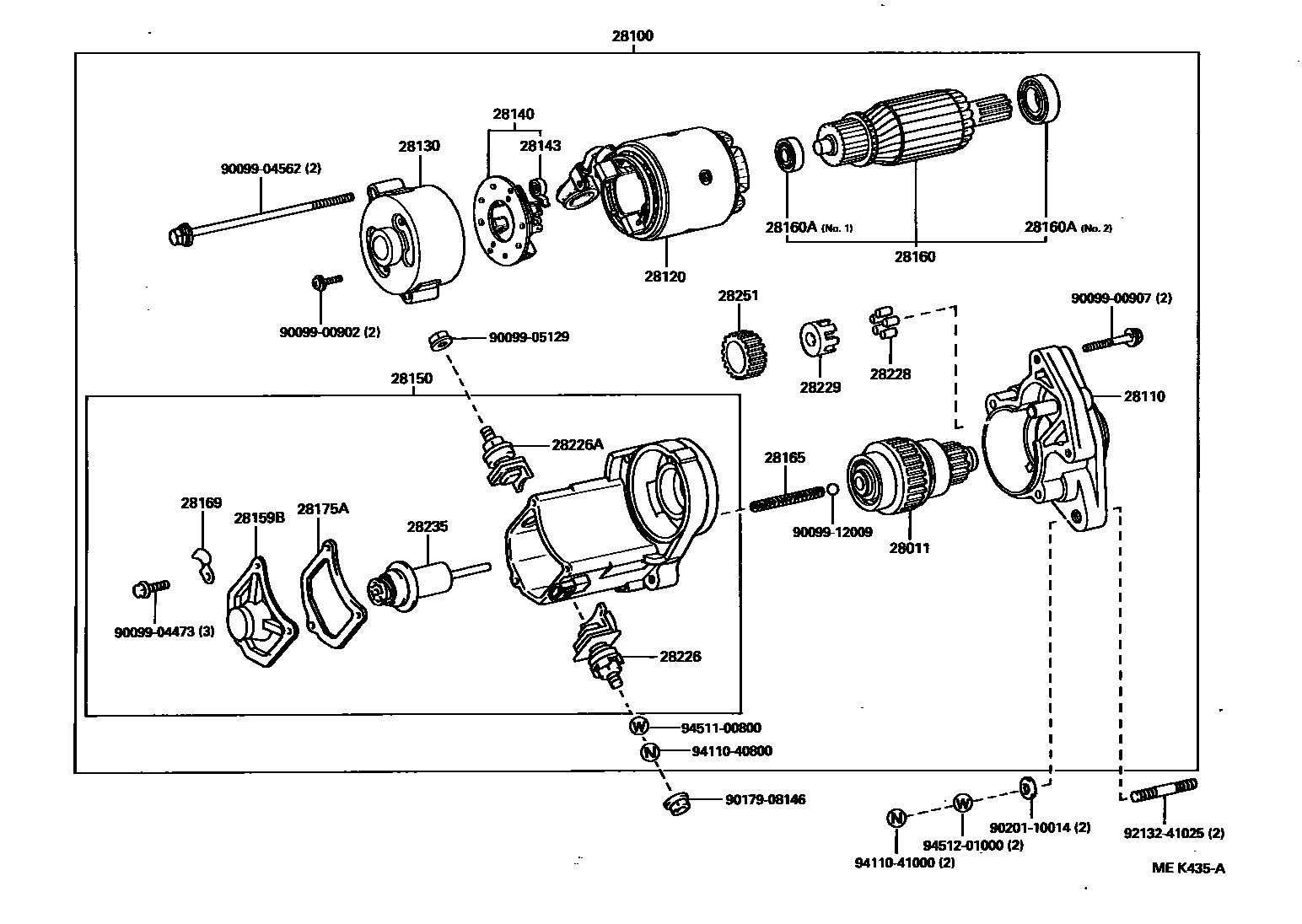

STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-51040i5VEU..VG4#198709-199701

28100STARTER ASSY

main28100-51040i5VEU..VG4#198709-199701

28110HOUSING ASSY, STARTER DRIVE

main28110-51040i5VEU..VG4#198709-199105

main28110-51041i5VEU..VG4#199105-199701

28120YOKE ASSY, STARTER

main28120-26071i5VEU..VG4#198709-199701

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-51040i5VEU..VG4#198709-199701

28140HOLDER ASSY, STARTER BRUSH

main28140-26070i5VEU..VG4#198709-199701

28143SPRING, STARTER BRUSH

main90099-17112×4i5VEU..VG4#198709-199701

28150SWITCH ASSY, MAGNET STARTER

main28150-51040i5VEU..VG4#198709-199701

28159BCOVER, MAGNET SWITCH

main28159-10040i5VEU..VG4#198709-199701

28160ARMATURE ASSY, STARTER

main28160-26070i5VEU..VG40198709-198908

main28160-26071i5VEU..VG4#198908-199701

28160ABEARING, STARTER ARMATURE

main28253-45020i5VEU..VG4#198709-199701

main90099-10113i5VEU..VG4#198709-199701

28165SPRING, STARTER MAGNET SWITCH RETURN

main28165-26040i5VEU..VG4#198709-199701

28169CLAMP, STARTER MOTOR LEAD WIRE

main28169-10040i5VEU..VG4#198709-199701

28175AGASKET, MAGNET SWITCH COVER

main28175-10040i5VEU..VG4#198709-199701

28226STARTER KIT, BATTERY TERMINAL

main28226-72080i5VEU..VG4#198709-199701

28226ASTARTER KIT, MOTOR TERMINAL

main28226-72010i5VEU..VG4#198709-199701

28228ROLLER, STARTER IDLE GEAR CLUTCH

main28228-26040×5i5VEU..VG4#198709-199701

28229RETAINER, STARTER IDLE GEAR

main28229-26040i5VEU..VG4#198709-199701

28235PLUNGER, MAGNET SWITCH

main28235-35080i5VEU..VG4#198709-199701

28251PINION, STARTER DRIVE

main28254-45020i5VEU..VG4#198709-199701

9009900902

main90099-00902

9009900907

main90099-00907

9009904473

main90099-04473

9009904562

main90099-04562

9009905129

main90099-05129

9009912009

main90099-12009

9017908146

main90179-08146

9020110014

main90201-10014

9213241025

main92132-41025

9411040800

main94110-40800

9411041000

main94110-41000

9451100800

main94511-00800

9451201000

main94512-01000

33 parts on this diagram · 1 diagram in section
