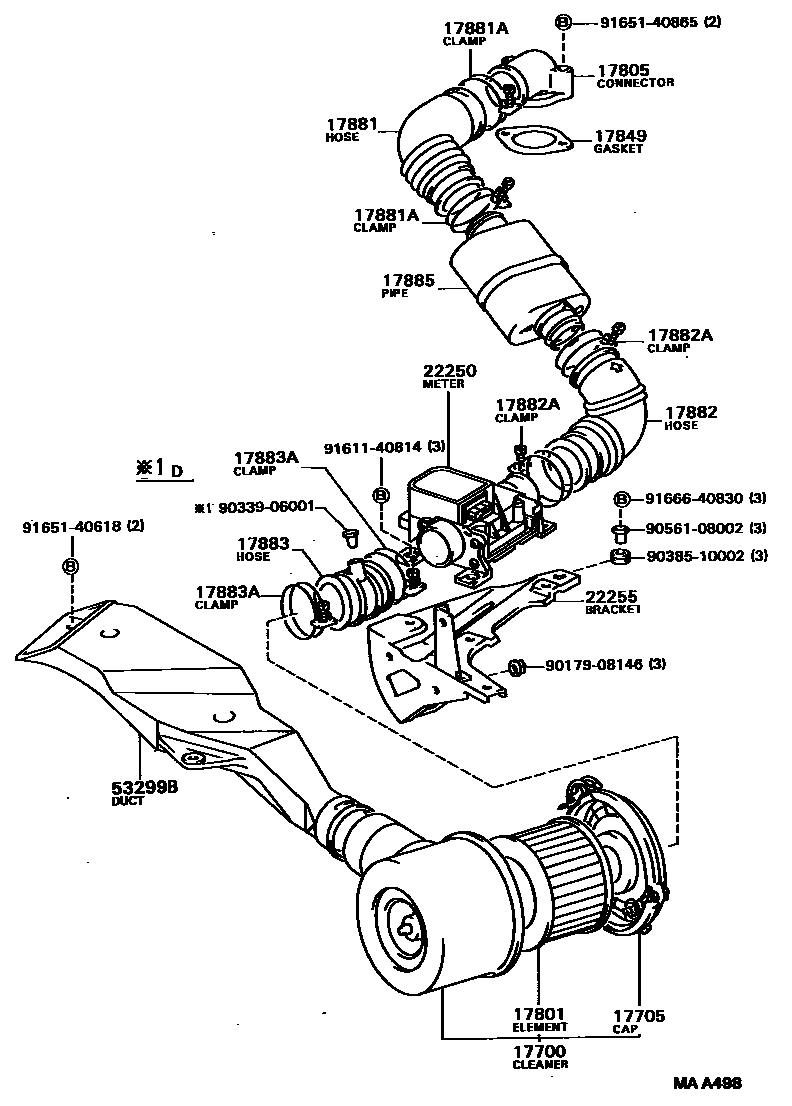

AIR CLEANER

17700CLEANER ASSY, AIR

main17700-52040i5VEU..VG4#198709-199701

17705CAP SUB-ASSY, AIR CLEANER

main17705-41140i5VEU..VG4#198709-199701

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-41110i5VEU..VG4#198709-199701

17805CONNECTOR SUB-ASSY, INTAKE AIR

main17805-52021i5VEU..VG4#198709-199701

17849GASKET, INTAKE AIR CONNECTOR

main17849-52020i5VEU..VG40198709-199009

main17849-52021i5VEU..VG4#199009-199701

17881HOSE, AIR CLEANER, NO.1

main17881-52020i5VEU..VG40198709-198803

main17881-52021i5VEU..VG4#198803-199701

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10800×2i5VEU..VG4#198709-199701

17882HOSE, AIR CLEANER, NO.2

main17882-52030i5VEU..VG4#198709-199701

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main96111-10800×2i5VEU..VG4#198709-199701

17883HOSE, AIR CLEANER, NO.3

main17883-52010i5VEU..VG4#198709-199701

17883ACLAMP(FOR AIR CLEANER HOSE, NO.3)

main96111-10800×2i5VEU..VG4#198709-199701

17885PIPE, AIR CLEANER

main17885-52010i5VEU..VG4#198709-199701

22250METER ASSY, INTAKE AIR FLOW

main22250-52020i5VEU..VG4#198709-199701

22255BRACKET, AIR FLOW METER

main22209-52010i5VEU..VG4#198709-199701

53299BDUCT, COOL AIR INTAKE

main53299-40010iVG4#199404-199701

main53299-91401iVG4#198709-199404

9017908146

main90179-08146

9033906001

main90339-06001

9038510002

main90385-10002

9056108002

main90561-08002

9161140814

main91611-40814

9165140618

main91651-40618

9165140865

main91651-40865

9166640830

main91666-40830

23 parts on this diagram · 1 diagram in section
