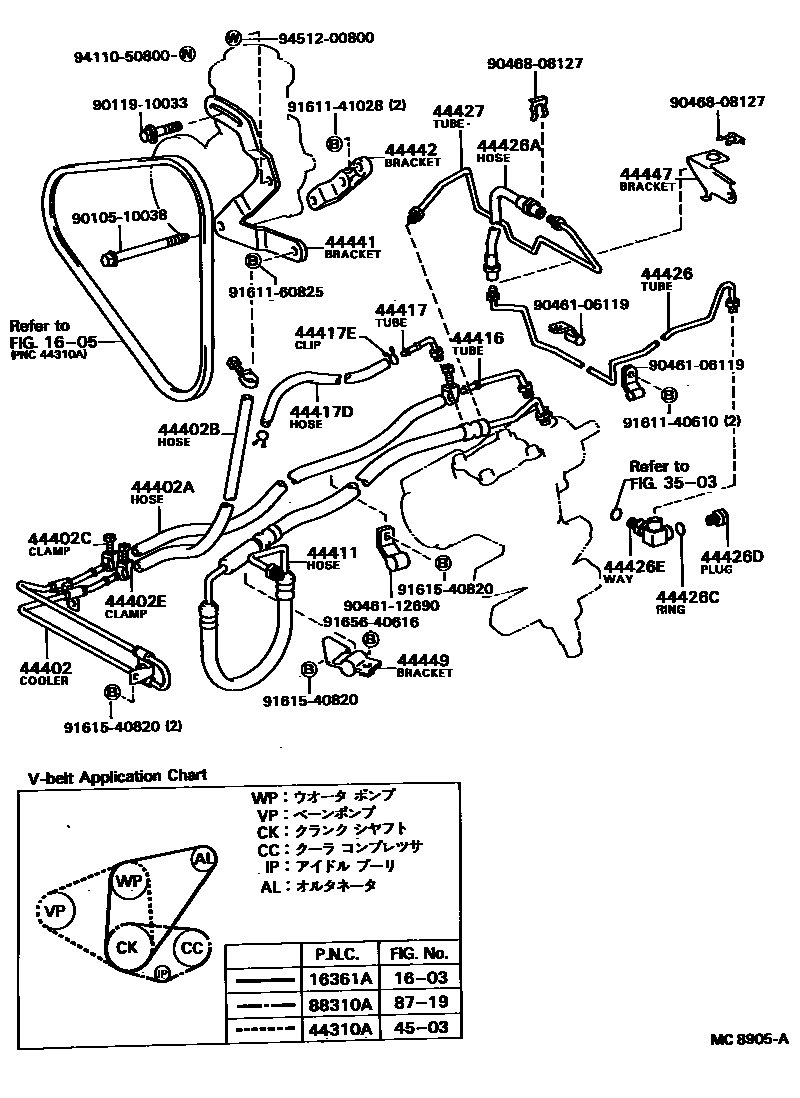

POWER STEERING TUBE
1603RADIATOR & WATER OUTLET
1605V-BELT
16361ABELT, V(FOR FAN & ALTERNATOR)
3503TRANSMISSION CASE & OIL PAN (ATM)
44310ABELT, V(FOR VANE PUMP)
44402COOLER SUB-ASSY, POWER STEERING OIL, NO.1
44402AHOSE, POWER STEERING OIL COOLER INLET
44402BHOSE, POWER STEERING OIL COOLER OUTLET
44402CCLAMP, POWER STEERING OIL COOLER INLET HOSE
44402ECLAMP, POWER STEERING OIL COOLER OUTLET HOSE
44411HOSE, PRESSURE FEED
44416TUBE, RETURN(FOR STEERING GEAR OUTLET)
44417TUBE, RETURN, NO.2
44417DHOSE(FOR RETURN TUBE TO RESERVOIR)
44417ECLIP, HOSE(FOR RETURN TUBE TO RESERVOIR HOSE)
44426TUBE, TRANSMISSION TO BY-PASS VALVE, NO.1
44426AHOSE, FLEXIBLE(FOR TUBE NO.2 TO TUBE NO.1)
44426CRING, O(FOR TRANSMISSION TO BY-PASS VALVE TUBE WAY)
44426DPLUG(FOR TRANSMISSION TO BY-PASS VALVE TUBE WAY)
44426EWAY(FOR TRANSMISSION TO BY-PASS VALVE TUBE)
44427TUBE, TRANSMISSION TO BY-PASS VALVE, NO.2
44441BRACKET, PUMP, FRONT
44442BRACKET, PUMP, REAR
44447BRACKET, POWER STEERING OIL COOLER TUBE SUPPORT
44449BRACKET, PRESSURE FEED HOSE SUPPORT, NO.2
4503POWER STEERING TUBE
8719HEATING & AIR CONDITIONING - COMPRESSOR
88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
9010510038
main90105-10038
9011910033
main90119-10033
9046106119
main90461-06119
9046112690
main90461-12690
9046808127
main90468-08127
9161140610
main91611-40610
9161141028
main91611-41028
9161160825
main91611-60825
9161540820
main91615-40820
9165640616
main91656-40616
9411050800
main94110-50800
9451200800
main94512-00800
40 parts on this diagram · 1 diagram in section
