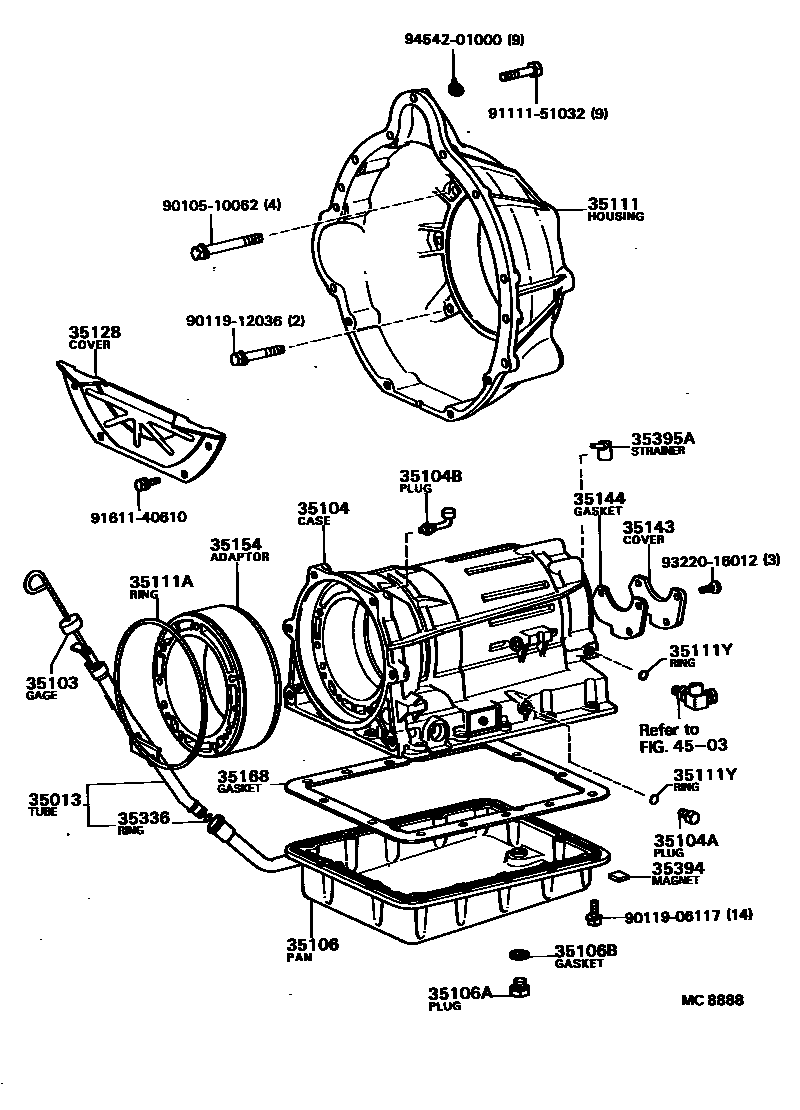

TRANSMISSION CASE & OIL PAN (ATM)

35013TUBE SUB-ASSY, TRANSMISSION OIL FILLER

main35013-40040iVG40198210-198709

35103GAGE SUB-ASSY, TRANSMISSION OIL LEVEL

main35103-40020iVG40198210-198309

main35103-40021iVG40198309-198709

35104CASE SUB-ASSY, AUTOMATIC TRANSMISSION

main35104-40011iVG40198210-198410

main35104-40020iVG40198410-198709

35104APLUG, AUTOMATIC TRANSMISSION CASE

main90341-08001iVG40198210-198709

35104BPLUG, BREATHER, NO.1 (ATM)

main90930-03069iVG40198210-198709

35106PAN SUB-ASSY, AUTOMATIC TRANSMISSION OIL

main35106-40010iVG40198210-198709

35106APLUG SUB-ASSY, DRAIN (ATM)

main90341-10003iVG40198210-198307

main90341-10006iVG40198307-198709

35106BGASKET, DRAIN PLUG (ATM)

main35178-30010iVG40198210-198709

35111HOUSING, AUTOMATIC TRANSMISSION

main35111-40030iVG40198210-198709

35111ARING, O (FOR AUTOMATIC TRANSMISSION HOUSING)

main90301-99006iVG40198210-198708

main90301-99054iVG40198708-198709

35111YRING, O (FOR AUTOMATIC TRANSMISSION CASE)

main90301-06196×2iVG40198210-198709

35128COVER, TRANSMISSION HOUSING UNDER (ATM)

main31128-40011iVG40198210-198709

35143COVER, TRANSMISSION CASE, REAR

main35143-22010iVG40198210-198709

35144GASKET, TRANSMISSION CASE REAR COVER

main35144-22010iVG40198210-198709

35154ADAPTER, TRANSMISSION CASE

main35154-40010iVG40198210-198709

35168GASKET, AUTOMATIC TRANSMISSION OIL PAN

main35168-22011iVG40198210-198709

35336RING, O (FOR TRANSMISSION OIL FILLER TUBE)

main90301-09173iVG40198210-198709

35394MAGNET, OIL CLEANER (FOR TRANSMISSION)

main35394-30011×2iVG40198210-198709

35395ASTRAINER, GOVERNOR OIL

main35395-40010iVG40198210-198709

4503POWER STEERING TUBE

→ Go to FIG 45-03

9010510062

main90105-10062

9011906117

main90119-06117

9011912036

main90119-12036

9111151032

main91111-51032

9161140610

main91611-40610

9322016012

main93220-16012

9454201000

main94542-01000

27 parts on this diagram · 1 diagram in section
