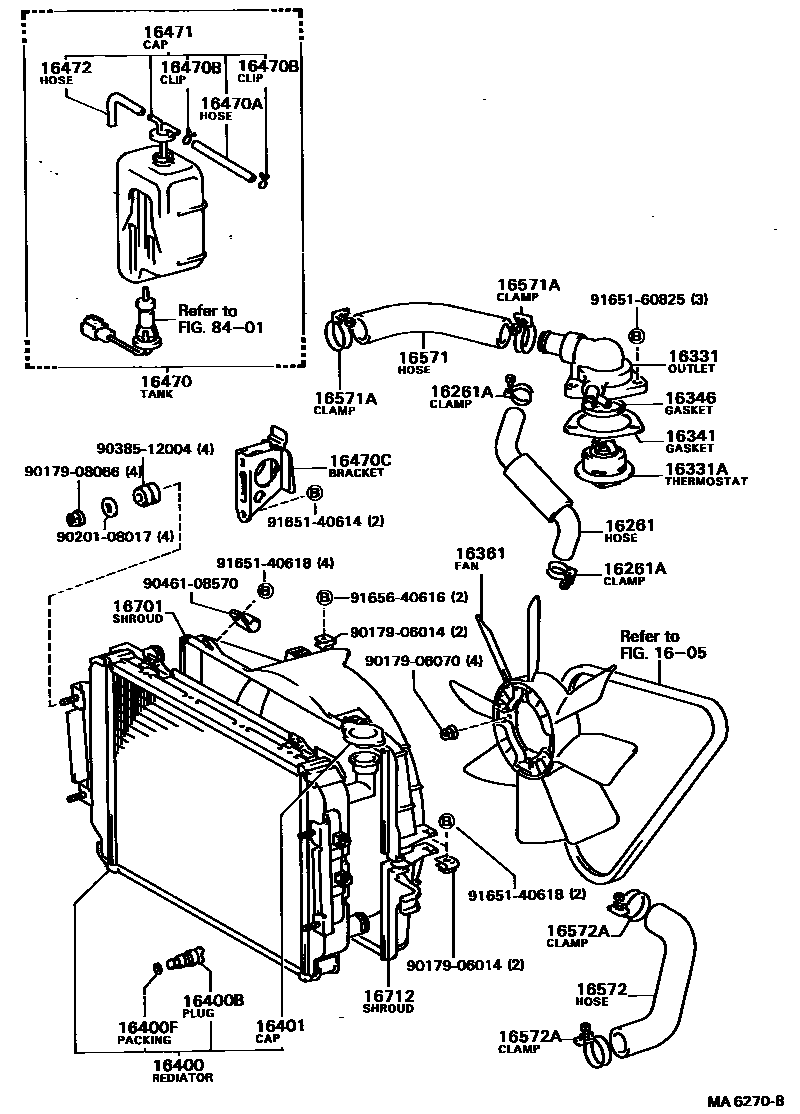

RADIATOR & WATER OUTLET
1605V-BELT
16261HOSE, WATER BY-PASS
16261ACLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE)
16331OUTLET, WATER
16331ATHERMOSTAT
16341GASKET, WATER OUTLET
16346GASKET, THERMOSTAT
16361FAN
8 BLADES
16400RADIATOR ASSY
16400BPLUG, RADIATOR DRAIN COCK
16400FPACKING(FOR RADIATOR DRAIN COCK)
16401CAP SUB-ASSY, RADIATOR
16470TANK ASSY, RADIATOR RESERVE
16470AHOSE OR PIPE(FOR RADIATOR RESERVE TANK)
16470BCLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE)
16470CBRACKET(FOR RADIATOR RESERVE TANK)
16471CAP SUB-ASSY, RESERVE TANK
16472HOSE, BREATHER
16571HOSE, RADIATOR, INLET
16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)
16572HOSE, RADIATOR, OUTLET
16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)
16701SHROUD SUB-ASSY, FAN
16712SHROUD, FAN, NO.2
8401SWITCH & RELAY & COMPUTER
9017906014
main90179-06014
9017906070
main90179-06070
9017908066
main90179-08066
9020108017
main90201-08017
9038512004
main90385-12004
9046108570
main90461-08570
9165140614
main91651-40614
9165140618
main91651-40618
9165160825
main91651-60825
9165640616
main91656-40616
35 parts on this diagram · 1 diagram in section
