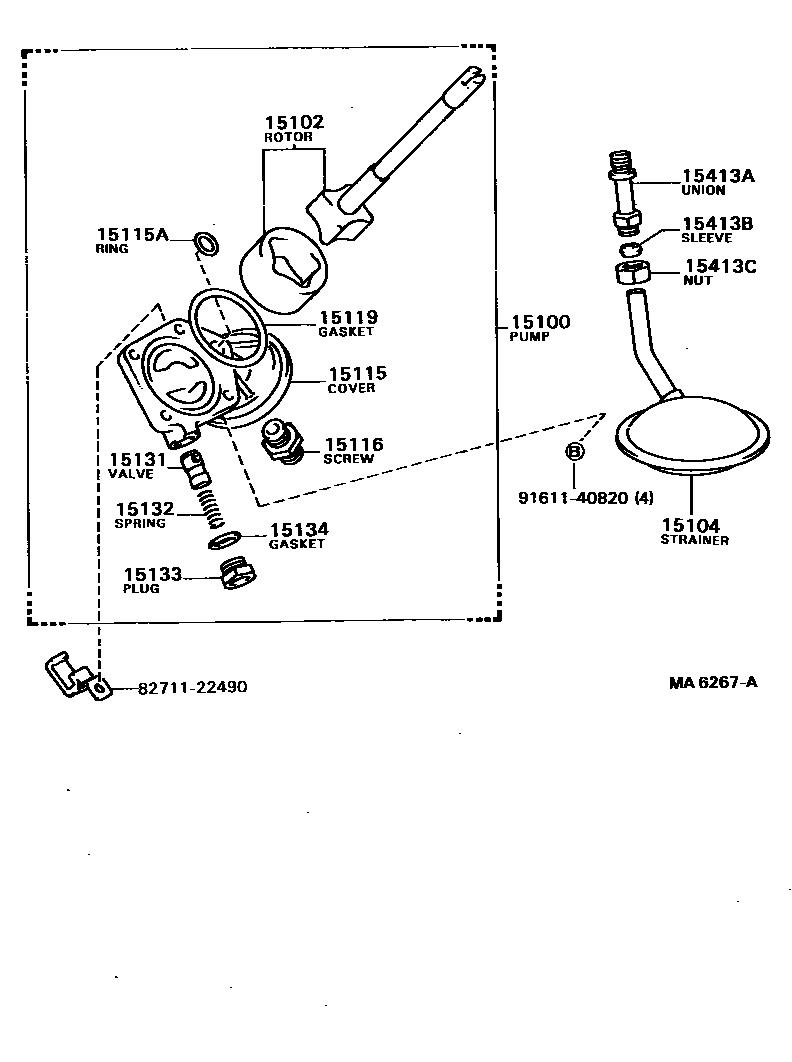

ENGINE OIL PUMP
15100PUMP ASSY, OIL
15102ROTOR SET, OIL PUMP
15104STRAINER SUB-ASSY, OIL
15115COVER, OIL PUMP
15115ARING, O(FOR OIL PUMP COVER)
15116SCREW, OIL CLEANER SET
15119GASKET, OIL PUMP COVER
15131VALVE, OIL PUMP RELIEF
15132SPRING, OIL PUMP RELIEF VALVE
15133PLUG, OIL PUMP RELIEF VALVE
15134GASKET, OIL PUMP RELIEF VALVE
15413AUNION(FOR OIL PUMP OUTLET PIPE)
15413BSLEEVE, BALL(FOR OIL PUMP OUTLET PIPE)
15413CNUT, UNION(FOR OIL PUMP OUTLET PIPE)
8271122490WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-22490
9161140820
main91611-40820
16 parts on this diagram · 1 diagram in section
