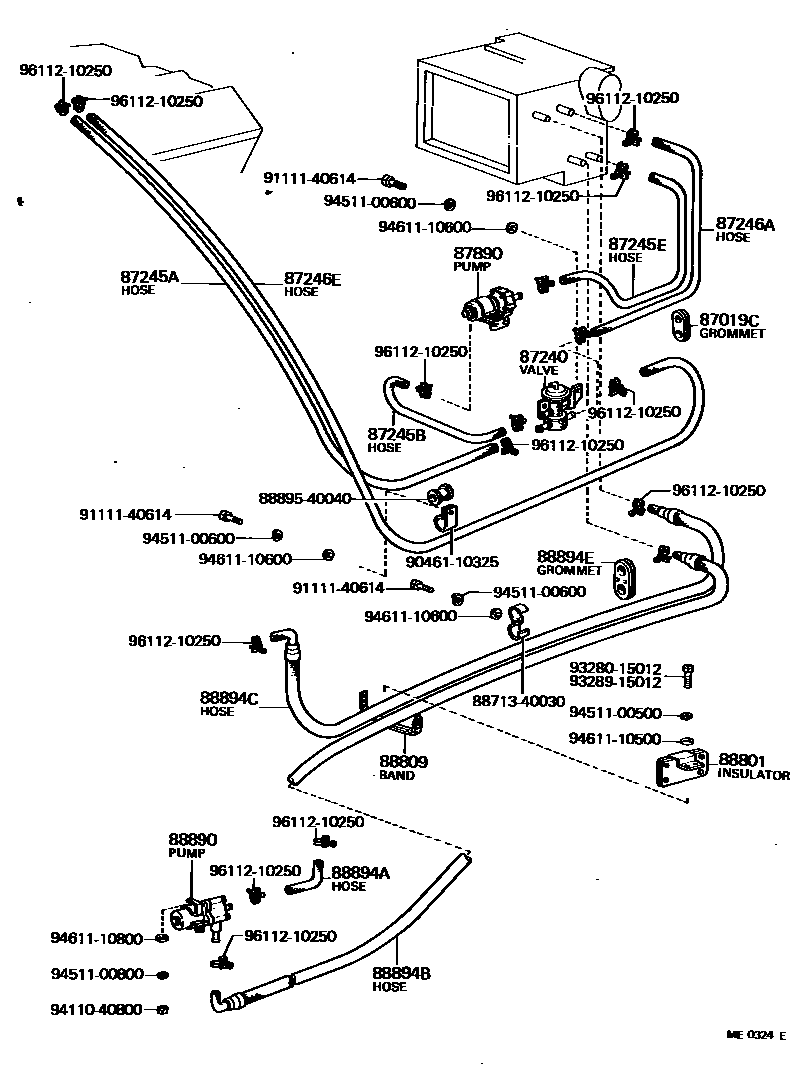

HEATING & AIR CONDITIONING - WATER PIPING
87019CGROMMET, HEATER HOSE
87240VALVE ASSY, HEATER WATER
87245AHOSE, HEATER WATER, INLET A
87245BHOSE, HEATER WATER, INLET B
87245EHOSE, HEATER WATER, INLET E
87246AHOSE, HEATER WATER, OUTLET A
L=900
L=880
L=840
L=880
87246EHOSE, HEATER WATER, OUTLET E
87890PUMP ASSY W/BRACKET, COOLER WATER
88801INSULATOR SUB-ASSY, BRINE HOSE
88809BAND SUB-ASSY, BRINE HOSE
88890PUMP ASSY, BRINE W/BRACKET
88894AHOSE, BRINE(FOR FROM COOLER CORE TO EVAPORATOR)
88894BHOSE, BRINE(FOR FROM EVAPORATOR TO PUMP BRINE)
88894CHOSE, BRINE(FOR FROM PUMP BRINE TO COOLER CORE)
88894EGROMMET, BRINE HOSE
8871340030HOSE, COOLER REFRIGERANT SUCTION, NO.2
main88713-40030
8889540040HOLDER, FUSE
main88895-40040
9046110325
main90461-10325
9111140614
main91111-40614
9328015012
main93280-15012
9328915012
main93289-15012
9411040800
main94110-40800
9451100500
main94511-00500
9451100600
main94511-00600
9451100800
main94511-00800
9461110500
main94611-10500
9461110600
main94611-10600
9461110800
main94611-10800
9611210250
main96112-10250
29 parts on this diagram · 2 diagrams in section
