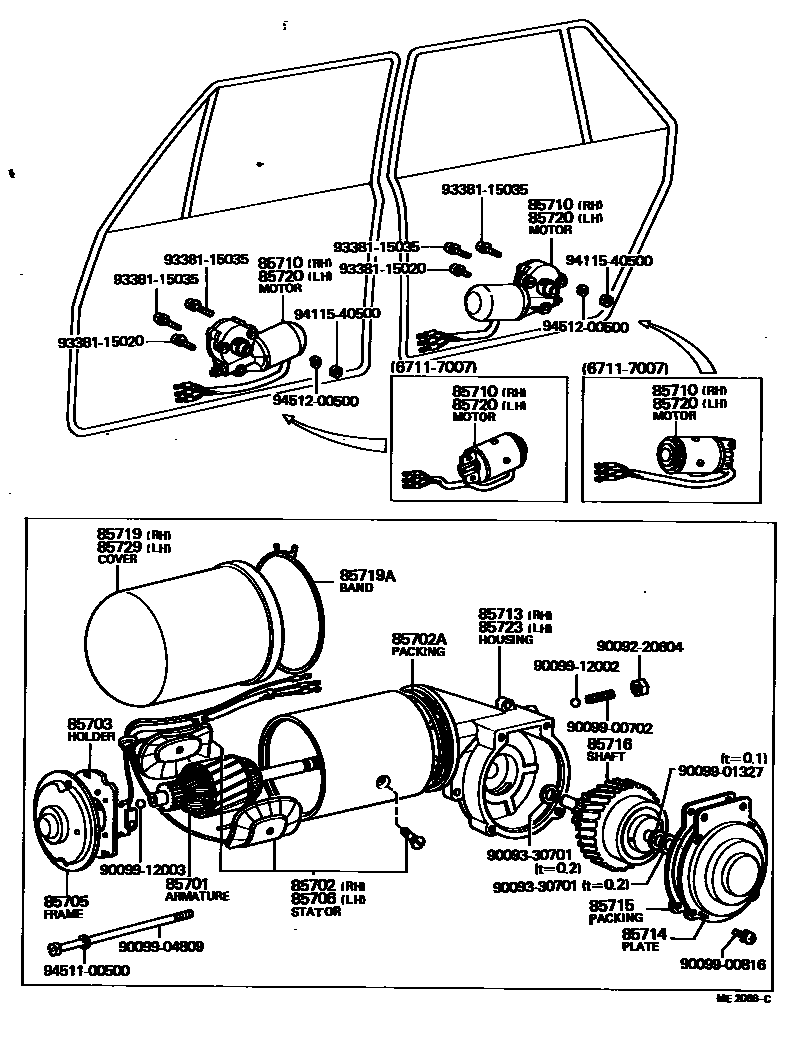

DOOR MOTOR & DOOR SOLENOID

0001 1 0002 1 0003 1 0004 1 0005 1

85701ARMATURE SUB-ASSY, POWER WINDOW REGULATOR MOTOR

main85601-30014×4iVG2#..A,C,D197007-197405

85702STATOR SUB-ASSY, POWER WINDOW REGULATOR MOTOR, RH

main85602-40024iVG21..D197405-197505

RR

main85606-40024iVG2#..A,C,D197007-197405

FR

85702APACKING, POWER WINDOW REGULATOR MOTOR STATOR

main90099-06028×4iVG2#..A,C,D197007-197405

85703HOLDER, POWER WINDOW MOTOR BRUSH

main85603-40011×4iVG21..D197405-197505

85705FRAME SUB-ASSY, POWER WINDOW REGULATOR MOTOR END

main85605-30010×4iVG21..D197405-197505

85706STATOR SUB-ASSY, POWER WINDOW REGULATOR MOTOR, LH

main85602-40024iVG21..D197405-197505

FR

main85606-40024iVG2#..A,C,D197007-197405

RR

85710MOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-30030iVG21..D197505-197510

RR

main85710-30031iVG21,3#..D197510-198209

RR

main85710-40011iVG20..A,C,D196711-197007

RR

main85710-40024iVG21..D197405-197505

RR

main85720-40011iVG20..A,C,D196711-197007

FR

main85720-40024iVG2#..A,C,D197007-197405

FR

main85720-40030iVG21..D197505-197510

FR

main85720-40031iVG21,3#..D197510-198209

FR

85713HOUSING, POWER WINDOW REGULATOR MOTOR GEAR, RH

main85607-30030iVG21..D197505-197510

RR

main85607-30031iVG21,3#..D197510-198209

RR

main85608-40030iVG21..D197505-197510

FR

main85608-40031iVG21,3#..D197510-198209

FR

main85713-30015iVG21..D197405-197505

RR

main85723-30015iVG21..D197405-197505

FR

85714PLATE, POWER WINDOW REGULATOR MOTOR COVER

main85714-30010×4iVG2#..A,C,D197007-197405

85715PACKING, POWER WINDOW REGULATOR MOTOR COVER

main85715-30010×4iVG20..A,C,D197007-197110

85716SHAFT, POWER WINDOW REGULATOR MOTOR DRIVE

main85609-30031×3iVG21..D197505-197510

main85609-30050iVG21..D197505-197510

FR,RH

main85716-30020×4iVG2#..A,C,D197007-197405

main85716-30031×3iVG21,3#..D197510-198209

main85716-30051iVG21,3#..D197510-198209

FR,RH

85719COVER, POWER WINDOW REGULATOR MOTOR, RH

main85719-40024iVG21..D197405-197505

RR

main85729-40024iVG2#..A,C,D197007-197405

FR

85719ABAND, POWER WINDOW REGULATOR MOTOR COVER

main85147-40020×4iVG2#..A,C,D197007-197405

85720MOTOR ASSY, POWER WINDOW REGULATOR, LH

main85710-30030iVG21..D197505-197510

FR

main85710-30031iVG21,3#..D197510-198209

FR

main85710-40011iVG20..A,C,D196711-197007

FR

main85710-40024iVG2#..A,C,D197007-197405

FR

main85720-30030iVG21..D197505-197510

RR

main85720-30031iVG21,3#..D197510-198209

RR

main85720-40011iVG20..A,C,D196711-197007

RR

main85720-40024iVG21..D197405-197505

RR

85723HOUSING, POWER WINDOW REGULATOR MOTOR GEAR, LH

main85607-30030iVG21..D197505-197510

FR

main85607-30031iVG21,3#..D197510-198209

FR

main85608-30030iVG21..D197505-197510

RR

main85608-30031iVG21,3#..D197510-198209

RR

main85713-30015iVG2#..A,C,D197007-197405

FR

main85723-30015iVG21..D197405-197505

RR

85729COVER, POWER WINDOW REGULATOR MOTOR, LH

main85719-40024iVG2#..A,C,D197007-197405

FR

main85729-40024iVG21..D197405-197505

RR

9009220604

main90092-20604

9009330701

main90093-30701

9009900702

main90099-00702

9009900816

main90099-00816

9009901327

main90099-01327

9009904809

main90099-04809

9009912002

main90099-12002

9009912003

main90099-12003

9338115020

main93381-15020

9338115035

main93381-15035

9411540500

main94115-40500

9451100500

main94511-00500

9451200500

main94512-00500

29 parts on this diagram · 5 diagrams in section
