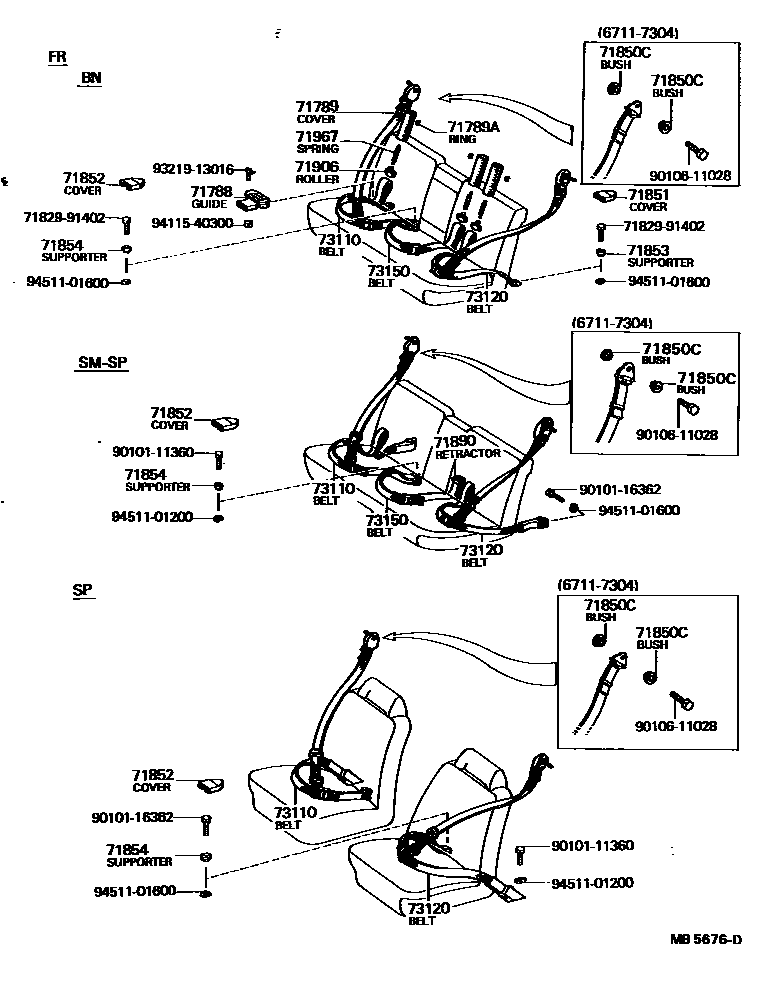

SEAT BELT & CHILD RESTRAINT SEAT

0001 1 0002 1 0003 1

71788GUIDE,SEAT BELT SLIDE

main71788-91401×6iVG20196711-197001

71789COVER, SEAT BELT

main71789-91401×6iVG20196811-197001

main71795-91401×6iVG20196711-196811

71789ARING(FOR SEAT BELT COVER)

main71812-30010×32iVG20196711-196811

main71812-30012×22iVG20196811-197001

71850CBUSH (FOR SEAT HARNESS)

main71955-91401×4iVG2#196711-197304

CTR PILLAR

71851COVER, SAFETY BAND ANCHOR, OUTER

main71951-91401-01×2iVG20..MTM196711-197001

BLACK,BLACK

main71951-91401-02×2iVG20..A,C,D196711-197001

RED,RED/MAROON

main71951-91401-03×2iVG20..ATM196711-197001

GRAY,GRAY

main71951-91401-04×2iVG20..ATM196711-197001

BLUE,BLUE

main71951-91401-06×2iVG20..ATM196711-197001

BROWN,BROWN

main71951-91401-07×2iVG20..ATM196711-197001

GREEN,GREEN

71852COVER, SAFETY BAND ANCHOR, INNER

main71953-91402-01×2iVG2#..MTM196811-197405

BLACK,BLACK,TRIM1#

main71953-91402-02×2iVG20..A,C,D196811-197302

RED,RED/MAROON

main71953-91402-03×2iVG2#..ATM196811-197405

GRAY,GRAY,TRIM4#

main71953-91402-04×2iVG2#..ATM196811-197405

BLUE,BLUE,TRIM8#

main71953-91402-06×2iVG2#..ATM196811-197405

BROWN,BROWN,TRIM5#

main71953-91402-07×2iVG2#..ATM196811-197405

GREEN,GREEN,TRIM6#

71853SUPPORTER, SAFETY BELT ANCHOR COVER, OUTER

main71952-91401×2iVG20196711-197001

71854SUPPORTER, SAFETY BELT ANCHOR COVER, INNER

main71954-91401×2iVG20196811-196902

main71954-91402×2iVG2#196902-197504

71890RETRACTOR ASSY, SEAT HARNESS NON-LOCKING

main71890-30010×4iVG2#197001-197511

71906ROLLER SUB-ASSY, SEAT BELT TENSION

main71906-91405×6iVG20196711-197001

71967SPRING, SEAT BELT TENSION

main71967-91401×6iVG20196711-196811

main71967-91402×6iVG20196811-197001

73110BELT ASSY, FRONT SEAT 3 POINT TYPE, RH

main71910-91409-03iVG20..B,C,D196711-196811

D-GRAY,GRAY

main71910-91409-04iVG20..A196711-196811

BLACK,BLUE

main71910-91409-05iVG20..A196711-196811

RED,BEIGE

main71910-91410-03iVG20..B,C,D196811-197001

D-GRAY,GRAY

main71910-91410-04iVG20..B,C,D196811-197001

BLACK,BLUE

main73110-91401-04iVG20..A196811-197001

BLACK,BLUE

main73110-91401-05iVG20..A196811-197107

RED,BEIGE

main73110-91404-03iVG21;VG20..ATM197107-197304

D-GRAY,GRAY,TRIM4#,5#

main73110-91404-04iVG20197107-197302

BLACK,BLUE

main73110-91404-05iVG20..A197107-197109

RED,BEIGE

main73110-91404-11iVG21197303-197304

BLACK,BLACK,TRIM1#,6#,8#

main73110-91405-03iVG21..ATM197304-197405

D-GRAY,GRAY,TRIM4#,5#

main73110-91405-05iVG21197405-197511

BEIGE,BEIGE,TRIM4#,5#

main73110-91405-11iVG21197304-197405

BLACK,BLACK,TRIM1#,6#,8#

main73110-91405-21iVG21197405-197511

BLACK,BLACK,TRIM8#

73120BELT ASSY, FRONT SEAT 3 POINT TYPE, LH

main71910-91409-03iVG20..B,C,D196711-196811

D-GRAY,GRAY

main71910-91409-04iVG20..A196711-196811

BLACK,BLUE

main71910-91409-05iVG20..A196711-196811

RED,BEIGE

main71910-91410-03iVG20..B,C,D196811-197001

D-GRAY,GRAY

main71910-91410-04iVG20..B,C,D196811-197001

BLACK,BLUE

main73120-91401-04iVG20197001-197107

BLACK,BLUE

main73120-91401-05iVG20..A196811-197107

RED,BEIGE

main73120-91404-03iVG21;VG20..ATM197107-197304

D-GRAY,GRAY,TRIM4#,5#

main73120-91404-04iVG20197107-197302

BLACK,BLUE

main73120-91404-05iVG20..A197107-197109

RED,BEIGE

main73120-91404-11iVG21197303-197304

BLACK,BLACK,TRIM1#,6#,8#

main73120-91405-03iVG21..ATM197304-197405

D-GRAY,GRAY,TRIM4#,5#

main73120-91405-05iVG21197405-197511

BEIGE,BEIGE,TRIM4#,5#

main73120-91405-11iVG21197304-197405

BLACK,BLACK,TRIM1#,6#,8#

main73120-91405-21iVG21197405-197511

BLACK,BLACK,TRIM8#

73150BELT ASSY, FRONT SEAT LAP TYPE, CENTER

main71830-91401-03iVG20..B,C,D196711-196811

D-GRAY,GRAY

main71830-91401-04iVG20..B,C,D196711-196811

BLACK,BLUE

main71830-91402-03iVG20..B,C,D196811-197107

D-GRAY,GRAY

main71830-91402-04iVG20..B,C,D196811-197107

BLACK,BLUE

main71830-91404-03iVG2#..ATM197107-197405

D-GRAY,GRAY,TRIM4#,5#

main71830-91404-04iVG20197107-197302

BLACK,BLUE

main71830-91404-05iVG20..A197107-197109

RED,BEIGE

main71830-91404-11iVG21197303-197405

BLACK,BLACK,TRIM1#,6#,8#

main71830-91404-15iVG21197405-197511

BEIGE,BEIGE,TRIM4#,5#

main71830-91404-21iVG21197405-197511

BLACK,BLACK,TRIM8#

main73150-40010-01iVG21197511-197701

BLACK,BLACK,TRIM8#

main73150-40010-05iVG21197511-197701

BEIGE,BEIGE,TRIM4#,5#

main73150-40011-01iVG30197701-197811

BLACK,BLACK,TRIM8#

main73150-40011-03iVG30197701-197811

GRAY,GRAY

main73150-40011-05iVG30197701-197811

BEIGE,BEIGE,TRIM4#,5#

main73150-40012-03iVG35197811-198004

GRAY,GRAY,TRIM1#

main73150-40012-04iVG35..D197811-198004

BLUE,BLUE,TRIM8#

main73150-40012-05iVG35..D197811-198004

BEIGE,BEIGE,TRIM4#

main73150-40013-03iVG35198004-198209

GRAY,GRAY,TRIM1#

main73150-40013-04iVG35..D198004-198209

BLUE,BLUE,TRIM8#

main73150-40013-05iVG35..D198004-198209

BEIGE,BEIGE,TRIM4#

7182991402BAND, REAR SEAT CUSHION

main71829-91402

9010111360

main90101-11360

9010116362

main90101-16362

9010611028

main90106-11028

9321913016

main93219-13016

9411540300

main94115-40300

9451101200

main94511-01200

9451101600

main94511-01600

22 parts on this diagram · 3 diagrams in section
