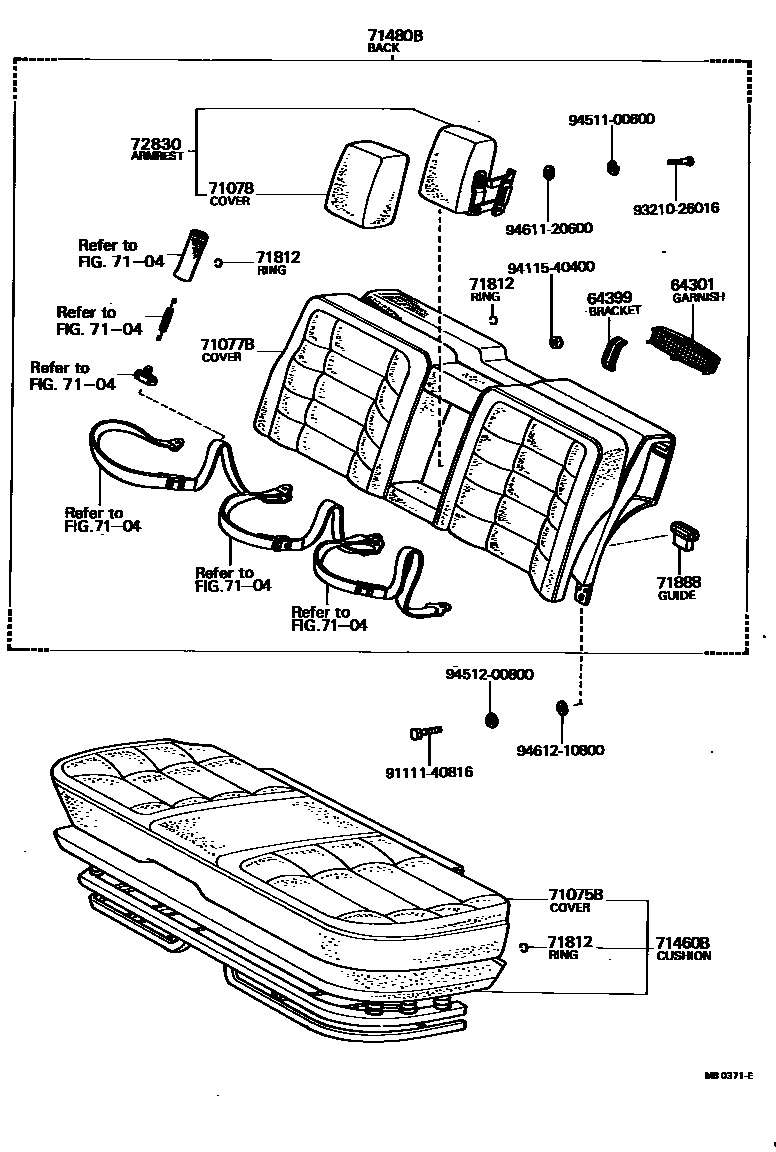

REAR SEAT & SEAT TRACK

0001 1 0002 1 0003 1

64301GARNISH SUB-ASSY, AIR PURIFIER SUCTION

main64301-91402×2iVG20..ATM196711-196808

main64301-91403×2iVG2#196808-197701

main64301-91404×2iVG3#197701-198209

64399BRACKET, AIR PURIFIER SUCTION GARNISH

main64399-91401×6iVG2#196906-197701

main64399-91402×6iVG20..ATM196711-196906

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

71075BCOVER, REAR SEAT CUSHION (FOR BENCH TYPE)

main71075-91411-01iVG2#..ATM196711-197405

D-BLUE,BLACK,TRIM8#

main71075-91411-02iVG2#..ATM196711-197405

G-GRAY,RED/MAROON,TRIM6#

main71075-91411-03iVG2#..ATM196711-197405

CREAM,GRAY,TRIM5#

main71075-91411-04iVG2#..ATM196711-197405

B-GRAY,BLUE,TRIM4#

main71075-91412-01iVG20..A196711-197109

BLACK,BLACK

main71075-91412-02iVG20..A196711-197109

RED,RED/MAROON

main71075-91413-01iVG20..B196711-197108

GRAY,BLACK

main71075-91413-11iVG20..B196711-197108

BEIGE

main71075-91419-11iVG2#..B197108-197405

GRAY,BLACK,TRIM1#

main71075-91420-03iVG21197405-197511

B-GRAY,GRAY,TRIM4#

main71075-91420-04iVG21197405-197511

D-BLUE,BLUE,TRIM8#

main71075-91420-08iVG21197405-197511

CREAM,IVORY,TRIM5#

main71075-91423-03iVG21197511-197701

B-GRAY,GRAY,TRIM4#

main71075-91423-04iVG21197511-197701

D-BLUE,BLUE,TRIM8#

main71075-91423-08iVG21197511-197701

CREAM,IVORY,TRIM5#

main71075-91424-03iVG30197701-197811

B-GRAY,GRAY,TRIM4#

main71075-91424-04iVG30197701-197811

D-BLUE,BLUE,TRIM8#

main71075-91424-08iVG30197701-197811

CREAM,IVORY,TRIM5#

main71075-91429-03iVG35..C197811-197904

FB,GRAY,GRAY,TRIM1#

main71075-91430-03iVG35..D197811-197904

FB,GRAY,GRAY,TRIM1#

main71075-91430-04iVG35..D197811-197904

FB,BLUE,BLUE,TRIM8#

main71075-91430-05iVG35..D197811-197904

FB,BEIGE,BEIGE,TRIM4#

main71075-91431-05iVG35..D197811-198209

LEATHER,BEIGE,BEIGE,TRIM4#

main71075-91431-06iVG35..D197811-198209

LEATHER,BROWN,BROWN,TRIM4#

main71075-91433-03iVG35..C197904-198102

FB,GRAY,GRAY,TRIM1#

main71075-91434-03iVG35..D197904-198102

FB,GRAY,GRAY,TRIM1#

main71075-91434-04iVG35..D197904-198102

FB,BLUE,BLUE,TRIM8#

main71075-91434-05iVG35..D197904-198102

FB,BEIGE,BEIGE,TRIM4#

main71075-91435-03iVG35..C198102-198209

FB,GRAY,GRAY,TRIM1#

main71075-91436-03iVG35..D198102-198209

FB,GRAY,GRAY,TRIM1#

main71075-91436-04iVG35..D198102-198209

FB,BLUE,BLUE,TRIM8#

main71075-91436-05iVG35..D198102-198209

FB,BEIGE,BEIGE,TRIM4#

71077BCOVER, REAR SEATBACK (FOR BENCH TYPE)

main71077-91409-01iVG20..A196711-196906

BLACK,BLACK

main71077-91409-02iVG20..A196711-196906

RED,RED/MAROON

main71077-91410-01iVG20..B196711-196906

GRAY,BLACK

main71077-91410-02iVG20..B196711-196906

BEIGE,RED/MAROON

main71077-91411-01iVG20..ATM196711-196906

D-BLUE,BLACK

main71077-91411-02iVG20..ATM196711-196906

G-GRAY,RED/MAROON

main71077-91411-03iVG20..ATM196711-196906

CREAM,GRAY

main71077-91411-04iVG20..ATM196711-196906

B-GRAY,BLUE

main71077-91412-01iVG20..A196906-197109

BLACK,BLACK

main71077-91412-02iVG20..A196906-197109

RED,RED/MAROON

main71077-91413-01iVG20..B196906-197108

GRAY,BLACK

main71077-91413-02iVG20..B196906-197108

BEIGE,RED/MAROON

main71077-91414-01iVG2#..ATM196906-197405

D-BLUE,BLACK,TRIM8#

main71077-91414-02iVG2#..ATM196906-197405

G-GRAY,RED/MAROON,TRIM6#

main71077-91414-03iVG2#..ATM196906-197405

B-BLUE,GRAY,TRIM8#

main71077-91414-04iVG2#..ATM196906-197405

B-GRAY,BLUE,TRIM4#

main71077-91419-11iVG2#..B197108-197405

GRAY,BLACK,TRIM1#

main71077-91420-03iVG21197405-197701

G-GRAY,GRAY,TRIM6#

main71077-91420-04iVG21197405-197701

D-BLUE,BLUE,TRIM8#

main71077-91420-08iVG21197405-197701

CREAM,IVORY,TRIM5#

main71077-91423-03iVG30197701-197811

G-GRAY,GRAY,TRIM6#

main71077-91423-04iVG30197701-197811

D-BLUE,BLUE,TRIM8#

main71077-91423-08iVG30197701-197811

CREAM,IVORY,TRIM5#

main71077-91424-03iVG35..C197811-198102

FB,GRAY,GRAY,TRIM1#

main71077-91425-03iVG35..D197811-198102

FB,GRAY,GRAY,TRIM1#

main71077-91425-04iVG35..D197811-198102

FB,BLUE,BLUE,TRIM8#

main71077-91425-05iVG35..D197811-198102

FB,BEIGE,BEIGE,TRIM4#

main71077-91426-05iVG35..D197811-198209

LEATHER,BEIGE,BEIGE,TRIM4#

main71077-91426-06iVG35..D197811-198209

LEATHER,BROWN,BROWN,TRIM4#

main71077-91428-03iVG35..C198102-198209

FB,GRAY,GRAY,TRIM1#

main71077-91429-03iVG35..D198102-198209

FB,GRAY,GRAY,TRIM1#

main71077-91429-04iVG35..D198102-198209

FB,BLUE,BLUE,TRIM8#

main71077-91429-05iVG35..D198102-198209

FB,BEIGE,BEIGE,TRIM4#

71078COVER SUB-ASSY, REAR SEAT CENTER ARMREST

main71704-91401-01iVG2#..ATM196711-197309

D-BLUE,BLACK,TRIM8#

main71704-91401-02iVG2#..ATM196711-197309

G-GRAY,RED/MAROON,TRIM6#

main71704-91401-03iVG2#..ATM196711-197309

CREAM,GRAY,TRIM5#

main71704-91401-04iVG2#..ATM196711-197309

B-GRAY,BLUE,TRIM4#

main71704-91402-01iVG20..A196711-197109

BLACK,BLACK

main71704-91402-02iVG20..A196711-197109

RED,RED/MAROON

main71704-91403-01iVG20..B196711-197108

GRAY,BLACK

main71704-91403-02iVG20..B196711-197108

BEIGE,RED/MAROON

main71704-91404-11iVG2#..B197108-197405

GRAY,BLACK,TRIM1#

71460BCUSHION ASSY, REAR SEAT (FOR BENCH TYPE)

main71460-91409-01iVG2#..ATM196711-197405

D-BLUE,BLACK,TRIM8#

main71460-91409-02iVG2#..ATM196711-197405

G-GRAY,RED/MAROON,TRIM6#

main71460-91409-03iVG2#..ATM196711-197405

CREAM,GRAY,TRIM5#

main71460-91409-04iVG2#..ATM196711-197405

B-GRAY,BLUE,TRIM4#

main71460-91410-01iVG20..A196711-197109

BLACK,BLACK

main71460-91410-02iVG20..A196711-197109

RED,RED/MAROON

main71460-91411-01iVG20..B196711-197108

GRAY,BLACK

main71460-91411-02iVG20..B196711-197108

BEIGE,RED/MAROON

main71460-91419-11iVG2#..B197108-197405

GRAY,BLACK,TRIM1#

main71460-91420-03iVG21197405-197511

B-GRAY,GRAY,TRIM4#

main71460-91420-04iVG21197405-197511

D-BLUE,BLUE,TRIM8#

main71460-91420-08iVG21197405-197511

CREAM,IVORY,TRIM5#

main71460-91423-03iVG21197511-197701

B-GRAY,GRAY,TRIM4#

main71460-91423-04iVG21197511-197701

D-BLUE,BLUE,TRIM8#

main71460-91423-08iVG21197511-197701

CREAM,IVORY,TRIM5#

main71460-91424-03iVG30..D197701-197811

B-GRAY,GRAY,TRIM4#

main71460-91424-04iVG30..D197701-197811

D-BLUE,BLUE,TRIM8#

main71460-91424-08iVG30..D197701-197811

CREAM,IVORY,TRIM5#

main71460-91425-03iVG30..C197701-197811

B-GRAY,GRAY,TRIM4#

main71460-91425-04iVG30..C197701-197811

D-BLUE,BLUE,TRIM8#

main71460-91425-08iVG30..C197701-197811

CREAM,IVORY,TRIM5#

main71460-91426-03iVG35..C197811-198102

FB,GRAY,GRAY,TRIM1#

main71460-91427-03iVG35..D197811-198102

FB,POWER SEAT,GRAY,GRAY,TRIM1#

main71460-91427-04iVG35..D197811-198102

FB,POWER SEAT,BLUE,BLUE,TRIM8#

main71460-91427-05iVG35..D197811-198102

FB,POWER SEAT,BEIGE,BEIGE,TRIM4#

main71460-91428-05iVG35..D197811-198209

LEATHER,BEIGE,BEIGE,TRIM4#

main71460-91428-06iVG35..D197811-198209

LEATHER,BROWN,BROWN,TRIM4#

main71460-91429-03iVG35..D197811-198102

FB,GRAY,GRAY,TRIM1#

main71460-91429-04iVG35..D197811-198102

FB,BLUE,BLUE,TRIM8#

main71460-91429-05iVG35..D197811-198102

FB,BEIGE,BEIGE,TRIM4#

main71460-91431-03iVG35..C198102-198209

FB,GRAY,GRAY,TRIM1#

main71460-91432-03iVG35..D198102-198209

FB,POWER SEAT,GRAY,GRAY,TRIM1#

main71460-91432-04iVG35..D198102-198209

FB,POWER SEAT,BLUE,BLUE,TRIM8#

main71460-91432-05iVG35..D198102-198209

FB,POWER SEAT,BEIGE,BEIGE,TRIM4#

main71460-91433-03iVG35..D198102-198209

FB,GRAY,GRAY,TRIM1#

main71460-91433-04iVG35..D198102-198209

FB,BLUE,BLUE,TRIM8#

main71460-91433-05iVG35..D198102-198209

FB,BEIGE,BEIGE,TRIM4#

71480BBACK ASSY, REAR SEAT (FOR BENCH TYPE)

main71480-91409-01iVG20..D196711-196902

D-BLUE,BLACK

main71480-91409-02iVG20..D196711-196902

G-GRAY,RED/MAROON

main71480-91409-03iVG20..D196711-196902

CREAM,GRAY

main71480-91409-04iVG20..D196711-196902

B-GRAY,BLUE

main71480-91410-01iVG20..A196711-196904

BLACK,BLACK

main71480-91410-02iVG20..A196711-196904

RED,RED/MAROON

main71480-91411-01iVG20..B196711-196902

GRAY,BLACK

main71480-91411-02iVG20..B196711-196902

BEIGE,RED/MAROON

main71480-91413-01iVG20..C196711-196902

D-BLUE,BLACK

main71480-91413-02iVG20..C196711-196902

G-GRAY,RED/MAROON

main71480-91413-03iVG20..C196711-196902

CREAM,GRAY

main71480-91413-04iVG20..C196711-196902

B-GRAY,BLUE

main71480-91414-01iVG2#..D196902-197405

D-BLUE,BLACK,TRIM8#

main71480-91414-02iVG2#..D196902-197405

G-GRAY,RED/MAROON,TRIM6#

main71480-91414-03iVG2#..D196902-197405

CREAM,GRAY,TRIM5#

main71480-91414-04iVG2#..D196902-197405

B-GRAY,BLUE,TRIM4#

main71480-91415-01iVG20..B196902-197108

GRAY,BLACK

main71480-91415-02iVG20..B196902-197108

BEIGE,RED/MAROON

main71480-91416-01iVG2#..C196902-197405

D-BLUE,BLACK,TRIM6#

main71480-91416-02iVG2#..C196902-197405

G-GRAY,RED/MAROON,TRIM4#

main71480-91416-03iVG2#..C196902-197405

CREAM,GRAY,TRIM5#

main71480-91416-04iVG2#..C196902-197405

B-GRAY,BLUE,TRIM4#

main71480-91417-01iVG20..A196904-197109

BLACK,BLACK

main71480-91417-02iVG20..A196904-197109

RED,RED/MAROON

main71480-91420-11iVG2#..B197108-197405

GRAY,BLACK,TRIM1#

main71480-91421-03iVG21197405-197511

B-GRAY,GRAY,TRIM4#

main71480-91421-04iVG21197405-197511

D-BLUE,BLUE,TRIM8#

main71480-91421-08iVG21197405-197511

CREAM,IVORY,TRIM5#

main71480-91424-03iVG21197511-197701

B-GRAY,GRAY,TRIM4#

main71480-91424-04iVG21197511-197701

D-BLUE,BLUE,TRIM8#

main71480-91424-08iVG21197511-197701

CREAM,IVORY,TRIM5#

main71480-91425-03iVG30197701-197811

B-GRAY,GRAY,TRIM4#

main71480-91425-04iVG30197701-197811

D-BLUE,BLUE,TRIM8#

main71480-91425-08iVG30197701-197811

CREAM,IVORY,TRIM5#

main71480-91426-03iVG35..C197811-198209

FB,GRAY,GRAY,TRIM1#

main71480-91427-03iVG35..D197811-198209

FB,GRAY,GRAY,TRIM1#

main71480-91427-04iVG35..D197811-198209

FB,BLUE,BLUE,TRIM8#

main71480-91427-05iVG35..D197811-198209

FB,BEIGE,BEIGE,TRIM4#

main71480-91428-05iVG35..D197811-198209

LEATHER,BEIGE,BEIGE,TRIM4#

main71480-91428-06iVG35..D197811-198209

LEATHER,BROWN,BROWN,TRIM4#

71812CLIP (FOR FRONT SEAT CUSHION COVER)

main71812-30010iVG2#196711-197701

SMALL

main71812-30012iVG21197303-197701

LARGE

main90468-18071iVG3#197701-198209

71888GUIDE, SEAT BELT SLIDE

main71888-91401×3iVG20..A196711-197109

72830ARMREST ASSY, REAR SEAT, CENTER

main71820-91401-01iVG20..ATM196711-196811

D-BLUE,BLACK

main71820-91401-02iVG20..ATM196711-196811

G-GRAY,RED/MAROON

main71820-91401-03iVG20..ATM196711-196811

CREAM,GRAY

main71820-91401-04iVG20..ATM196711-196811

B-GRAY,BLUE

main71820-91402-01iVG20..A196711-197109

BLACK,BLACK

main71820-91402-02iVG20..A196711-197109

RED,RED/MAROON

main71820-91403-01iVG20..B196711-197108

GRAY,BLACK

main71820-91403-02iVG20..B196711-197108

BEIGE,RED/MAROON

main71820-91405-01iVG2#..ATM196811-197405

D-BLUE,BLACK,TRIM8#

main71820-91405-02iVG2#..ATM196811-197405

G-GRAY,RED/MAROON,TRIM6#

main71820-91405-03iVG2#..ATM196811-197405

CREAM,GRAY,TRIM5#

main71820-91405-04iVG2#..ATM196811-197405

B-GRAY,BLUE,TRIM4#

main71820-91406-11iVG2#..B197108-197405

GRAY,BLACK,TRIM1#

main71820-91407-03iVG21197405-197701

B-GRAY,GRAY,TRIM4#

main71820-91407-04iVG21197405-197701

BLACK & D-BLUE,BLUE

main71820-91407-08iVG21197405-197701

CREAM,IVORY,TRIM5#

main71820-91408-03iVG35..C197811-198209

GRAY,GRAY,TRIM1#

main71820-91408-04iVG30197701-197811

BLACK & D-BLUE,BLUE

main71820-91408-08iVG30197701-197811

CREAM,IVORY,TRIM5#

main71820-91409-03iVG35..D197811-198209

FB,GRAY,GRAY,TRIM1#

main71820-91409-04iVG35..D197811-198209

FB,BLUE,BLUE,TRIM8#

main71820-91409-05iVG35..D197811-198209

FB,BEIGE,BEIGE,TRIM4#

main71820-91410-05iVG35..D197811-198209

LEATHER,BEIGE,BEIGE,TRIM4#

main71820-91410-06iVG35..D197811-198209

LEATHER,BROWN,BROWN,TRIM4#

9111140816

main91111-40816

9321026016

main93210-26016

9411540400

main94115-40400

9451100600

main94511-00600

9451200800

main94512-00800

9461120600

main94611-20600

9461210800

main94612-10800

18 parts on this diagram · 3 diagrams in section
