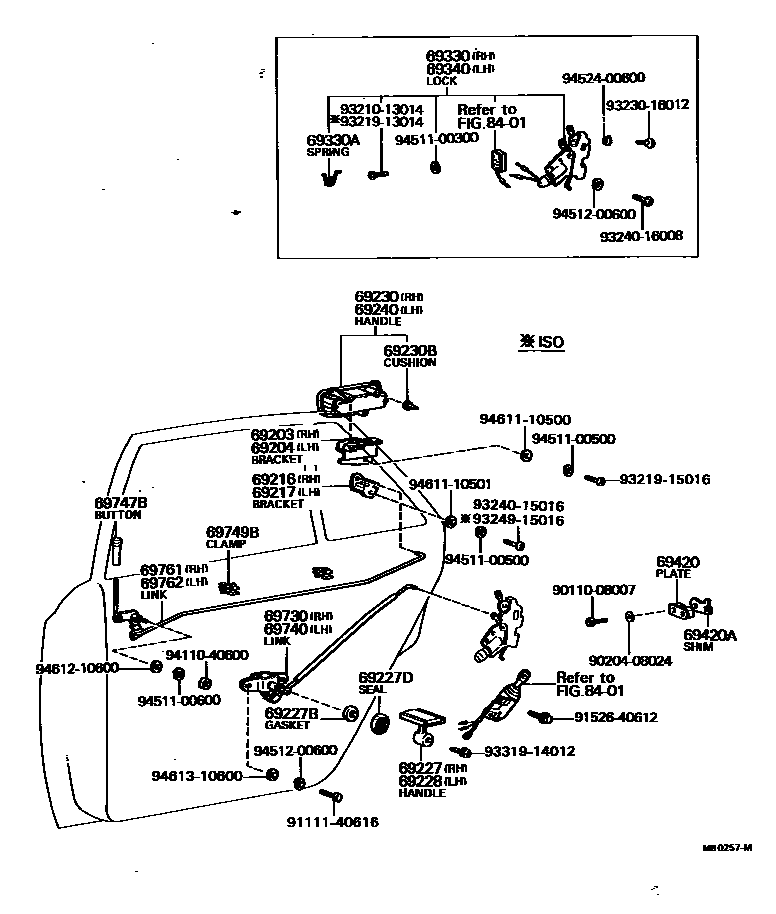

REAR DOOR LOCK & HANDLE

69203BRACKET SUB-ASSY, SWITCH W/LEVER, RH

main69205-40010iVG2#,3#196711-198209

69204BRACKET SUB-ASSY, SWITCH W/LEVER, LH

main69206-40010iVG2#,3#196711-198209

69216BRACKET, REAR DOOR LOCK, RH

main67216-91402iVG20196711-196808

main67216-91404iVG2#,3#196808-198209

69217BRACKET, REAR DOOR LOCK, LH

main67217-91402iVG20196711-196808

main67217-91404iVG2#,3#196808-198209

69227HANDLE, REAR DOOR INSIDE, RH

main69206-91401iVG2#,3#196711-198209

69227BGASKET(FOR REAR DOOR INSIDE HANDLE)

main90430-11136×2iVG2#,3#196711-198209

69227DSEAL(FOR REAR DOOR INSIDE HANDLE)

main69265-91401×2iVG2#,3#196711-198209

69228HANDLE, REAR DOOR INSIDE, LH

main69207-91402iVG2#,3#196711-198209

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69210-40020iVG20196711-196808

main69210-40021iVG2#,3#196808-198209

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-03005×4iVG3#197809-198209

main90541-03021×4iVG2#,30196711-197809

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69220-40020iVG20196711-196808

main69220-40021iVG2#,3#196808-198209

69330LOCK ASSY, REAR DOOR, RH

main69330-40031iVG20196711-197302

main69330-40060iVG21,3#197303-198209

69330ASPRING(FOR REAR DOOR LOCK)

main90508-10230iVG2#,3#196711-198209

RH

main90508-10231iVG2#,3#196711-198209

LH

69340LOCK ASSY, REAR DOOR, LH

main69340-40031iVG20196711-197302

main69340-40060iVG21,3#197303-198209

69420PLATE ASSY, REAR DOOR LOCK STRIKER

main69410-40010iVG20196711-197302

RH

main69410-40030iVG21,3#197303-198209

RH

main69420-40010iVG20196711-197302

LH

main69420-40030iVG21,3#197303-198209

LH

69420ASHIM, REAR DOOR LOCK STRIKER PLATE

main69411-91401iVG21,3#197604-198209

69730LINK ASSY, REAR DOOR OPEN CONTROL, RH

main69730-40010iVG20196711-196808

main69730-40011iVG2#,3#196808-198209

69740LINK ASSY, REAR DOOR OPEN CONTROL, LH

main69740-40010iVG20196711-196808

main69740-40011iVG2#,3#196808-198209

69747BBUTTON, DOOR LOCKING(FOR REAR DOOR)

main69770-91401×2iVG2#,3#196711-198209

69749BCLAMP, REAR DOOR LOCK LINK

main69749-30010×4iVG20196711-197201

69761LINK, REAR DOOR LOCK CONTROL, NO.1 RH

main69703-40020iVG2#,3#196711-198209

69762LINK, REAR DOOR LOCK CONTROL, NO.1 LH

main69704-40010iVG2#,3#196711-198209

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011008007

main90110-08007

9020408024

main90204-08024

9111140616

main91111-40616

9152640612

main91526-40612

9321013014

main93210-13014

9321913014

main93219-13014

9321915016

main93219-15016

9323016012

main93230-16012

9324015016

main93240-15016

9324016008

main93240-16008

9324915016

main93249-15016

9331914012

main93319-14012

9411040600

main94110-40600

9451100300

main94511-00300

9451100500

main94511-00500

9451100600

main94511-00600

9451200600

main94512-00600

9452400600

main94524-00600

9461110500

main94611-10500

9461110501

main94611-10501

9461210600

main94612-10600

9461310600

main94613-10600

45 parts on this diagram · 1 diagram in section
