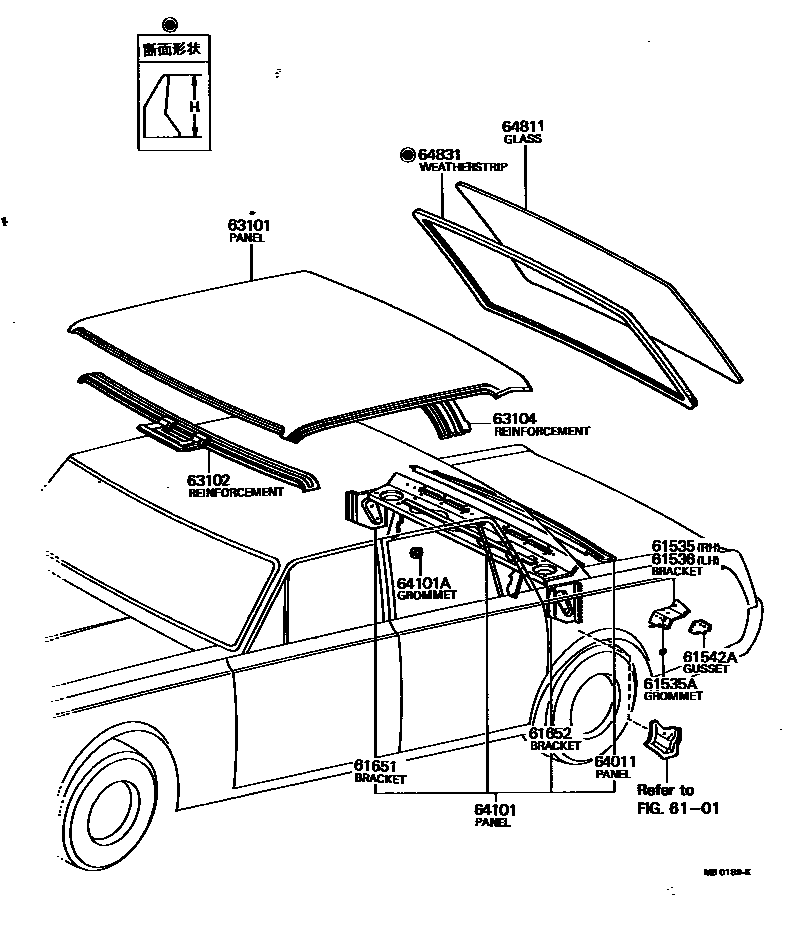

ROOF PANEL & BACK WINDOW GLASS

6101SIDE MEMBER

→ Go to FIG 61-01

61535BRACKET, PACKAGE TRAY MOUNT, RH

main61535-91401iVG2#,3#196711-198209

61535AGROMMET(FOR PACKAGE TRAY MOUNT BRACKET)

main90015-39002iVG20196811-197008

main90480-15007iVG20..A,C,D196711-196811

main90480-39284iVG2#197008-197405

main90480-39328iVG21,3#197405-198209

main90950-01025iVG20..B196711-196811

61536BRACKET, PACKAGE TRAY MOUNT, LH

main61536-91401iVG2#,3#196711-198209

61542AGUSSET, PACKAGE TRAY MOUNTING

main61542-91401iVG35197811-198209

61651BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64121-91402iVG2#,3#196711-198209

61652BRACKET, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64122-91402iVG2#,3#196711-198209

63101PANEL SUB-ASSY, ROOF

main63101-91402iVG2#196711-197511

main63101-91407iVG21,3#197511-198209

63102REINFORCEMENT SUB-ASSY, ROOF PANEL, FRONT

main63106-91401iVG2#,3#196711-198209

63104REINFORCEMENT SUB-ASSY, ROOF PANEL, CENTER

main63103-91403iVG2#,3#196711-198209

64011PANEL, UPPER BACK, OUTER

main64111-91402iVG2#,3#196711-198209

64101PANEL SUB-ASSY, UPPER BACK

main64110-91402iVG2#,30196711-197811

main64110-91406iVG35197811-198209

64101AGROMMET(FOR UPPER BACK PANEL)

main90950-01011iVG20196711-197302

main90950-01025iVG21,3#197303-198209

64811GLASS, BACK WINDOW

main64811-91403iVG20196711-197302

main64812-91403iVG21197303-197405

main64812-91404iVG21,30197405-197807

main64812-91407iVG3#197807-197911

BLUE SHADE

main64812-91408iVG35197911-198209

GREEN SHADE

64831WEATHERSTRIP, BACK WINDOW GLASS

main56102-91401iVG2#,3#196711-198209

H=7.0

main56102-91402iVG20196711-196811

H=5.0

15 parts on this diagram · 1 diagram in section
