SIDE MEMBER

58319BASE, LUGGAGE COMPARTMENT DOOR CLOSER

main58318-91405iVG2#,3#196903-198209

61011EXTENSION, PANEL QUARTER REAR, RH

main61615-91402iVG2#,3#196711-198209

61012EXTENSION, PANEL QUARTER, REAR LH

main61616-91402iVG2#,3#196711-198209

61015BASE, SPARE WHEEL CARRIER

main61638-91401iVG2#,3#196711-198209

6104ROOF PANEL & BACK WINDOW GLASS

→ Go to FIG 61-04

61103PILLAR SUB-ASSY, FRONT BODY, RH

main61103-91401iVG20196711-197302

main61103-91403iVG21,30197303-197811

main61103-91405iVG35197811-198209

61104PILLAR SUB-ASSY, FRONT BODY, LH

main61104-91401iVG20196711-197302

main61104-91404iVG21,30197303-197811

main61104-91406iVG35197811-198209

61123PANEL, COWL SIDE LOWER, RH

main61123-91401iVG20196711-197302

main61123-91402iVG21,3#197303-198209

61124PANEL, COWL SIDE LOWER, LH

main61124-91401iVG20196711-197302

main61124-91402iVG21,3#197303-198209

61125CHANNEL, ROOF DRIP, LOWER

main61265-91401×2iVG20196711-197302

main61265-91402×2iVG21,3#197303-198209

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61131-91401iVG2#,3#196711-198209

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61132-91401iVG2#,3#196711-198209

61163PILLAR, FRONT BODY, INNER RH

main61106-91401iVG2#,3#196711-198209

61164PILLAR, FRONT BODY, INNER LH

main61107-91401iVG2#,30196711-197811

main61107-91403iVG35197811-198209

61165PILLAR, FRONT BODY LOWER INNER, RH

main61163-91401iVG2#,3#196711-198209

61166PILLAR, FRONT BODY LOWER INNER, LH

main61164-91401iVG2#,3#196711-198209

61184PROTECTOR, COOLER THERMISTER HOSE

main61184-91401×2iVG21,3#197303-198209

61185PROTECTOR, WIRE HARNESS

main61185-91401×2iVG2#,3#196711-198209

61203RAIL SUB-ASSY, ROOF SIDE, INNER RH

main61203-91402iVG2#,3#196711-198209

61204RAIL SUB-ASSY, ROOF SIDE, INNER LH

main61204-91402iVG2#,3#196711-198209

61211RAIL, ROOF SIDE, OUTER RH

main61211-91402iVG20196711-197302

main61211-91405iVG21,3#197303-198209

61212RAIL, ROOF SIDE, OUTER LH

main61212-91402iVG20196711-197302

main61212-91405iVG21,3#197303-198209

61223CHANNEL, ROOF DRIP, FRONT RH

main61261-91402iVG2#,3#196711-198209

61224CHANNEL, ROOF DRIP, FRONT LH

main61262-91402iVG2#,3#196711-198209

61301PILLAR SUB-ASSY, CENTER BODY, RH

main61301-91401iVG2#,3#196711-198209

61302PILLAR SUB-ASSY, CENTER BODY, LH

main61302-91401iVG2#,3#196711-198209

61411PANEL, ROCKER, OUTER RH

main61401-91401iVG20196711-197302

main61401-91403iVG21,30197303-197706

main61401-91490iVG3#197706-198209

61412PANEL, ROCKER, OUTER LH

main61402-91401iVG20196711-197302

main61402-91403iVG21,30197303-197706

main61402-91490iVG3#197706-198209

61511PILLAR, QUARTER LOCK, RH

main61513-91401iVG2#,3#196711-197812

main61513-91490iVG35197812-198209

61512PILLAR, QUARTER LOCK, LH

main61514-91401iVG2#,3#196711-197812

main61514-91490iVG35197812-198209

61611PANEL, QUARTER, RH

main61611-91402iVG2#,3#196711-198209

61612PANEL, QUARTER, LH

main61612-91402iVG2#,3#196711-198209

61628SUPPORT, LUGGAGE COMPARTMENT SIDE TRIM UPPER, FRONT

main61626-91401iVG2#,3#196711-198209

RH

main61628-91401iVG20196711-197302

LH

61629SUPPORT, LUGGAGE COMPARTMENT SIDE TRIM UPPER, REAR

main61627-91401iVG2#,3#196711-198209

RH

main61629-91401iVG21,3#197405-198209

LH

61631PANEL, QUARTER WHEEL HOUSE, RH

main61603-91401iVG2#,3#196711-198209

61632PANEL, QUARTER WHEEL HOUSE, LH

main61604-91401iVG2#,3#196711-198209

61637BRACE, QUARTER WHEEL HOUSE, RH

main61635-91401iVG20196711-197302

main61635-91402iVG21,30197303-197811

main61635-91403iVG35198012-198209

main61705-91402iVG35197811-198012

61638BRACE, QUARTER WHEEL HOUSE, LH

main61607-91401iVG20197108-197302

main61607-91402iVG21,3#197303-198012

main61636-91401iVG20196711-197108

main61636-91402iVG35198012-198209

61639BRACKET, SPARE WHEEL CARRIER

main61639-91401iVG2#,3#196711-198209

61645STRAINER, QUARTER WHEEL HOUSE, RH

main61637-91401iVG20196711-197302

main61637-91402iVG21,3#197303-198209

61646STRAINER, QUARTER WHEEL HOUSE, LH

main61645-91401iVG20196903-197302

main61645-91402iVG21,3#197303-198209

61653BRACKET, LUGGAGE DOOR HINGE TO WHEEL HOUSE, RH

main61653-91402iVG35197811-198209

61654BRACKET, LUGGAGE DOOR HINGE TO WHEEL HOUSE, LH

main61654-91401iVG35197811-198209

61655BRACKET, LUGGAGE COMPARTMENT DOOR CLOSER WIRE, NO.2

main61655-91401iVG2#,3#196903-198209

61656COVER, LUGGAGE COMPARTMENT DOOR CLOSER

main61659-91401iVG2#..A,C,D196903-197405

61657BASE, LUGGAGE COMPARTMENT DOOR CLOSER UPPER

main61657-91401iVG2#,3#196903-198209

61658BRACKET, LUGGAGE COMPARTMENT DOOR CLOSER WIRE, NO.1

main61658-91401iVG2#,3#196903-198209

61705PANEL SUB-ASSY, ROOF SIDE, INNER RH

main61503-91401iVG20196711-197302

main61503-91403iVG21,3#197303-198209

61706PANEL SUB-ASSY, ROOF SIDE, INNER LH

main61504-91401iVG20196711-197302

main61504-91403iVG21,3#197303-198209

61711PANEL, ROOF SIDE, OUTER RH

main61511-91401iVG2#,3#196711-198101

main61711-91401iVG35198101-198209

61712PANEL, ROOF SIDE, OUTER LH

main61512-91401iVG2#,3#196711-198101

main61712-91401iVG35198101-198209

9048015007

main90480-15007

9048020030

main90480-20030

9048029282

main90480-29282

9048035279

main90480-35279

9048038250

main90480-38250

9048042001

main90480-42001

9095001006

main90950-01006

9095001016

main90950-01016

9095001017

main90950-01017

9095001027

main90950-01027

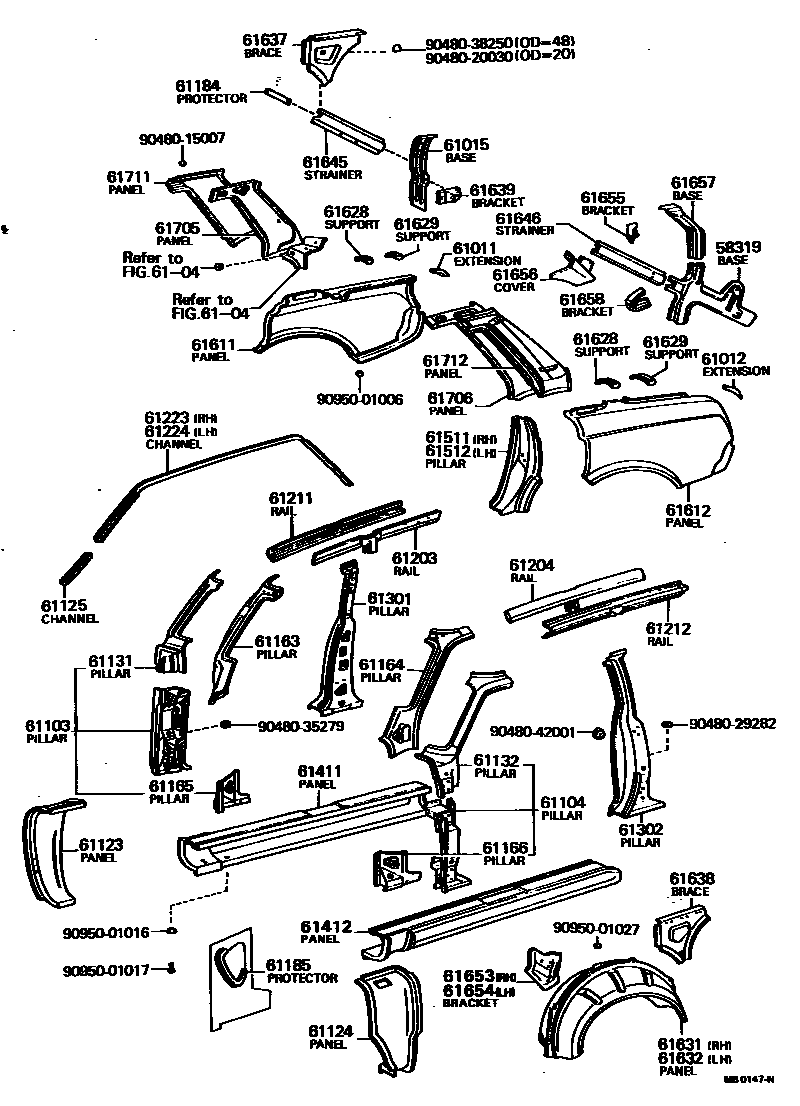

61 parts on this diagram · 1 diagram in section
