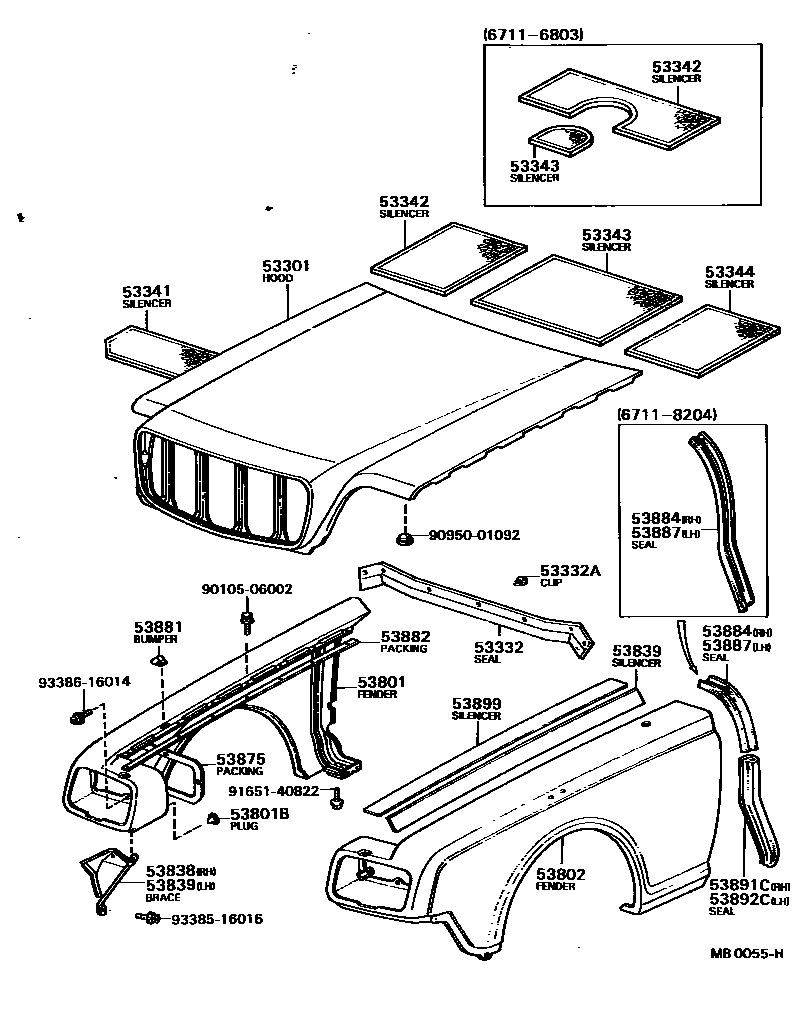

HOOD & FRONT FENDER

53301HOOD SUB-ASSY

main53301-91402iVG20196711-196907

main53301-91404iVG20196907-197302

main53301-91406iVG21,30197303-197811

main53301-91409iVG35197811-198209

53332SEAL, HOOD RADIATOR SUPPORT

main53332-91401iVG2#,30196901-197811

main53332-91402iVG35197811-198209

53332ACLIP(FOR HOOD RADIATOR SUPPORT SEAL SET)

main90467-07009×5iVG2#,30196901-197811

main90467-08008×7iVG35198012-198209

main90467-08011×7iVG35197811-198012

53341SILENCER, HOOD, NO.1

main53341-91402iVG20196711-197302

main53341-91403iVG21,3#197303-198209

53342SILENCER, HOOD, NO.2

main53342-91402iVG20196711-196803

main53342-91403iVG2#,3#196803-198209

53343SILENCER, HOOD, NO.3

main53343-91402iVG20196711-196803

main53343-91403iVG2#,3#196803-198209

53344SILENCER, HOOD, NO.4

main53345-91401iVG2#,3#196803-198209

53801FENDER SUB-ASSY, FRONT RH

main53801-91403iVG21,30197405-197706

main53801-91490iVG20196711-197302

main53801-91491iVG21197303-197405

main53801-91492iVG3#197706-198209

53801BPLUG, HOLE(FOR FRONT FENDER)

main90950-01006×2iVG2#,3#196711-198209

OD=9.5

53802FENDER SUB-ASSY, FRONT LH

main53802-91403iVG21,30197405-197706

main53802-91490iVG20196711-197302

main53802-91491iVG21197303-197405

main53802-91492iVG3#197706-198209

53838BRACE, FRONT FENDER, RH

main53807-91402iVG21,3#197303-198209

main53837-91401iVG20196711-197302

53839BRACE, FRONT FENDER, LH

main53808-91402iVG21,3#197303-198209

main53838-91401iVG20196711-197302

53875PACKING, HEADLAMP HOUSING TRIM

main53875-91401×2iVG2#,3#196711-198209

53881BUMPER, FENDER TO HOOD

main53382-91402×4iVG2#,3#196711-198209

53882PACKING, FRONT FENDER MAIN

main53872-91402×2iVG20196711-196912

main53872-91403×2iVG2#,3#196912-198209

53884SEAL, FRONT FENDER SPLASH SHIELD, RH

main53884-91401iVG2#,3#196711-198204

L=821

53887SEAL, FRONT FENDER SPLASH SHIELD, LH

main53884-91401iVG2#,3#196711-198204

L=821

53891CSEAL, FRONT FENDER SPLASH SHEILD, FRONT

main53891-91401iVG35198204-198209

53892CSEAL, FRONT FENDER SPLASH SHIELD, FRONT LH

main53891-91401iVG35198204-198209

53899SILENCER

main53892-91401×4iVG20196711-197111

1100X100

main53892-91402×4iVG2#197111-197405

1100X100

main53893-91401×2iVG2#197111-197405

600X40

main53894-91401×2iVG2#197111-197405

300X40

9010506002

main90105-06002

9095001092

main90950-01092

9165140822

main91651-40822

9338516016

main93385-16016

9338616014

main93386-16014

25 parts on this diagram · 1 diagram in section
