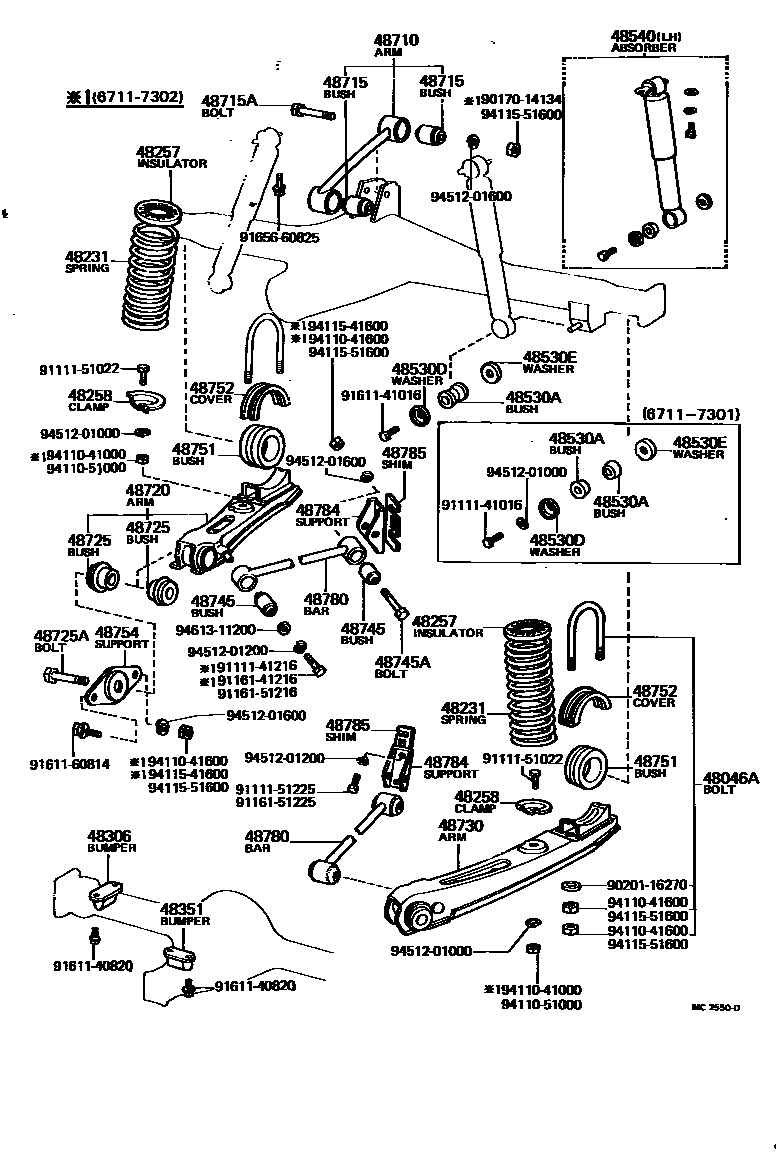

REAR SPRING & SHOCK ABSORBER
48046ABOLT, U(FOR REAR SPRING)
48231SPRING, COIL, REAR
48257INSULATOR, REAR COIL SPRING
48258CLAMP, REAR COIL SPRING
48306BUMPER SUB-ASSY, REAR SPRING
48351BUMPER, DIFFERENTIAL CARRIER
48530ABSORBER ASSY, SHOCK, REAR RH
48530ABUSH(FOR REAR SHOCK ABSORBER)
LWR
UPR
48530DWASHER, REAR SHOCK ABSORBER CUSHION, NO.3
48530EWASHER, REAR SHOCK ABSORBER CUSHION, NO.4
48540ABSORBER ASSY, SHOCK, REAR LH
48710ARM ASSY, UPPER CONTROL
48715BUSH, UPPER CONTROL ARM
48715ABOLT, HEXAGON(FOR UPPER CONTROL ARM)
48720ARM ASSY, LOWER CONTROL, RH
ISO
48725BUSH, LOWER CONTROL ARM
48725ABOLT(FOR LOWER CONTROL ARM)
48730ARM ASSY, LOWER CONTROL, LH
48745BUSH, LATERAL CONTROL ROD
48745ABOLT, HEXAGON(FOR LATERAL CONTROL ROD)
48751BUSH, REAR AXLE MOUNTING
48752COVER, REAR AXLE BUSH
48754SUPPORT, LOWER ARM PIN
48780BAR ASSY, STRUT
48784SUPPORT, STRUT BAR PIN
48785SHIM, STRUT BAR ADJUST
T=2.0
T=1.0
9017014134
main90170-14134
9020116270
main90201-16270
9111141016
main91111-41016
9111141216
main91111-41216
9111151022
main91111-51022
9111151225
main91111-51225
9116141216
main91161-41216
9116151216
main91161-51216
9116151225
main91161-51225
9161140820
main91611-40820
9161141016
main91611-41016
9161160814
main91611-60814
9165660825
main91656-60825
9411041000
main94110-41000
9411041600
main94110-41600
9411051000
main94110-51000
9411541600
main94115-41600
9411551600
main94115-51600
9451201000
main94512-01000
9451201200
main94512-01200
9451201600
main94512-01600
9461311200
main94613-11200
48 parts on this diagram · 2 diagrams in section
