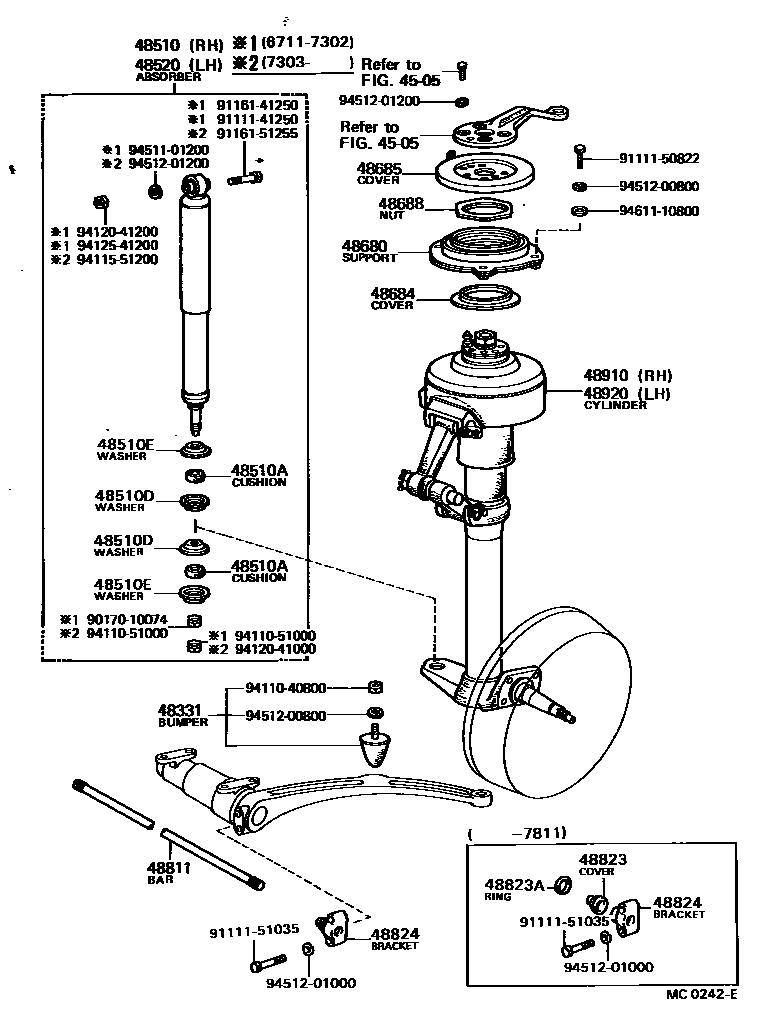

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1

4505FRONT STEERING GEAR & LINK

→ Go to FIG 45-05

48331BUMPER, FRONT SPRING, NO.1

main48331-49015×2iVG2#,3#196711-198209

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-49015iVG2#196711-197701

main48511-49025iVG3#197701-198209

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003×4iVG2#,3#196711-198209

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-02007×4iVG2#,3#196711-198209

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-02002×4iVG2#,3#196711-198209

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-49015iVG2#196711-197701

main48511-49025iVG3#197701-198209

48680SUPPORT ASSY, FRONT SUSPENSION

main48680-40011×2iVG20196711-197302

main48680-40020×2iVG21,3#197303-198209

48684COVER, BEARING DUST

main48684-40010×2iVG2#,3#196711-198209

48685COVER, FRONT SUSPENSION SUPPORT

main48685-40010iVG20196711-197302

RH

main48686-40010iVG20196711-197302

LH

48688NUT, BEARING RETAINING

main48688-40010×2iVG2#,3#196711-198209

48811BAR, STABILIZER, FRONT

main48811-40030iVG2#,3#196711-198209

48823COVER, STABILIZER LINK(FOR FRONT)

main48823-40010×2iVG20196711-196809

main48823-40011×2iVG2#,30196809-197811

48823ARING, STABILIZER BRACKET COVER

main90562-31053×2iVG2#,30196809-197811

48824BRACKET, STABILIZER, FRONT

main48809-40011×2iVG35197811-198209

main48824-40010×2iVG20196711-196809

main48824-40011×2iVG2#,30196809-197811

48910CYLINDER ASSY, PNEUMATIC, FRONT, RH W/SHOCK ABSORBER

main48910-40015iVG20196711-196909

main48910-40018iVG20196909-197002

main48910-40019iVG20197002-197302

main48910-40020iVG21197303-197701

main48910-40050iVG3#197701-198209

48920CYLINDER ASSY, PNEUMATIC, FRONT, LH W/SHOCK ABSORBER

main48920-40015iVG20196711-196909

main48920-40018iVG20196909-197002

main48920-40019iVG20197002-197302

main48920-40020iVG21197303-197701

main48920-40050iVG3#197701-198209

9017010074

main90170-10074

9111141250

main91111-41250

9111150822

main91111-50822

9111151035

main91111-51035

9116141250

main91161-41250

9116151255

main91161-51255

9411040800

main94110-40800

9411051000

main94110-51000

9411551200

main94115-51200

9412041000

main94120-41000

9412041200

main94120-41200

9412541200

main94125-41200

9451101200

main94511-01200

9451200800

main94512-00800

9451201000

main94512-01000

9451201200

main94512-01200

9461110800

main94611-10800

34 parts on this diagram · 2 diagrams in section
