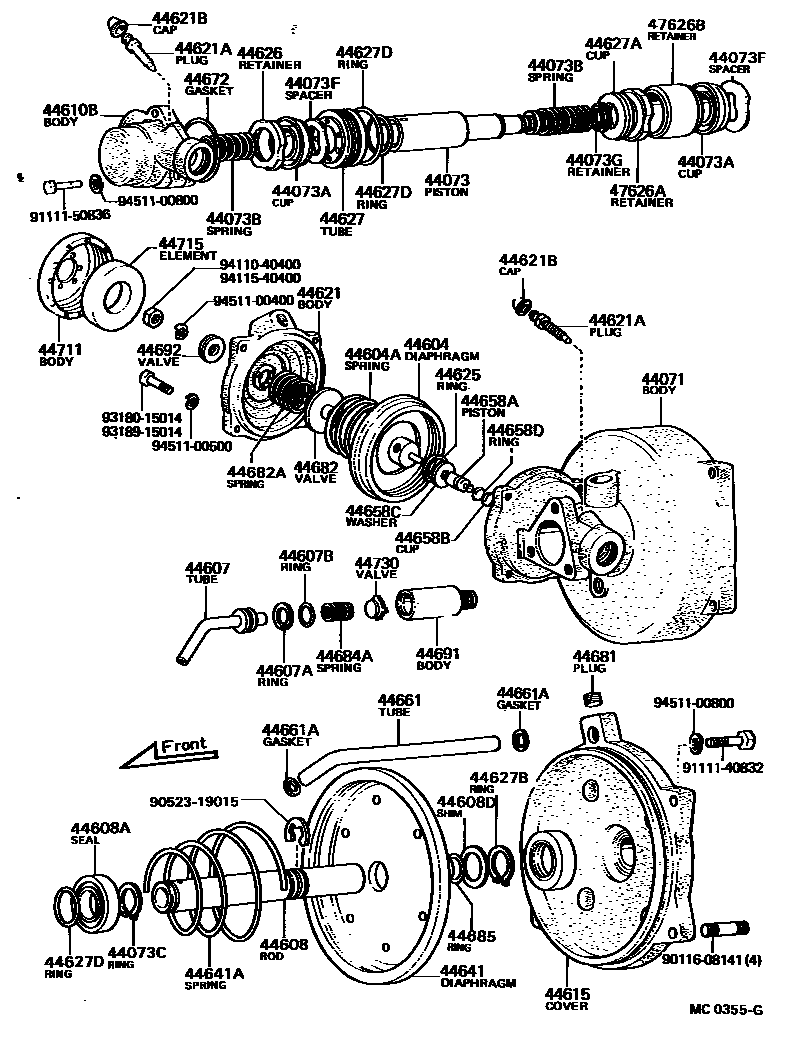

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1

44071BODY SUB-ASSY, BOOSTER

main47211-40030iVG20196711-196805

main47211-40032iVG20196805-196808

main47211-40033iVG20196808-196903

44073PISTON, BOOSTER HYDRAULIC REPLACEMENT

main47204-40020iVG20196711-196805

main47204-40021iVG20196805-196903

44073ACUP, CYLINDER(FOR HYDRAULIC PISTON)

main90947-01072×2iVG20196711-196903

44073BSPRING(FOR HYDRAULIC VALVE)

main90501-16361iVG20196711-196903

FR

main90501-18366iVG20196711-196805

RR

main90501-18450iVG20196805-196903

RR

44073CRING, HOLE SNAP(FOR BOOSTER HYDRAULIC PISTON)

main90520-20095iVG20196711-196903

44073FSPACER, MASTER CYLINDER PISTON CUP

main47242-40030×2iVG20196711-196903

44073GRETAINER, PISTON RETURN SPRING

main47245-40030iVG20196711-196903

44604DIAPHRAGM & PLATE SUB-ASSY, BOOSTER VALVE

main44601-40010iVG20196711-196903

44604ASPRING, COMPRESSION(FOR DIAPHRAGM RETURN)

main90501-14363iVG20196711-196903

44607TUBE SUB-ASSY, CHECK VALVE

main44607-40020iVG20196711-196903

MASTER CYLINDER

main44607-40030iVG20196711-197103

CHECK VALVE

main44607-40031iVG20197103-197302

CHECK VALVE

44607ARING, HOLE SNAP(FOR CHECK VALVE TUBE)

main90521-17027iVG20196903-197104

main96151-01600iVG20197104-197302

44607BRING, O(FOR CHECK VALVE TUBE)

main90301-11079×2iVG20196711-196903

main96720-02011iVG20197104-197302

44608PUSH ROD SUB-ASSY, BOOSTER

main44076-40010iVG20196903-197002

main44606-40010iVG2#,3#197002-198209

main47241-40030iVG20196711-196805

main47241-40031iVG20196805-196903

44608ASEAL, OIL(FOR PUSH ROD DUST)

main90310-22025×2iVG20196711-196903

44608DSHIM(FOR BOOSTER PUSH ROD)

main90564-22123×2iVG20196805-196903

T=0.1

main90564-22124×2iVG20196805-196903

T=0.3

44610BOOSTER ASSY, BRAKE

main44610-40010iVG20196903-196912

main44610-40011iVG20197002-197005

main44610-40012iVG20196912-197002

main44610-40043iVG20197005-197302

main44610-40050iVG21,30197303-197811

main44610-40060iVG35197811-198209

44610BBODY, HYDRAULIC CYLINDER

main47213-40020iVG20196711-196903

44615COVER, BOOSTER SHELL

main44612-40020iVG20196711-196903

main44612-40030iVG35197811-198209

44621BODY, BOOSTER VALVE

main44652-40020iVG20196711-196903

44621APLUG, BLEEDER(FOR BOOSTER VALVE BODY)

main47547-40010×2iVG20196711-196903

44621BCAP, BLEEDER PLUG(FOR BRAKE BOOSTER)

main47548-20010×2iVG20196711-196903

44625RING, BOOSTER STOP WASHER SNAP

main44625-36020iVG20196711-196903

44626RETAINER, BOOSTER ROD CUP

main47249-40010iVG20196711-196903

44627TUBE, BOOSTER CYLINDER

main47216-40010iVG20196711-196903

44627ACUP, CYLINDER(FOR BOOSTER ROD)

main90947-01073iVG20196711-196903

44627BRING, HOLE SNAP(FOR ROD CUP RETAINER)

main90520-21094iVG20196711-196903

main96150-01600iVG2#,30196903-197811

44627DRING, O(FOR BOOSTER CYLINDER TUBE)

main90301-21118×2iVG20196711-196903

ID=21.8

main90301-38119iVG20196711-196903

ID=38.5

44641DIAPHRAGM, BOOSTER

main44075-40020iVG20196711-196903

main44641-40030iVG20196903-197302

44641ASPRING, COMPRESSION(FOR RETURN)

main90502-35024iVG20196711-196903

44658APISTON, CONTROL VALVE

main44657-40020iVG20196711-196805

main44657-40021iVG20196805-196811

main44657-40022iVG20196811-196903

44658BCUP, CYLINDER(FOR BOOSTER CONTROL VALVE)

main44674-36020iVG20196805-196903

main90947-01074iVG20196711-196805

44658CWASHER, BOOSTER PISTON STOP

main44626-36020iVG20196711-196903

44658DRING, O(FOR BOOSTER CONTROL VALVE)

main90301-05116iVG20196711-196805

main90301-06147iVG20196805-196903

44661TUBE, BOOSTER VACUUM

main44666-40010iVG20196711-196903

44661AGASKET OR RING, O(FOR BOOSTER VACUUM TUBE)

main96720-01010×2iVG20196711-196903

44672GASKET, BOOSTER OR RING, O

main90301-41117iVG20196711-196903

44681PLUG, BOOSTER

main90344-51010iVG20196711-196903

44682VALVE, BOOSTER VACUUM

main44603-40010iVG20196711-196805

main44603-40011iVG20196805-196903

44682ASPRING, COMPRESSION(FOR VACUUM VALVE)

main90501-08362iVG20196711-196903

44684ASPRING, BOOSTER CHECK VALVE

main90501-03367iVG20196711-196903

44685RING, O OR GROMMET(FOR BOOSTER PISTON ROD END)

main96720-02018iVG20196711-196903

44691BODY, CHECK VALVE

main44691-40010iVG20196711-196903

44692VALVE, BOOSTER AIR

main44692-36020iVG20196711-196903

44711BODY, AIR CLEANER(FOR BOOSTER)

main44671-22010iVG21,30197303-197811

main44711-22010iVG20196903-197302

main44712-40010iVG20196711-196903

44715ELEMENT, AIR CLEANER(FOR BOOSTER)

main44715-20020iVG20196711-196903

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44693-40010iVG20196711-196903

BOOSTER SIDE

main44730-20010iVG35197811-198209

RESERVOIR TO MANIFOLD

main44730-40010iVG20196711-197103

RESERVOIR SIDE

main44730-40011iVG20197103-197302

main44730-40020iVG21197303-197505

main44730-40030iVG21,30197505-197811

main44730-60040iVG35197811-198209

PUMP TO RESERVOIR

47626ARETAINER, MASTER CYLINDER PISTON CUP, NO.1

main47248-40010iVG20196711-196903

47626BRETAINER, MASTER CYLINDER PISTON CUP, NO.2

main47243-40020iVG20196711-196903

9011608141

main90116-08141

9052319015

main90523-19015

9111140832

main91111-40832

9111150836

main91111-50836

9318015014

main93180-15014

9318915014

main93189-15014

9411040400

main94110-40400

9411540400

main94115-40400

9451100400

main94511-00400

9451100500

main94511-00500

9451100800

main94511-00800

59 parts on this diagram · 7 diagrams in section
